44

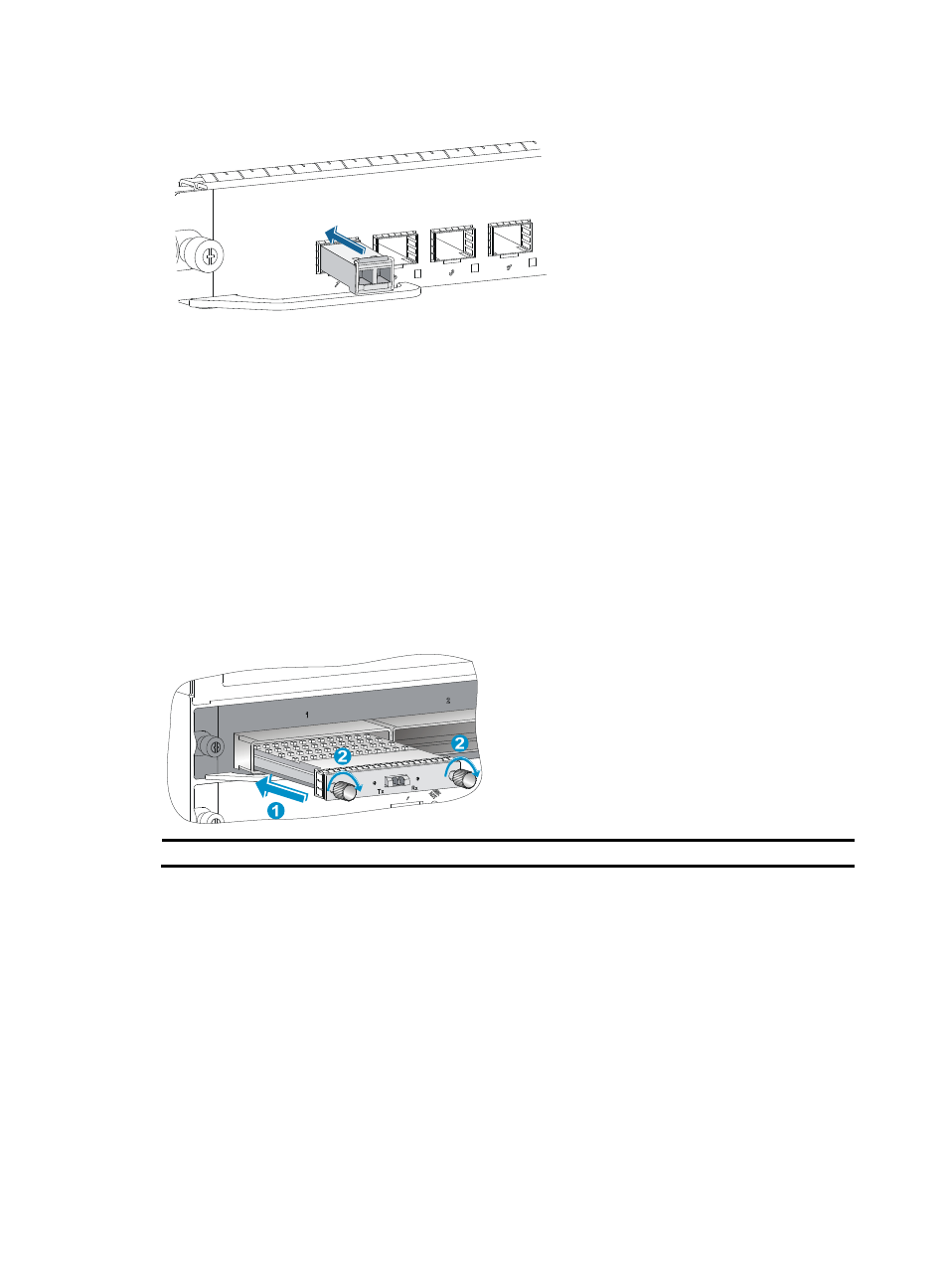

Figure 37 Installing an XFP/SFP+/SFP/QSFP+ module
Installing a CFP module
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. For
more information, see "
Attaching an ESD wrist strap ."
2. Unpack the CFP module. Do not touch the golden plating of the module.
3. Holding both sides of the module, gently push the module into the slot until it has firm contact with
the slot. See
Figure 38 .
4. Fasten the captive screws.
5. Connect the fiber to the module. For the installation procedure, see "Connecting your switch to the
network ."
Figure 38 Installing a CFP module
(1) Gently push the module into the slot (2) Fasten the captive screws
Connecting an SFP+/QSFP+/QSFP+ to SFP+ DAC cable
Use SFP+ DAC cables to connect SFP+ ports, QSFP+ DAC cables to connect QSFP+ ports, and QSFP+
to SFP+ DAC cables to connect QSFP+ and SFP+ ports. All these cables are hot swappable.
To connect an SFP+, QSFP+, or QSFP+ to SFP+ DAC cable:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. For
more information, see "
Attaching an ESD wrist strap ."
2. Unpack the cable.
3. Connect the cable connector to the port. Make sure the cable connector is the right side up.
The bend radius of the cable must be a minimum of eight times the cable diameter.
