Troubleshooting, No generator a or generator b led indication, Cannot control module – Ensemble Designs 9400 3G Test Signal and Sync Pulse Generator User Manual

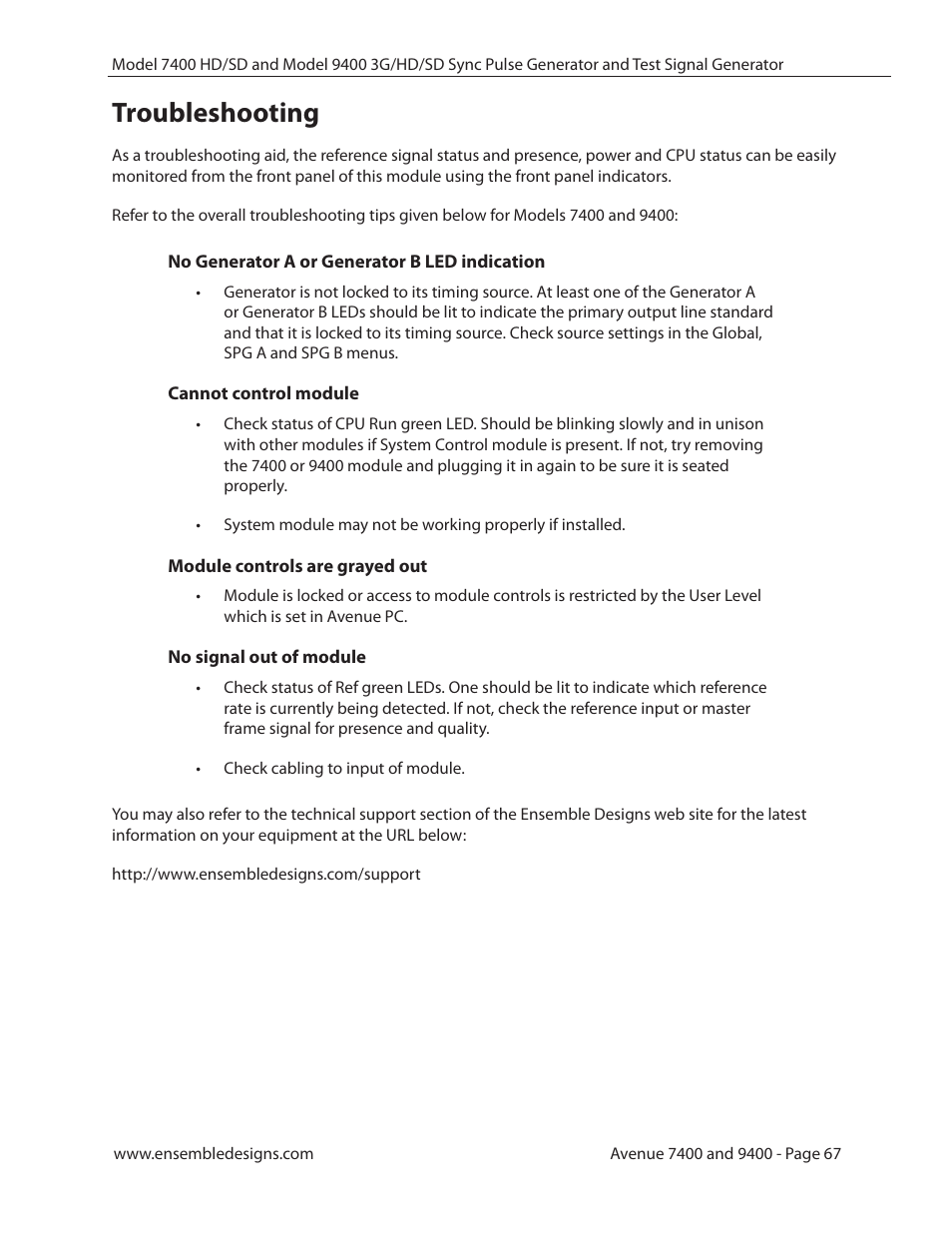

Page 67: Module controls are grayed out, No signal out of module, Troubleshooting 67
