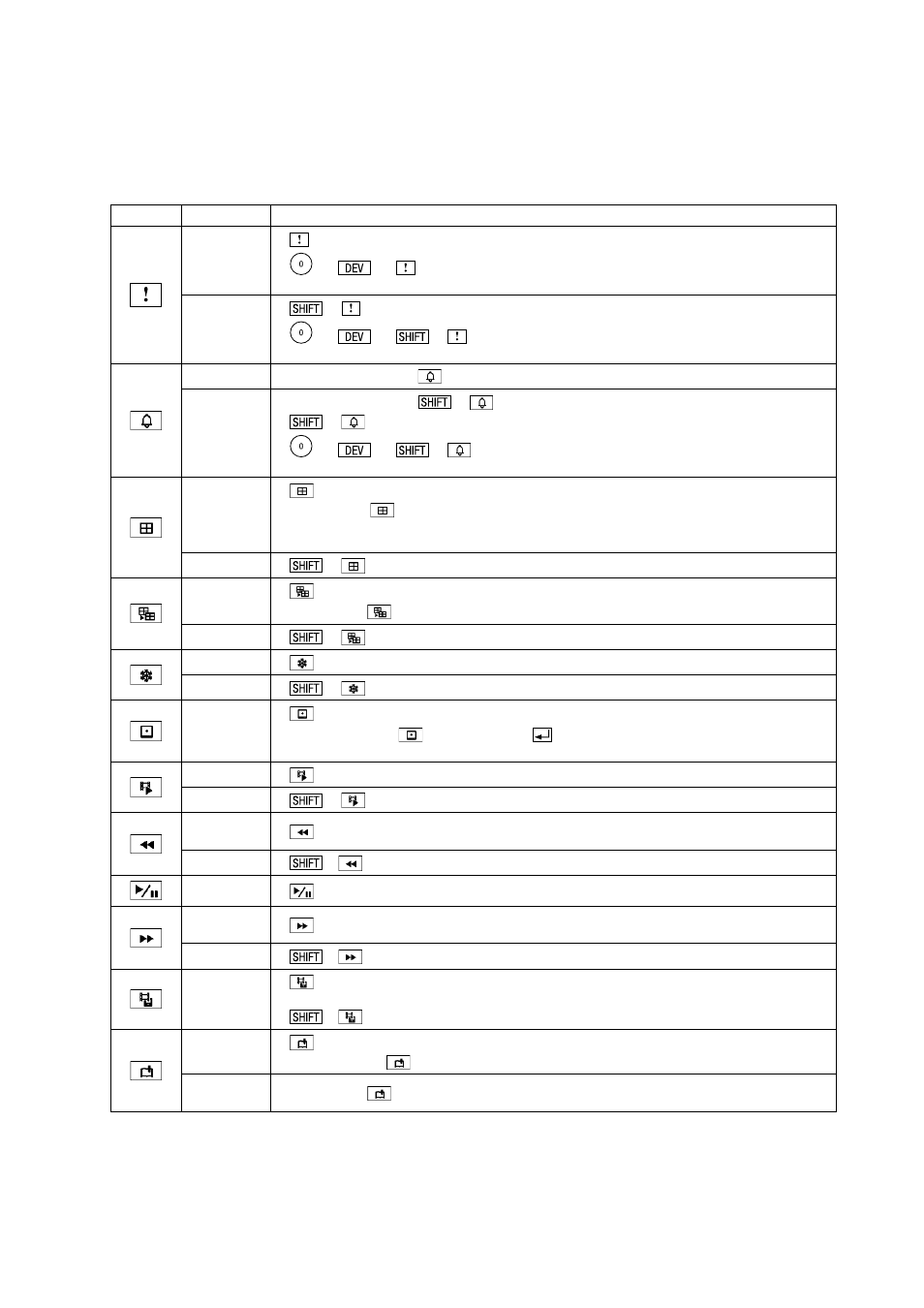

Device Control
NOTE: The buttons work only when the device to control is selected and each function of the buttons is supported in the device.
Refer to the device’s User’s Manual for details of each feature.
Button
Designation
Operation
Panic Recording
On
•
: Starts panic recording of all camera channels of the device.
•
–>
–>
: Starts panic recording of all camera channels of all devices registered on the network
keyboard.
Panic Recording
Off
•
&
: Stops panic recording of all camera channels of the device.
•
–>
–>
&
: Stops panic recording of all camera channels of all devices registered on
the network keyboard.
Alarm Out On
• ‘Alarm-out device No.’ –>
: Activates the alarm out of the selected alarm-out channel.
Alarm Out Off
• ‘Alarm-out device No.’ –>
&
: Deactivates alarm out of the selected alarm-out channel.
•
&
: Deactivates alarm out of all alarm-out channels of the device.
•
–>
–>
&
:Deactivates alarm out of all alarm-out channels of all devices registered
on the network keyboard.
Display
•
: Pressing the button repeatedly changes the screen layout according to the device’s setting.
• ‘Layout No.’ –>
: Displays video in the selected screen layout (No. : full, No. : x, No. 3: 3+3, No. 4: 3x3,
No. 5: +8, No. 6: +, No. 7: 4x4, No. 8: PIP, No. 9: +5 and No. 0: +).
When controlling a MMX, the layout number preset in the MMX is used.
Cameo
•
&
: Enters the cameo mode.
Group
•
: Moves to the next camera group.
• ‘Group No.’ –>
: Changes the screen to the selected camera group.
Sequence
•
&
: Performs sequence monitoring.
Freeze
•
: Freezes the current live images on the screen.
Zoom
•
&
: Zooms in the current live images on the screen.
Spot
•
: Displays the spot menu.
• ‘Spot monitor No.’ –>
–> ‘Camera No.’ –>
: Displays video from the selected camera on the selected
spot monitor.
Search
•
: Searches video recorded in the device.
Triplex
•
&
: Enters the triplex mode.
Fast Backward
Play
•
: Plays video backward at high speed in the playback mode.
Backward Step
•
&
: Plays video backward image-by-image in the playback mode.
Play, Pause
•
: Plays back video. Pressing the button while playing back video pauses the video.
Fast Forward
Play
•
: Plays video forward at high speed in the playback mode.
Forward Step
•
&
: Plays video forward image-by-image in the playback mode.
Clip Copy
•
: Performs the one-touch clip copy when in the live monitoring mode and general clip copy when in the
playback mode.
•
&
: Performs the A-B (section) clip copy when in the playback mode.
Bookmark
•
: Adds the current playback point to the bookmark list.
• ‘Bookmark No.’ –>
: Moves to the selected bookmark point.
Group
Monitoring
• ‘Group No.’ –>
: Displays video from the selected camera group.
