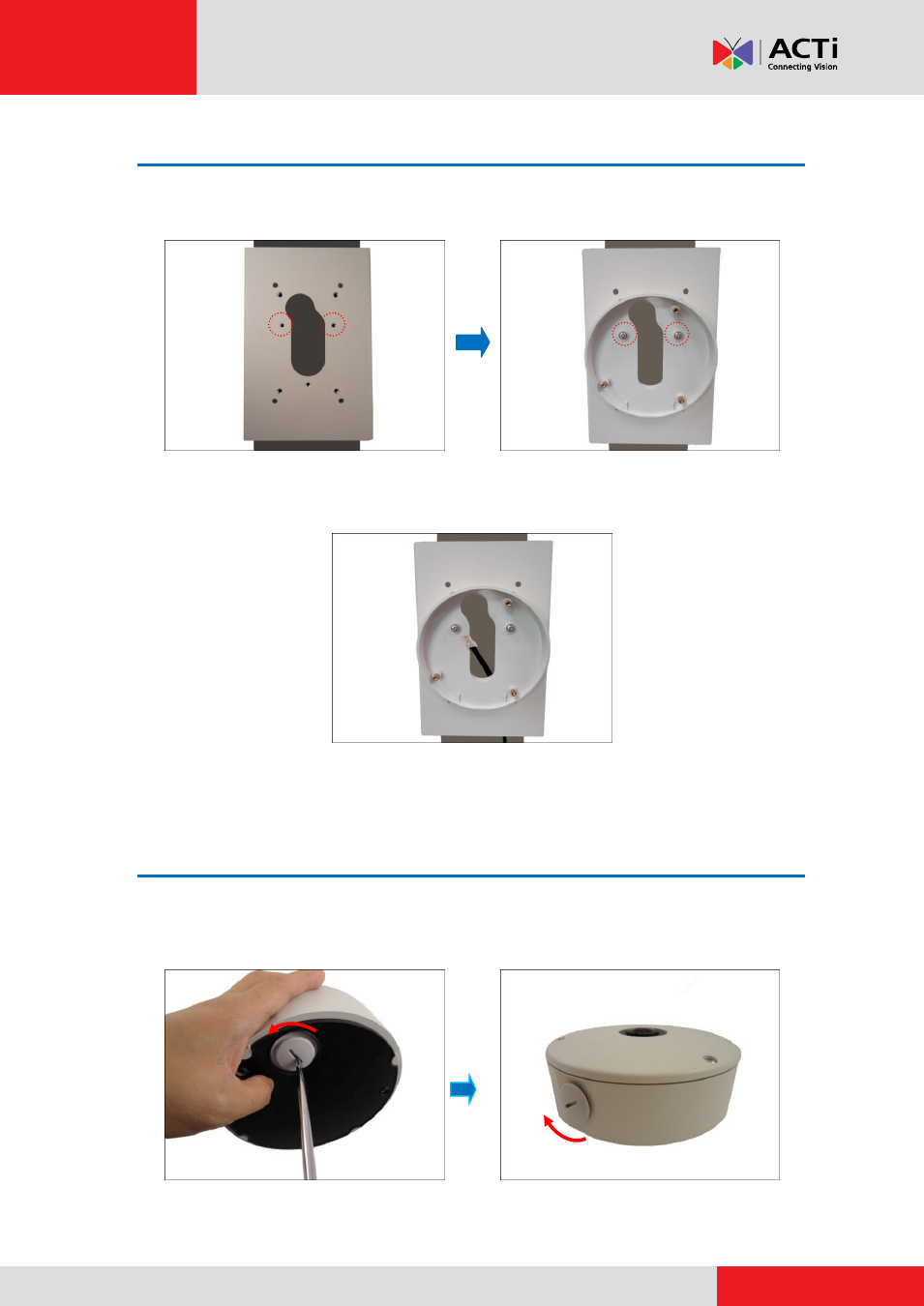

Step 2: Attach the Tilted Mount
1. Attach two (2) screws (included in the pole mount package) to secure the tilted mount to the
pole mount.
2. From the network side, route the Ethernet cable along the pole to pass through the hole on
pole mount and tilted mount.
Step 3: Prepare for Waterproof Installation
1. Remove the cap covering the bottom hole of the camera, and attach the cap to the side hole
to close it. The network cable will pass through the bottom hole.
