Installation procedures using flex conduit, Step 1: attach the pole mount kit, Installation using flexible conduit – ACTi Outdoor Hemispheric / Fisheye Dome on Vertical Pole with Tilted Mount (PMAX-0310) User Manual
Page 12
Installation Guide
Installation Procedures using Flex
Conduit
This section provides step-by-step procedures in installing the camera on a vertical pole using
the tilted mount and how to waterproof the cabling connection using a flexible conduit. with 3/8”
trade size (not supplied). This is the recommended solution when connecting an external power
adaptor, audio in/out, or digital input/output (DI/DO) devices to the camera.
Before installation, prepare the following tools and accessories which are not included in the
camera package, thus must be purchased separately:
Pole Mount with Surface Mount (SMAX-0136)
Flexible Conduit (Trade size = 1/2”)
Ethernet Cable

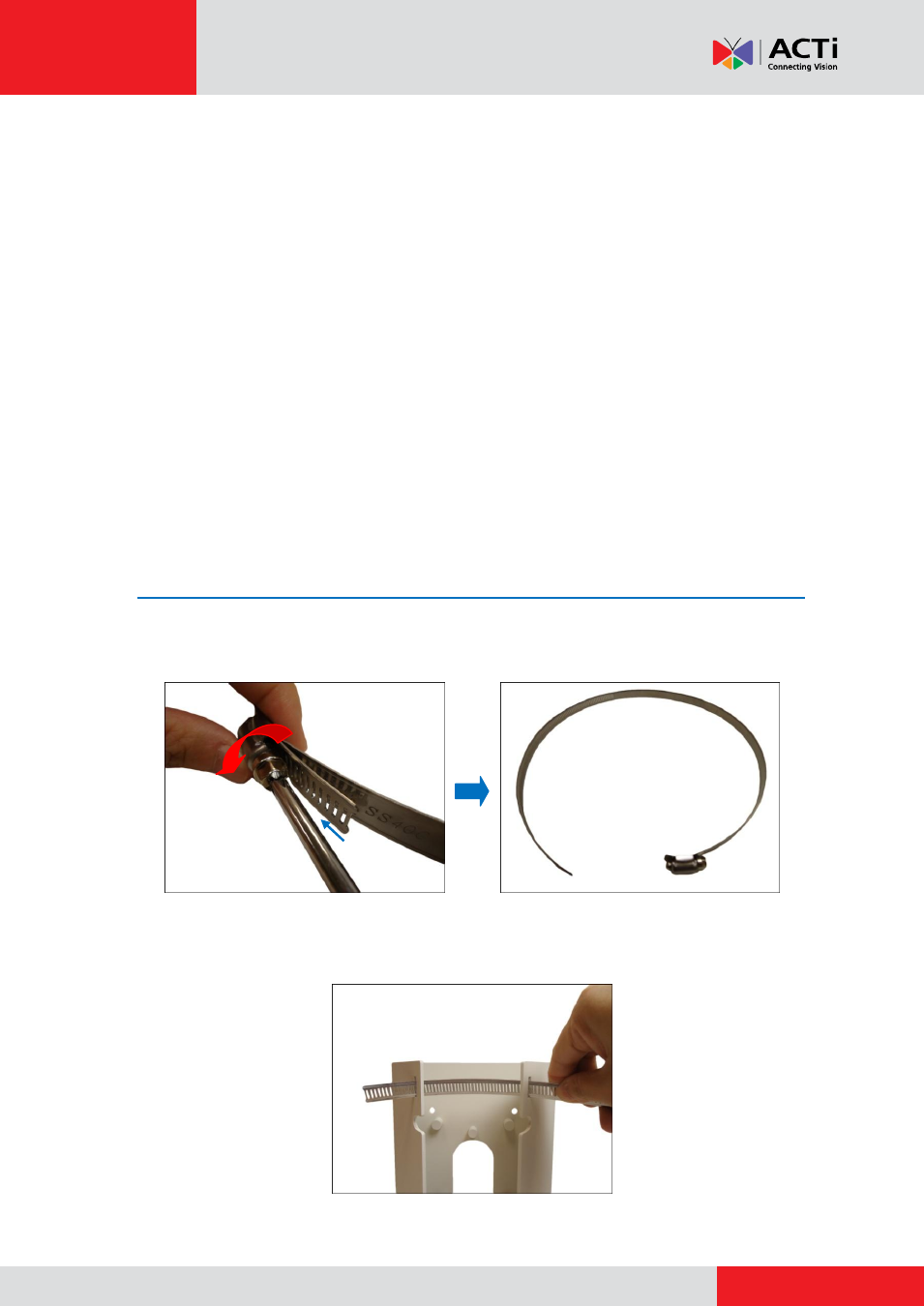

Step 1: Attach the Pole Mount Kit
1.
Using a screwdriver, turn the screw head of the wire strap counter-clockwise continuously
until the two ends are detached.
2.
Insert the wire strap through the strap holes of the pole mount.
