ACTi Outdoor Hemispheric / Fisheye Dome on Vertical Pole with Tilted Mount (PMAX-0310) User Manual
Page 18
Installation Guide

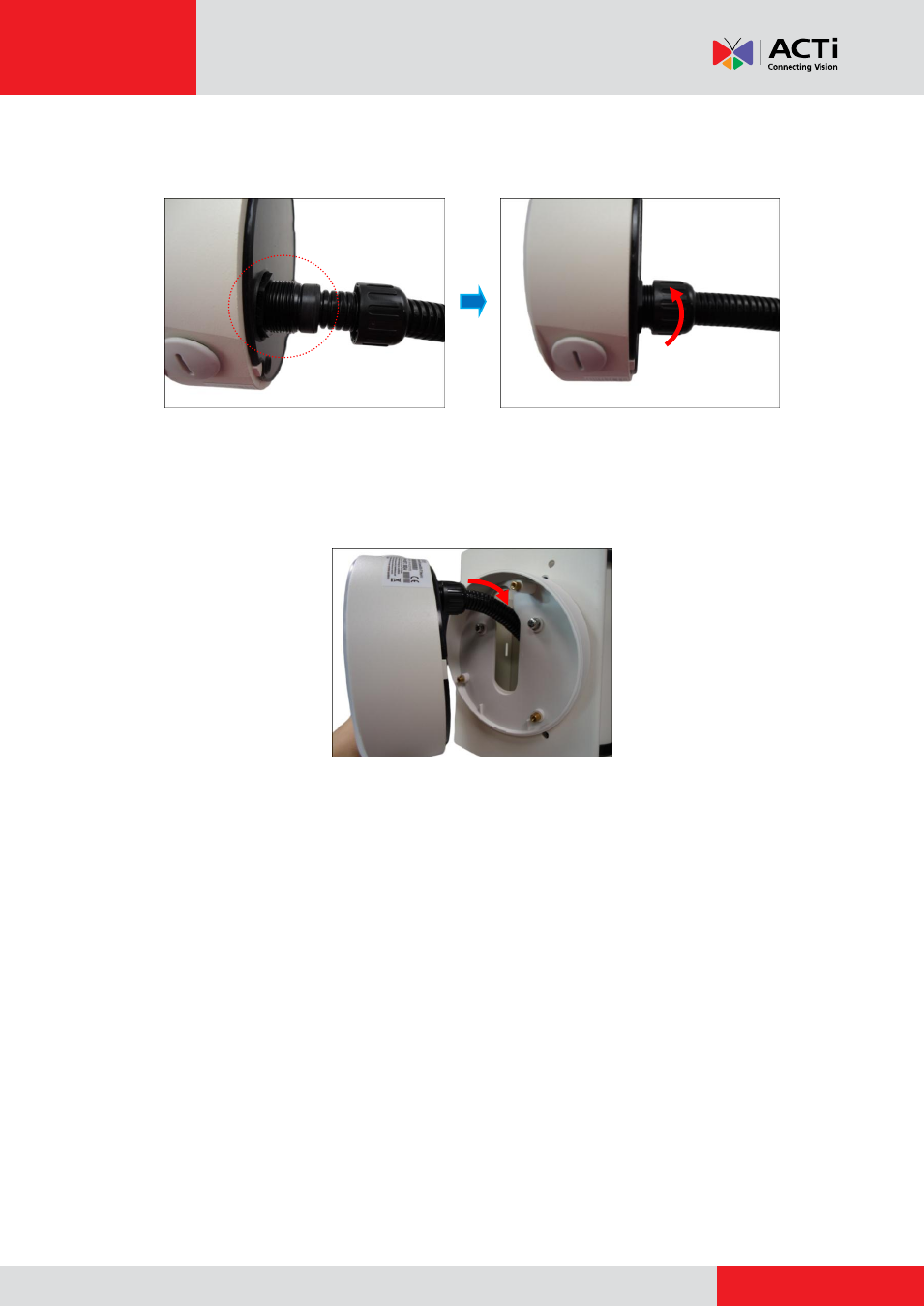

10.
Insert the sealing rubber into the conduit gland body and attach the clamping nut to complete
the cable solution.
NOTE:
Make sure the clamping nut is tightly attached to the conduit gland body.
11.
Align the camera to the tilted mount as the flex conduit is pushed through the cable hole of
the tilted mount and pole mount.
