ACTi Outdoor Hemispheric / Fisheye Dome on Vertical Pole with Tilted Mount (PMAX-0310) User Manual
Page 16
Installation Guide

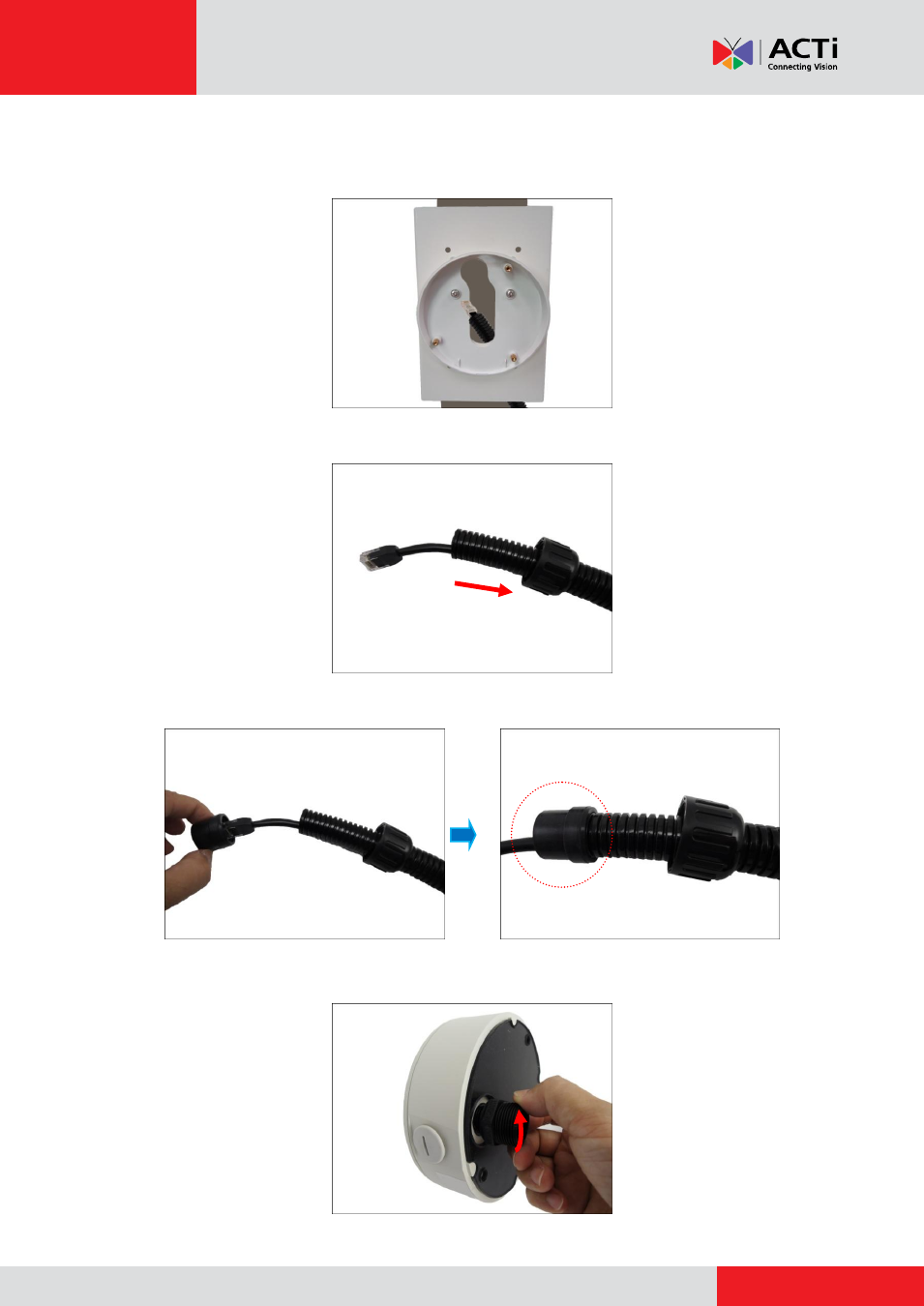

3.
From the network side, route the flex conduit to pass through the pole mount and tilted
mount.
4.
Insert the clamping nut through the flex conduit.
5.
Insert the sealing rubber and attach it at the end of the flex conduit.
6.
Attach the conduit gland body to the hole of the camera.
