ACTi Outdoor Hemispheric / Fisheye Dome on Vertical Pole with Tilted Mount (PMAX-0310) User Manual
Page 5

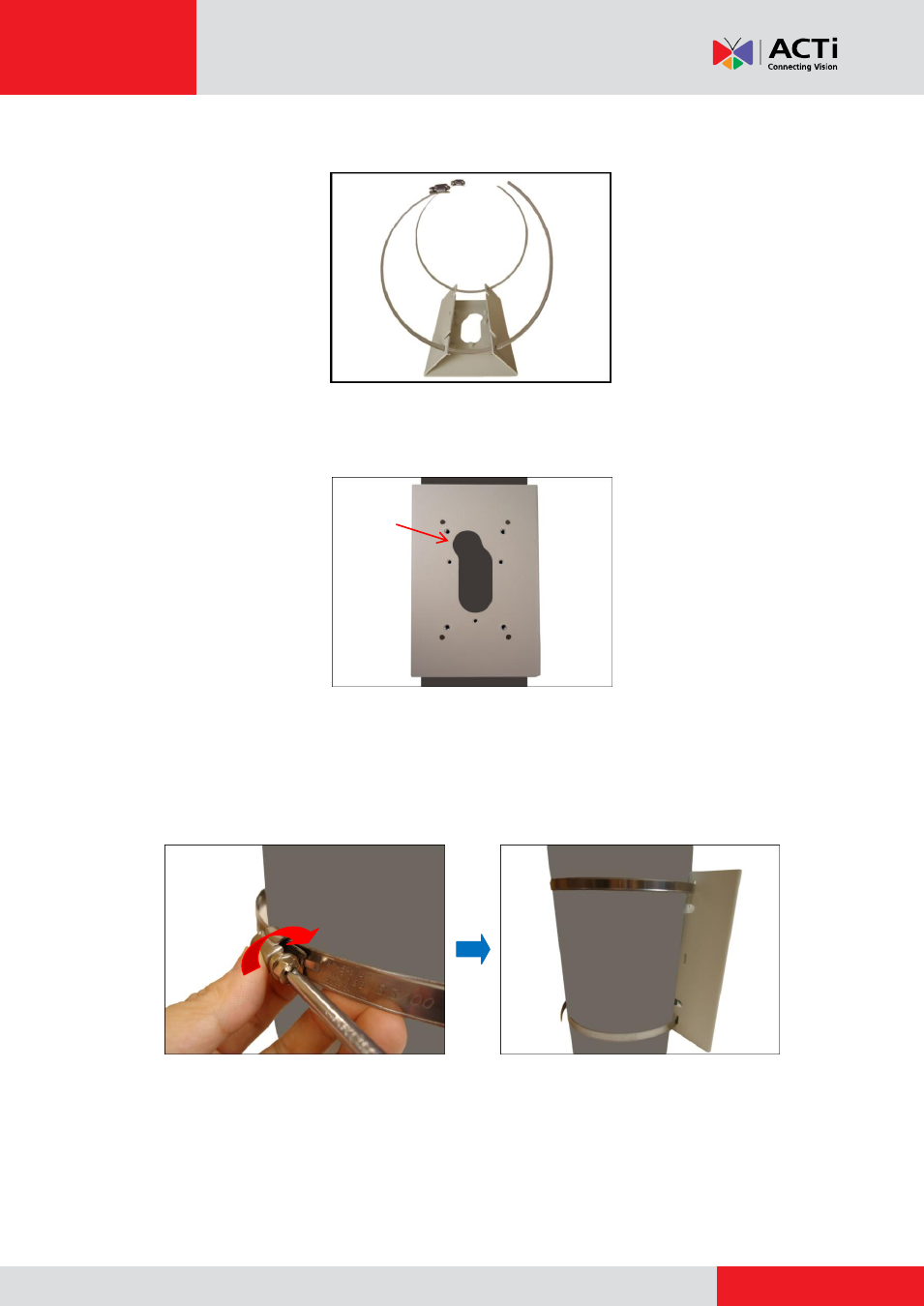

Installation Guide
3.
Do steps 1 and 2 to the other wire strap.
4.
Position the pole mount with the cable path up and encircle the pole with the wire straps.
NOTE:
The wire straps can hold between 134 ~ 228 mm (5.28 ~ 9 in.) pole diameter.
5.
Continuously turn the screw head clockwise to adjust the wire strap until it snugly fits the pole.
Do the same to the other wire strap.
This side up
