Mounting Solutions
The camera can be mounted on a vertical pole with the camera facing forward using the Pole
Mount with Surface Mount (SMAX-0136). With this accessory combination, the camera faces
forward with a 10 tilt.

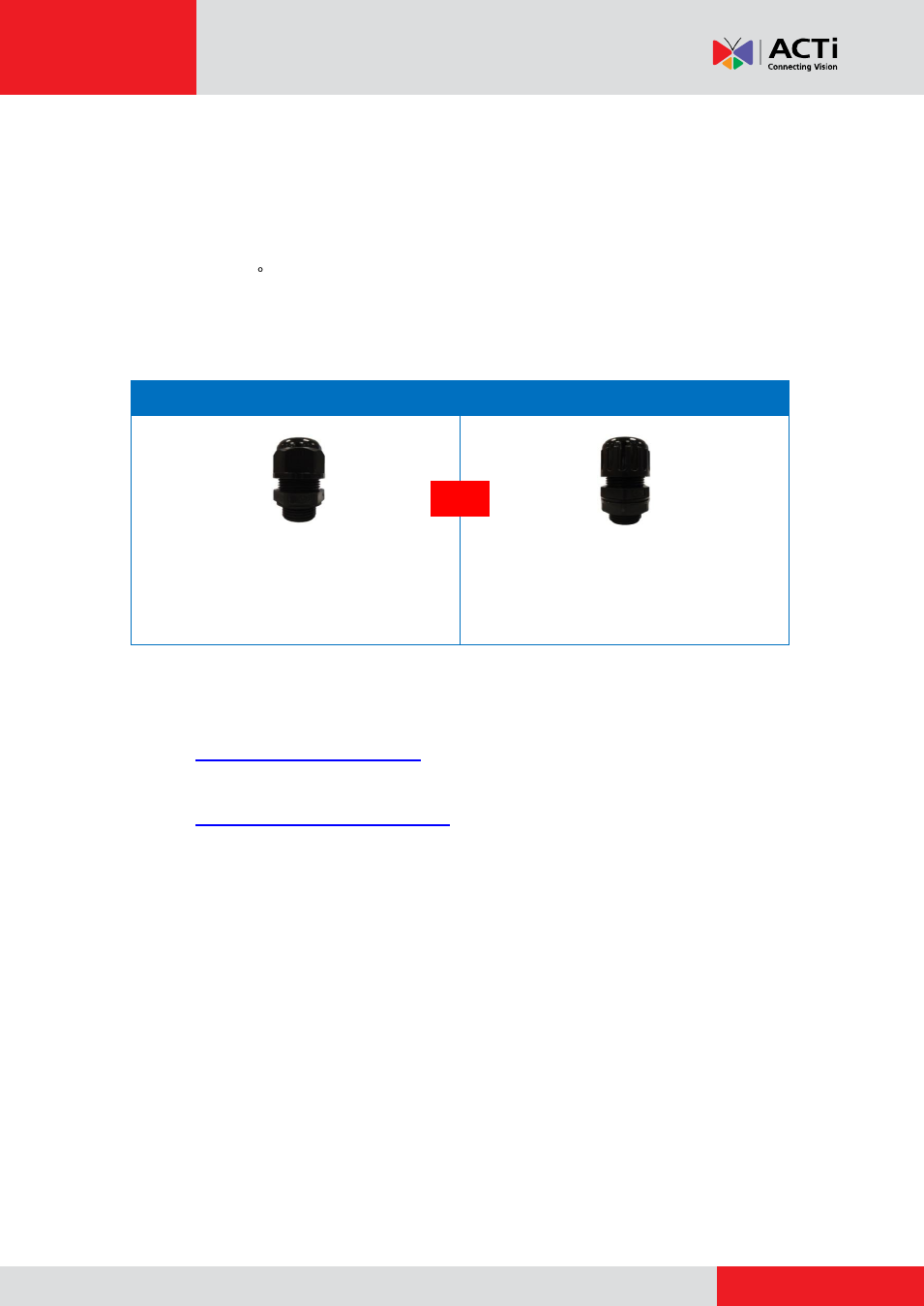

The camera comes with two (2) glands used for waterproof installation: Cable gland and Conduit
Gland.
Cable Gland Conduit Gland
For use with an EXTERIOR-GRADE
Ethernet cable. Exterior-grade Ethernet
cables are already waterproof.
For use with 3/8” flexible conduit.
Recommended when an exterior-grade
Ethernet cable is not available or when other
input/output devices or an external power
adaptor will be connected to the camera.
Determine the type of waterproof solution that is applicable to your installation requirements and
prepare the necessary accessories or purchase extra materials.

Installation using Naked Cable : This installation uses the supplied cable gland and an
exterior-grade Ethernet cable (not supplied).

Installation Using Flexible Conduit : This installation uses the supplied conduit gland
and a 3/8” flexible conduit (not supplied). This is the recommended solution if other
input / output devices or an external power adaptor will be connected to the camera.
