Installation Procedures using Naked
Cable
This section provides step-by-step procedures in installing the camera on a vertical pole using
the tilted mount and how to waterproof the cabling connection using a naked Ethernet cable.
Before installation, prepare the following tools and accessories which are not included in the
camera package, thus must be purchased separately:

Pole Mount with Surface Mount (SMAX-0136)

Exterior-grade Ethernet Cable
Step 1: Attach the Pole Mount Kit

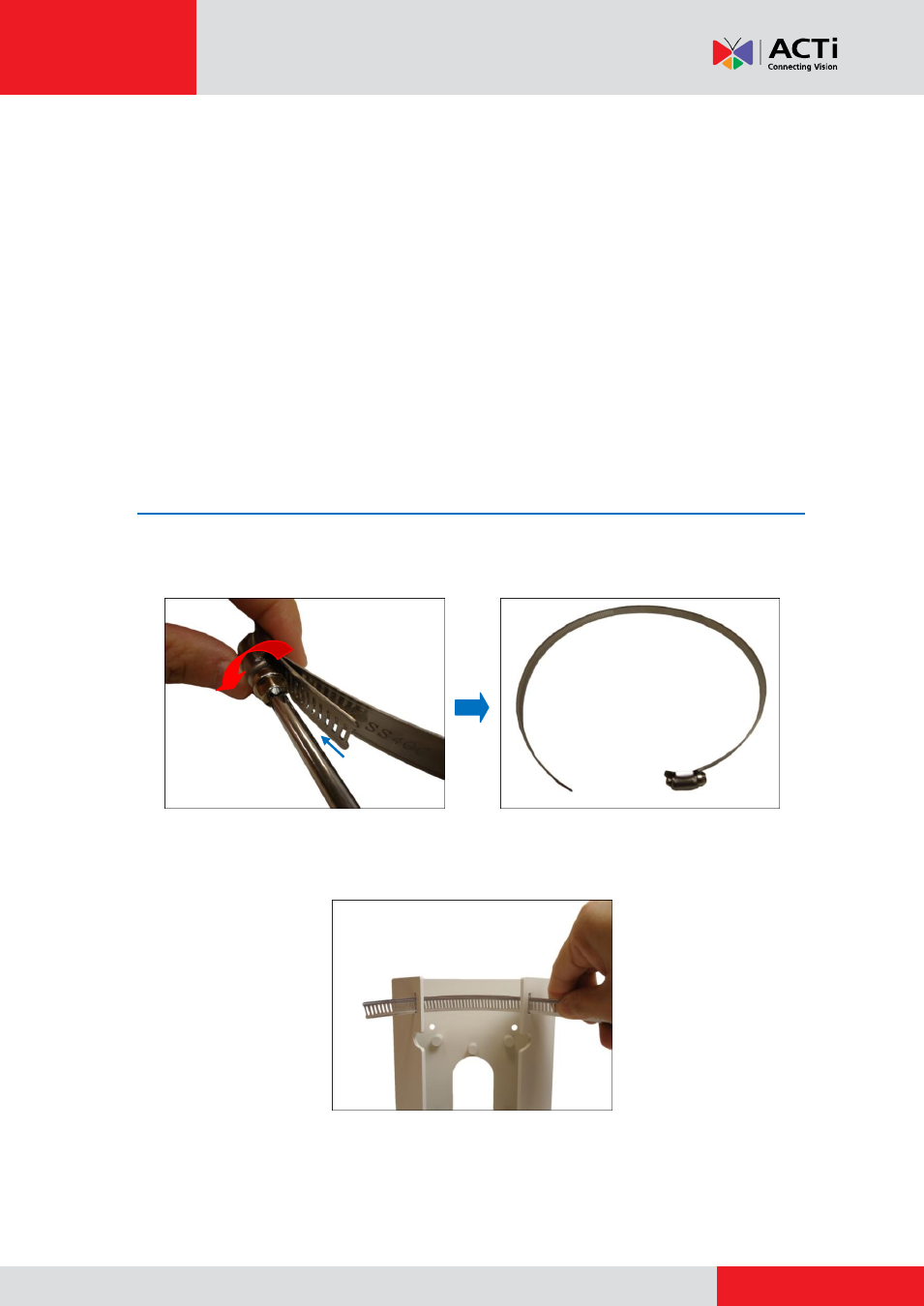

1. Using a screwdriver, turn the screw head of the wire strap counter-clockwise continuously
until the two ends are detached.
2. Insert the wire strap through the strap holes of the pole mount.
