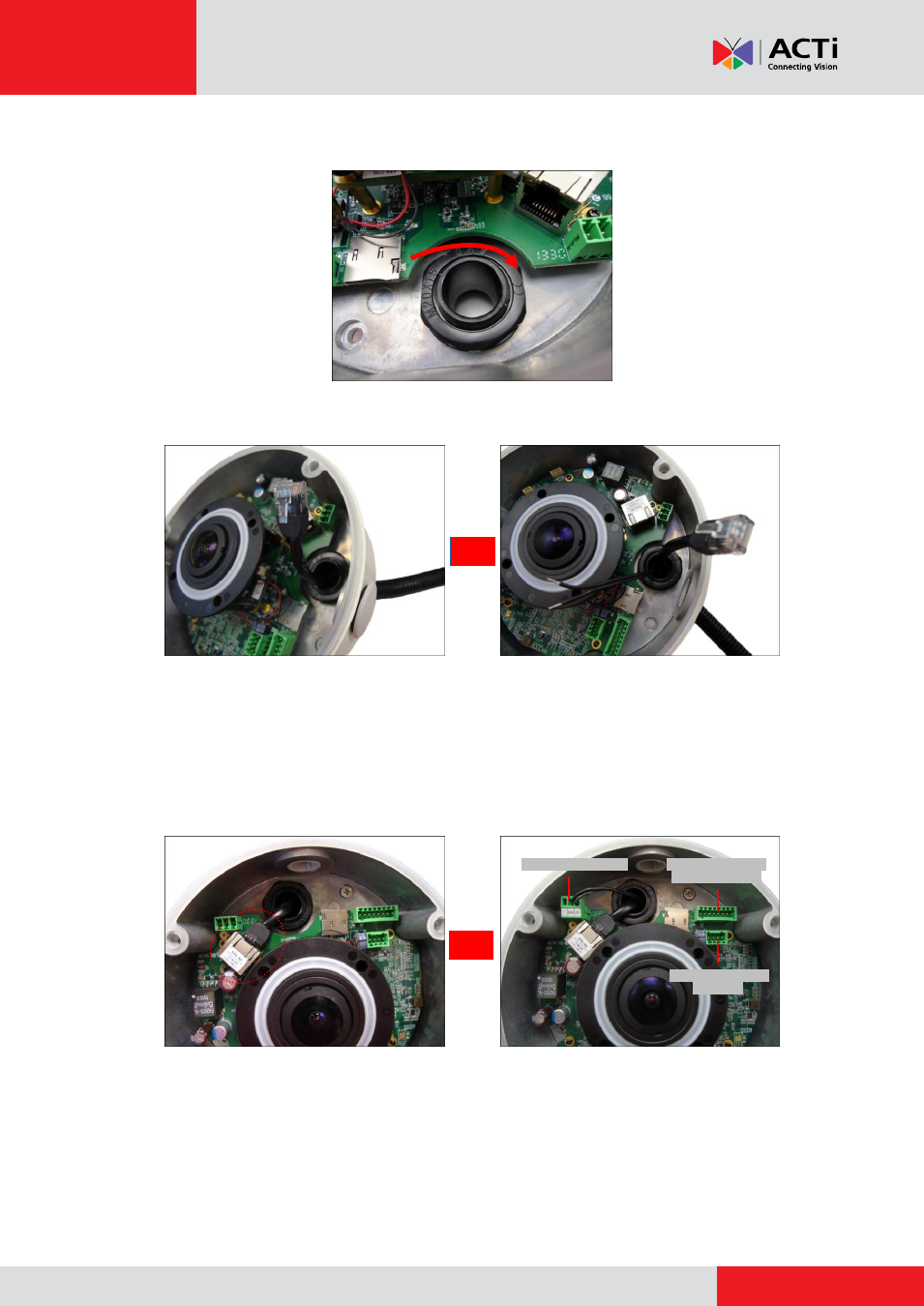

7. Attach the lock nut to secure the conduit gland body to the camera.
8. Insert the Ethernet cable and other cables (if any) through the conduit gland body.
Ethernet Only Ethernet and External Power Adaptor Cable
9. Connect the Ethernet cable to the Ethernet port of the camera. If connecting other cables,
such as an external power adaptor, audio in/out or DI/DO devices, connect the terminal
blocks at this point and connect them to the corresponding connectors of the camera (see
Appendices on page 20 for more information).
or
12V Power Connector Digital Input / Output
(DI/DO) Connector
Audio Input / Output
Connector
or
