2. Cannot change units with cutter radius comp
3. Cannot turn cutter radius comp on out of XY-plane
4. Cannot turn cutter radius comp on when already on
5. Cannot use G28 or G30 with cutter radius comp
6. Cannot use G53 with cutter radius comp
7. Cannot use XZ plane with cutter radius comp
8. Cannot use YZ plane with cutter radius comp
9. Concave corner with cutter radius comp
10. Cutter gouging with cutter radius comp
11. D word on line with no cutter comp on (G41 or G42) command
12. Tool radius index too big
13. Tool radius not less than arc radius with cutter
radius comp
14. Two G codes used from same modal group.
For some of these messages additional explanation is given below.
Changing a tool while cutter radius compensation is on is not treated as an
error, although it is unlikely this would be done intentionally. The radius used
when cutter radius compensation was first turned on will continue to be used
until compensation is turned off, even though a new tool is actually being used.
When cutter
radius compensa-
tion is on, it must
be physically
possible for a cir-
cle whose radius
is the half the
SmithyCNC Programmer’s Reference Manual: Tool File & Compensation
SmithyCNC Programmer’s Reference Manual: Tool File and Compensation 9-10

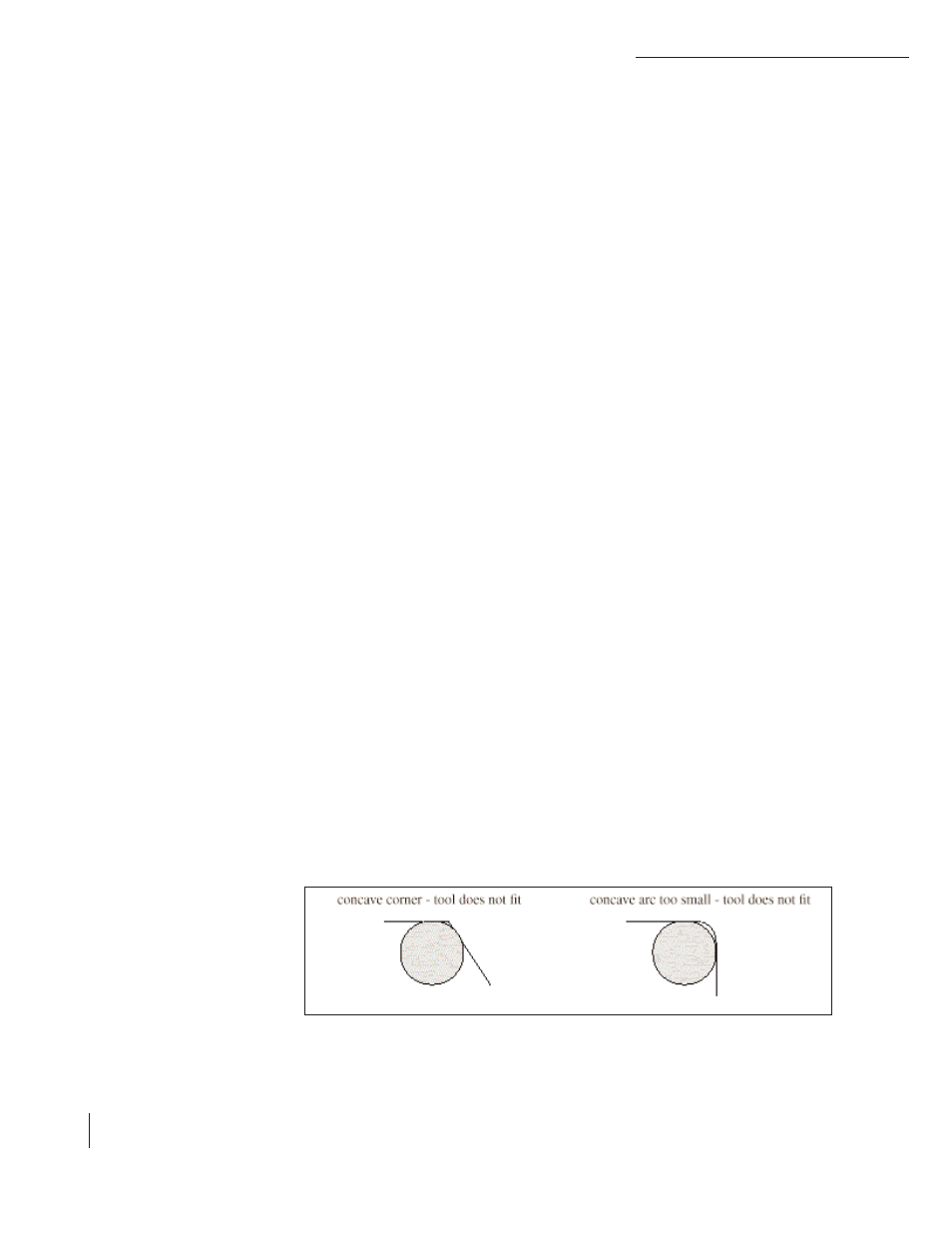

Figure 9-3 Two Cutter Radius Compensation Errors
