2

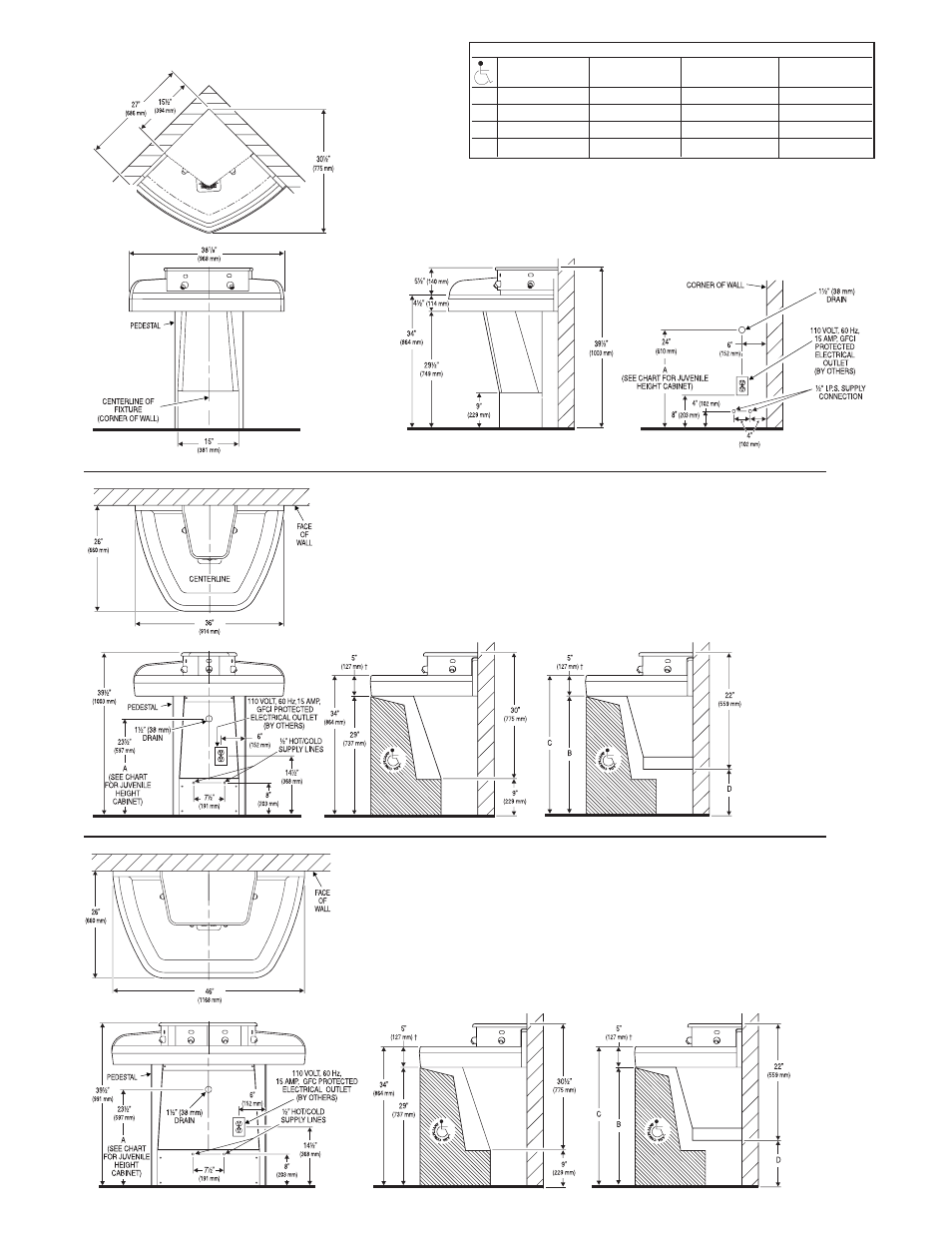

LAVATORY SYSTEM ROUGH-IN
Triple Station Lavatory System
MODEL EWF-43000 — 0.5 gpm (1.9 Lpm) Max. — Aerator
SINK WEIGHT (Empty) — 140 Lbs. (63 Kg)
Standard Height Cabinet Juvenile Height Cabinet
Standard Height Cabinet Juvenile Height Cabinet
Quadruple Station Lavatory System
MODEL EWF-44000 — 0.5 gpm (1.9 Lpm) Max. — Aerator
SINK WEIGHT (Empty) — 170 Lbs. (77 Kg)
Double Station Corner Lavatory System
MODEL EWF-42000 — 0.5 gpm (1.9 Lpm) Max. — Aerator
SINK WEIGHT (Empty) — 120 Lbs. (54 Kg)
VARIABLE MOUNTING HEIGHT CHART — ALL MODELS
DIMENSION T.A.S. T.A.S. A.D.A.
DESCRIPTION AGES 4-10 AGES 11-15 STANDARD
A ROUGH-IN 20½” (521 mm) 22½” (572 mm) 24” (610 mm)
B KNEE CLEARANCE 26” (660 mm) 28” (711 mm) 29½ (749 mm)
C RIM HEIGHT 30” (762 mm) 32” (813 mm) 33½” (851 mm)
D TOE CLEARANCE 13½” (343 mm) 15½” (394 mm) 17” (432 mm)
