4 - INSTALL FLUSHOMETER AND TRIPLE SEAL HANDLE ASSEMBLY
5 - FLUSH OUT SUPPLY LINE
6 - ADJUST CONTROL STOP AND INSTALL VANDAL RESISTANT STOP CAP

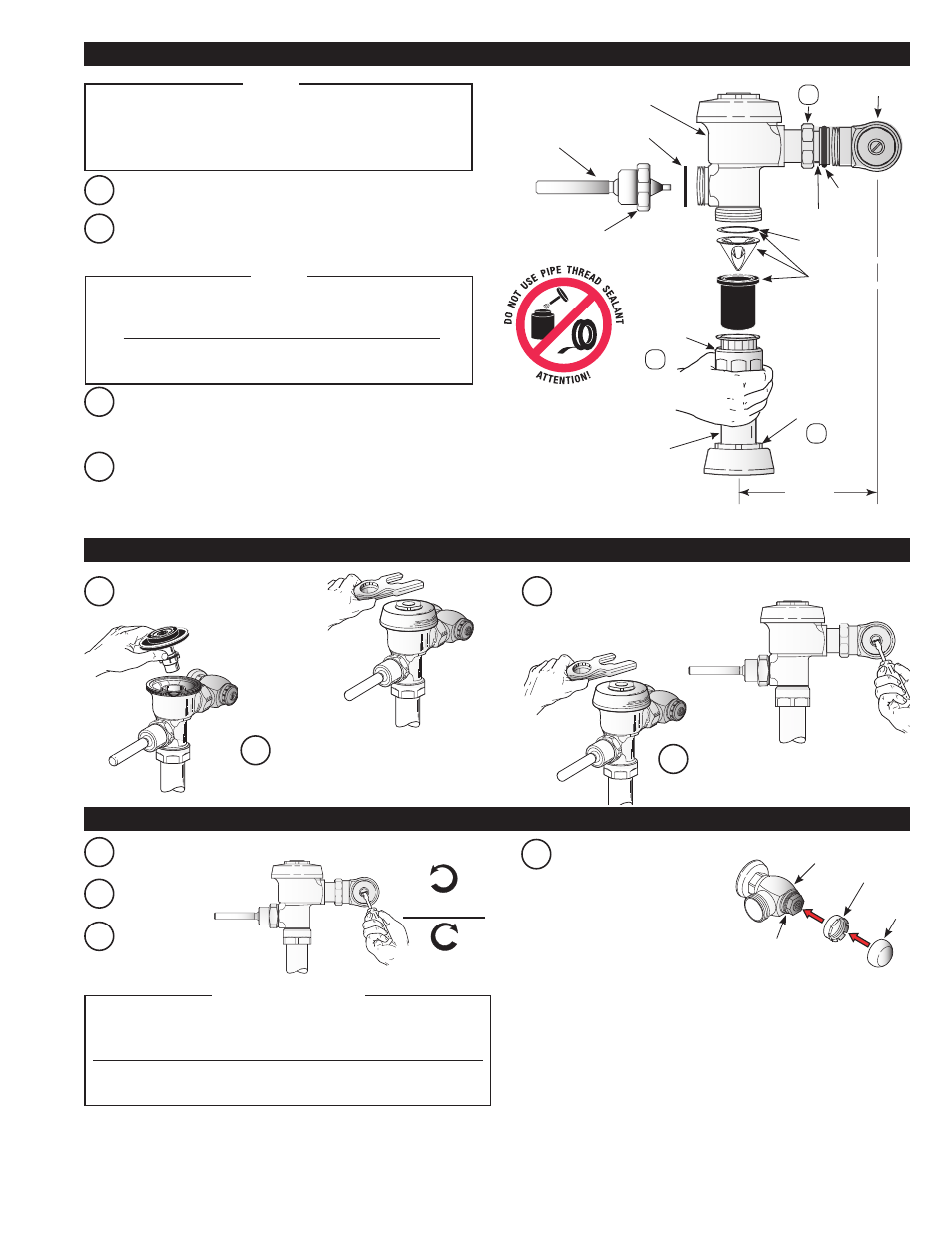

C Align Flushometer Body and securely tighten first the Tailpiece
Coupling (1), then the Vacuum Breaker Coupling (2), and finally
the Spud Coupling (3). Use a wrench to tighten these couplings in
the order shown.
B Align Flushometer directly above the Vacuum Breaker Flush
Connection by sliding the Flushometer Body IN or OUT as needed.
Tighten Vacuum Breaker Coupling by hand.
A
Lubricate tailpiece O-ring with water. Insert Adjustable Tailpiece
into Control Stop. Tighten Tailpiece Coupling by hand.
Maximum adjustment of the Sloan Adjustable Tailpiece is 1/2” (13
mm) IN or OUT from the standard 4-3/4” (121 mm) (centerline of
Flushometer to centerline of Control Stop).
If roughing-in measurement exceeds 5-1/4” (133 mm), consult
factory for longer tailpiece.
NOTE
TAILPIECE COUPLING CONTROL
STOP
1 FLUSHOMETER
BODY
VACUUM
BREAKER
COUPLING
2
ADJUSTABLE TAILPIECE
O-RING
G-44 FRICTION
RING
SPUD
COUPLING
3
C/L
FIXTURE
C/L
SUPPLY
VACUUM
BREAKER
FLUSH
CONNECTION
4-3/4”
(121 mm)
±1/2”
(13 mm)
D Install the red A-31 Handle Gasket on the Handle Assembly. Insert
the Handle Assembly into the Handle opening in the Flushometer
Body. Securely tighten the Handle coupling with a wrench.
Sloan’s triple-sealed Flushometer Handle is ADA-complaint.
HANDLE
ASSEMBLY
HANDLE
COUPLING
A-31 GASKET
VACUUM
BREAKER
REPAIR KIT
A
Make sure Control Stop is CLOSED
and remove Flushometer Outer Cover.
C
Reinstall Outside and Inside Cover
wrench tight. Open Control Stop to
flush supply line. Close Control Stop
and remove Outside and Inside Cover.
B
Remove Inside Cover and lift out Inside
Parts Assembly.
D
Reinstall Inside Parts Assembly, Inside
Cover and Outside Cover wrench tight.
D
Install Vandal Resistant Control
Stop Cap onto Control Stop.
• Thread the Plastic Sleeve onto
the Stop Bonnet until it is snug
(tighten only by hand; do not use
pliers or a wrench).
• Place the metal Control Stop
Cap over the plastic Sleeve and
use the palm of the hand to push
or “pop” the Cap over the fingers of the Plastic Sleeve. The Cap
should spin freely.
Important: DO NOT install Cap onto Sleeve unless the Sleeve has been
threaded onto Control Stop Bonnet. If the Sleeve and Cap are assembled
off of the Control Stop, the Sleeve WILL NOT come apart from the Cap.
B Activate Flushometer.
A
Open Control Stop COUNTERCLOCKWISE one FULL turn from
closed position.
C
Adjust Control Stop after each
flush until the rate of flow
delivered properly cleanses
the fixture.
TURN COUNTER-
CLOCKWISE TO OPEN
TURN CLOCKWISE
TO CLOSE
Sloan’s flushometers are engineered for quiet operation. Excessive water flow creates
noise, while too little water flow may not satisfy the needs of the fixture. Proper
adjustment is made when plumbing fixture is cleansed after each flush without splashing
water out from the lip AND a quiet flushing cycle is achieved.
Never open Control Stop to where the flow from the valve exceeds the flow capability
of the fixture. In the event of a valve failure, the fixture must be able to accommodate a
continuous flow from the valve.
!!! IMPORTANT !!!
CONTROL
STOP CAP
H-700-A BAK CHEK ®
CONTROL STOP
PLASTIC SLEEVE
CONTROL
STOP BONNET
For high efficiency urinal flushometers (0.5, 0.25 and 0.125 gpf), it is
necessary to first insert the flow control component into the tailpiece
assembly. See the H1015A flow control kit and separate instructions
for details on how to install.
NOTE
