Sloan 110 Royal Exposed Flushometer - Manual (Page 2)

2
A
Measure from finished wall to C/L of fixture spud. Cut pipe
1¼” (32 mm) shorter than this measurement. Chamfer
O.D. and I.D. of water supply pipe.
WATER SUPPLY PIPE
FINISHED WALL
1-1/4”
(32 mm)
C/L OF
FIXTURE
SPUD
SWEAT
SOLDER
ADAPTER
B
Slide threaded adapter fully onto pipe.
C
Sweat solder the Adapter to pipe.
WITH THE EXCEPTION OF CONTROL STOP INLET, DO NOT
USE PIPE SEALANT OR PLUMBING GREASE ON ANY VALVE
COMPONENT OR COUPLING!
!!! IMPORTANT !!!
PROTECT THE CHROME OR SPECIAL FINISH OF SLOAN
FLUSHOMETERS — DO NOT USE TOOTHED TOOLS TO
INSTALL OR SERVICE THESE VALVES. USE A SLOAN A-50
SUPER-WRENCH™, SLOAN A-109 PLIER WRENCH OR SMOOTH
JAWED SPUD WRENCH TO SECURE ALL COUPLINGS. SEE
“CARE AND CLEANING” SECTION.
!!! IMPORTANT !!!
THIS PRODUCT CONTAINS MECHANICAL AND/OR ELECTRICAL
COMPONENTS THAT ARE SUBJECT TO NORMAL WEAR. THESE
COMPONENTS SHOULD BE CHECKED ON A REGULAR BASIS
AND REPLACED AS NEEDED TO MAINTAIN THE VALVE’S
PERFORMANCE.
!!! IMPORTANT !!!
Please take the time to read this manual to ensure proper
product installation and longevity.
When further assistance is required, please contact your local
Sloan Representative or Sloan Technical Support at:
1-888-SLOAN-14 (1-888-756-2614)
VACUUM
BREAKER
TUBE
SPUD COUPLING
NYLON SLIP
GASKET
RUBBER
GASKET
SPUD FLANGE
A
Slide Spud Coupling, Nylon Slip Gasket, Rubber Gasket and
Spud Flange over Vacuum Breaker Tube.
B
Insert Tube into Fixture Spud.
C Hand tighten Spud Coupling onto Fixture Spud.
BAK-CHEK ®
CONTROL STOP
COVER TUBE
IRON PIPE NIPPLE OR
COPPER PIPE WITH SWEAT
SOLDER ADAPTER
SET SCREW
SUPPLY
FLANGE
WATER
SUPPLY PIPE
SWEAT SOLDER
ADAPTER
COVER TUBE
WALL
FLANGE
SET SCREW
A
Measure from finished wall
to first thread of Adapter
or threaded supply pipe
(dimension “X”). Cut Cover
Tube to this length.
B Slide Cover Tube over pipe.
Slide Wall Flange over Cover
Tube until against wall.
Thread Control Stop onto
pipe. Tighten with a wrench.
C
VACUUM
BREAKER
TUBE
SPUD COUPLING
NYLON SLIP
GASKET
RUBBER
GASKET
SPUD FLANGE
SPUD COUPLING
NYLON
SLIP
GASKET
RUBBER
GASKET
SPUD FLANGE
MODELS 110/111,
113, 115, 116,
117
MODELS 120,
121, 122
MODEL 180 MODEL 186
Tighten Set Screw with a 1/16”
hex wrench. DO NOT install Vandal
Resistant Stop Cap at this time.
D
ELBOW FLUSH
CONNECTION
NEVER OPEN CONTROL STOP TO WHERE THE FLOW FROM
THE VALVE EXCEEDS THE FLOW CAPABILITY OF THE
FIXTURE. IN THE EVENT OF A VALVE FAILURE, THE FIXTURE
MUST BE ABLE TO ACCOMMODATE A CONTINUOUS
FLOW FROM THE VALVE.
!!! IMPORTANT !!!

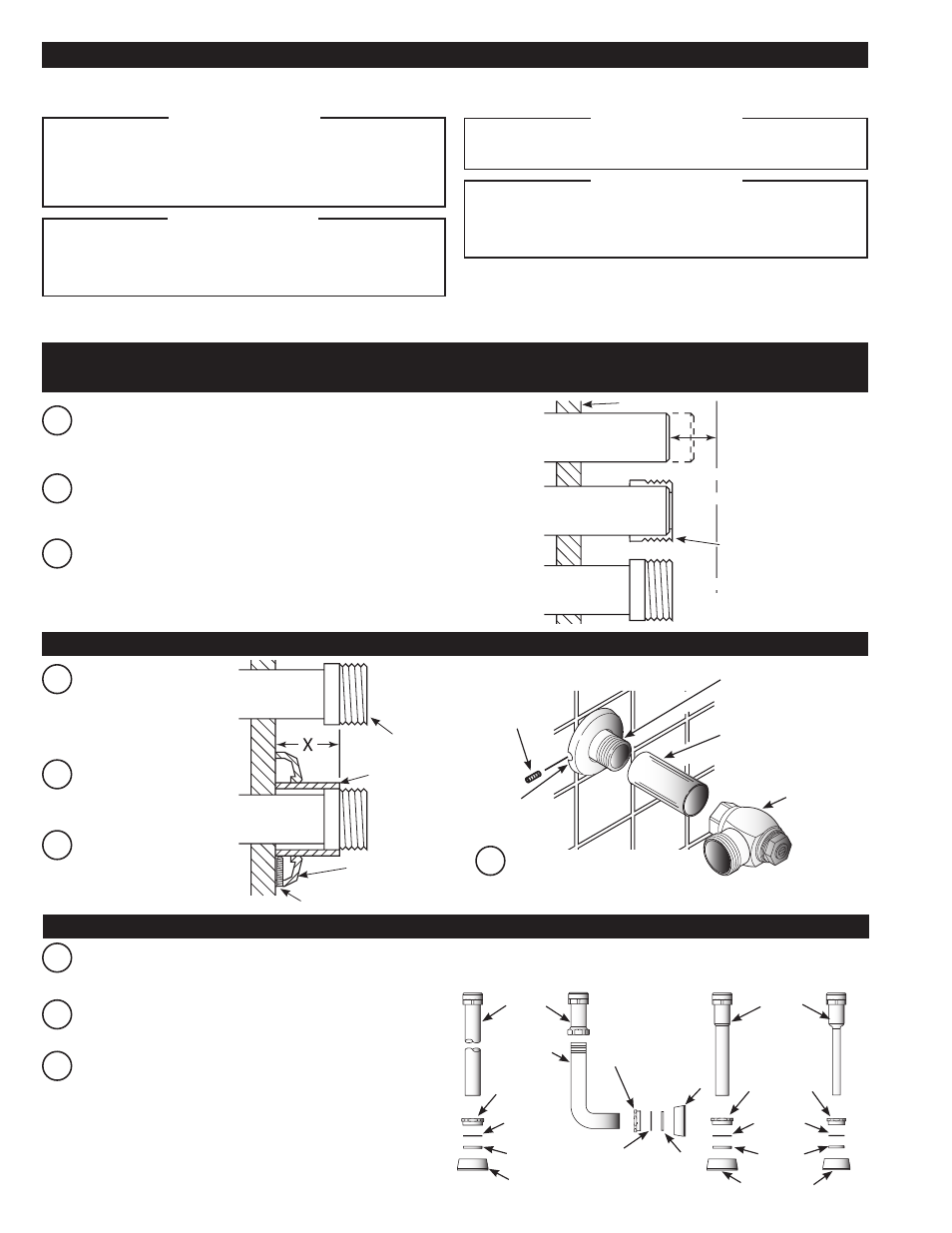

1 - INSTALL OPTIONAL SWEAT SOLDER ADAPTER (ONLY IF YOUR SUPPLY PIPE DOES
NOT HAVE A MALE THREAD)
2 - INSTALL COVER TUBE, WALL FLANGE AND CONTROL STOP TO SUPPLY PIPE
3 - INSTALL VACUUM BREAKER FLUSH CONNECTION
TOOLS REQUIRED FOR INSTALLATION
• Straight blade screwdriver
• Sloan A-50 Super-Wrench™, Sloan A-109 Plier Wrench or smooth jawed spud wrench
