Scotsman NME654R - Manual (Page 8)

NME654R & FME804R
January 2000
Page 8
FOR THE INSTALLER: Location

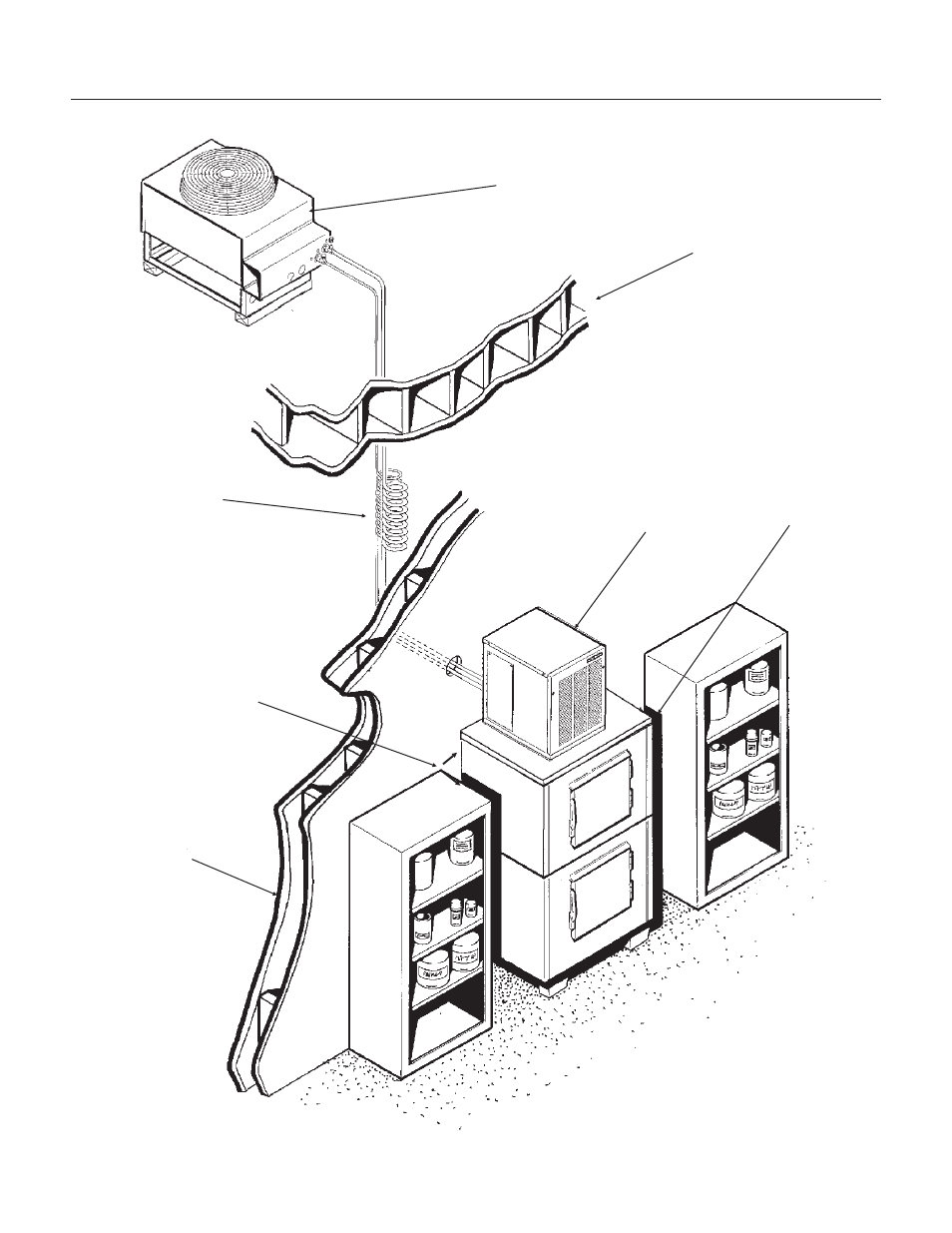

TYPICAL INSTALLATION
REMOTE
CONDENSER
EXCESS
PRECHARGED
TUBING INSIDE
BUILDING
Ice Machine
SERVICE
ACCESS
SERVICE ACCESS
SIDE AND BACK
ROOF
CUTAWAY
WALL
CUTAWAY
