2. Hardware Orientation

MVP 8043 Back Panel

MVP 8043 User Manual 25

MVP 8043 Back Panel

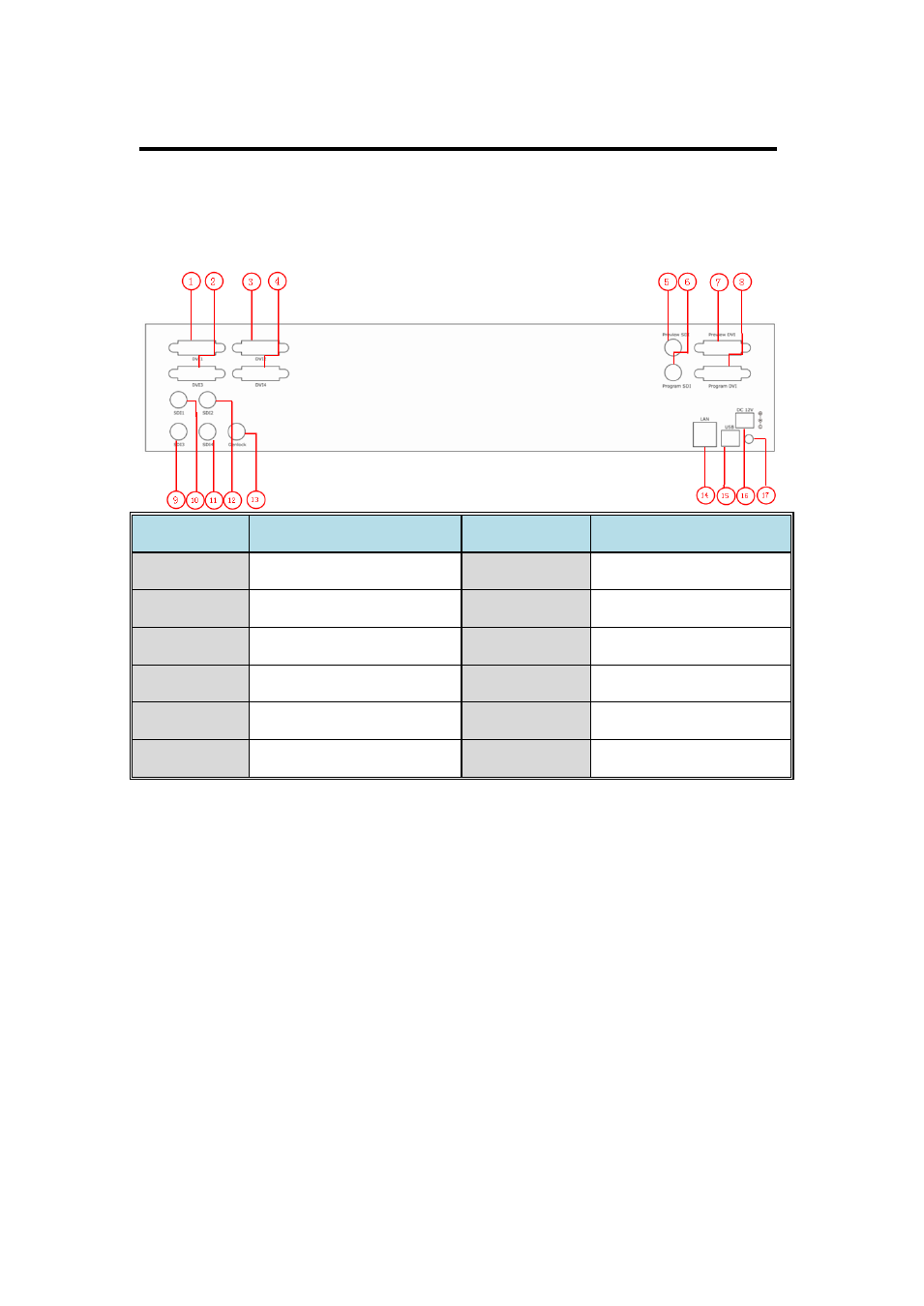

The figure below illustrates the professional interface and control signals

of MVP 8043 back panel.

NO.

INTERFACE

NO.

INTERFACE

1~4

DVI Input

13

Genlock Input

5

Preview SDI Output

14

10/100M Interface RJ45

6

Program SDI Output

15

USB Interface

7

Preview DVI Output

16

Power

8

Program DVI Output

17

Upgrade Button

9~12

SDI Input

CONT Interface

14：10/100M Interface

15：USB Interface

Used for connect to the computer for remote communication or use for

device upgrade.

17：Upgrade Button

Connect USB cable and power, press the button to upgrade the program.

INPUT Interface

It includes 4 DVI inputs (DVI-I interface compatible with the HDMI input),
