2.3

Unit dimensions and pump group components HGU

Dimensions

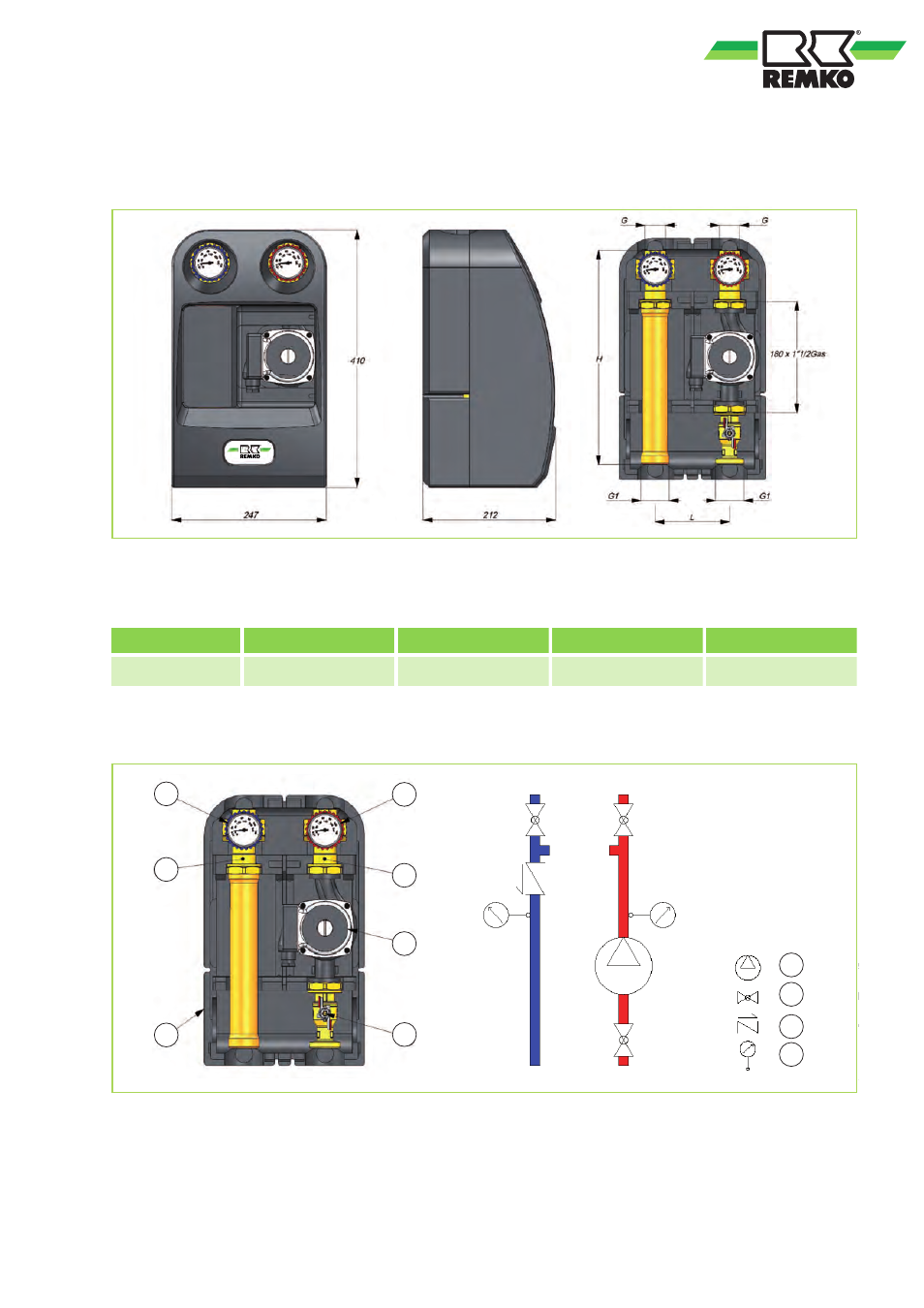

Fig. 3: Unit dimensions for pump group HGU

Pump group

G

G1

L

H

HGU

1" F

1

1

/

2

" M

125 mm

363 mm

Components

2

1

4

3

6

5

4

1

=

2

=

= 3
= 4

Fig. 4: Pump group components HGU

1:

Circulation pump Wilo Stratos Para 25 / 1-7 T1

2:

Ball valve

3:

Ball valve with integrated check valve

4:

Thermometer

5:

Ball valve

6:

Insulation
