Appendix b - wiring diagrams, Appendix b, Wiring diagrams – MicroE OPS Series User Manual

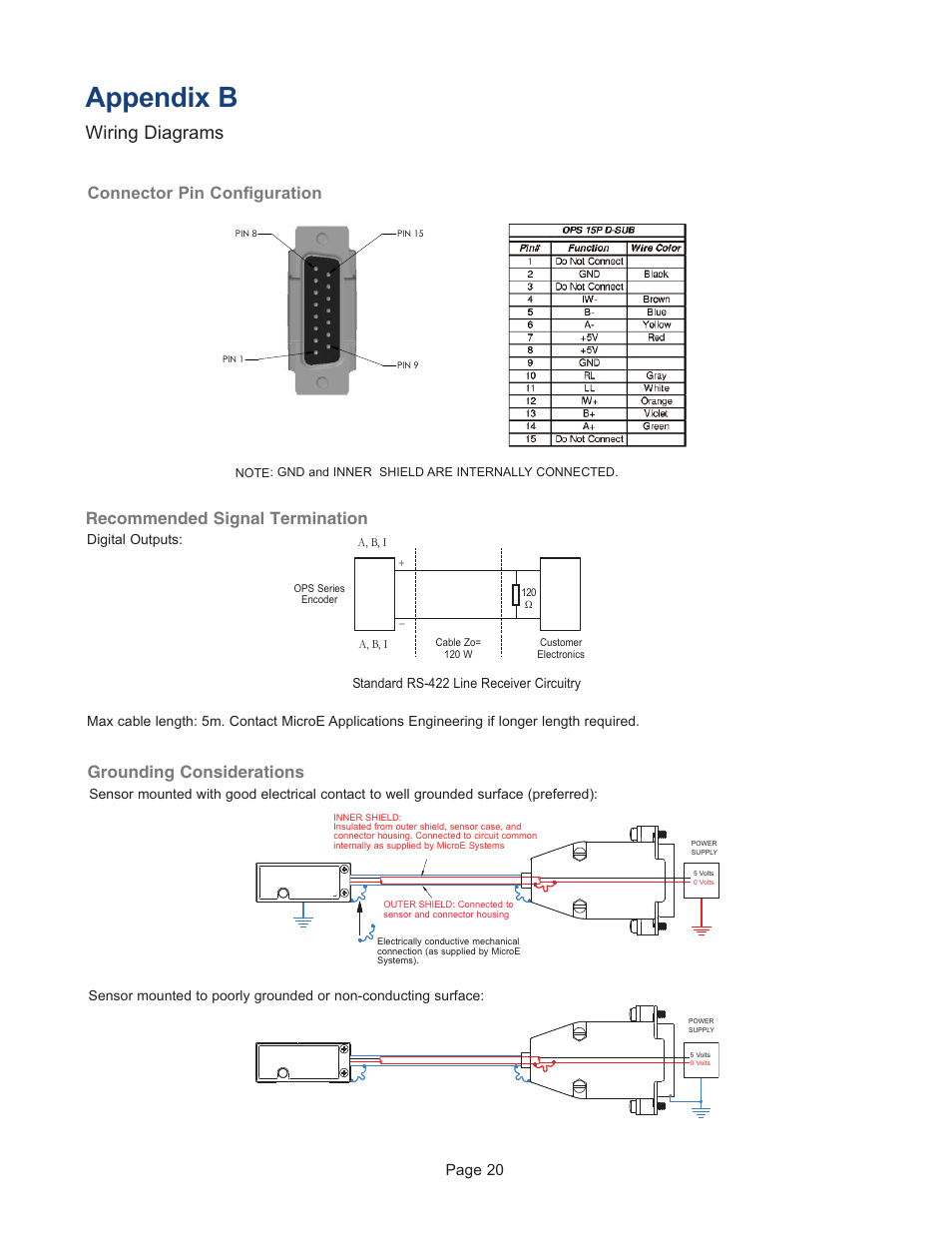

Page 20: Connector pin configuration, Grounding considerations, Recommended signal termination, Page 20, Digital outputs, Standard rs-422 line receiver circuitry

Appendix b - wiring diagrams, Appendix b, Wiring diagrams | Connector pin configuration, Grounding considerations, Recommended signal termination, Page 20, Digital outputs, Standard rs-422 line receiver circuitry | MicroE OPS Series User Manual | Page 20 / 25 Appendix b - wiring diagrams, Appendix b, Wiring diagrams | Connector pin configuration, Grounding considerations, Recommended signal termination, Page 20, Digital outputs, Standard rs-422 line receiver circuitry | MicroE OPS Series User Manual | Page 20 / 25
