Cruising unit 2 parts – Harken 7311.10 Cruising Jib Reefing & Furling User Manual
Page 33
10/11/10
Unit 2 Cruising
33
Cruising Unit 2

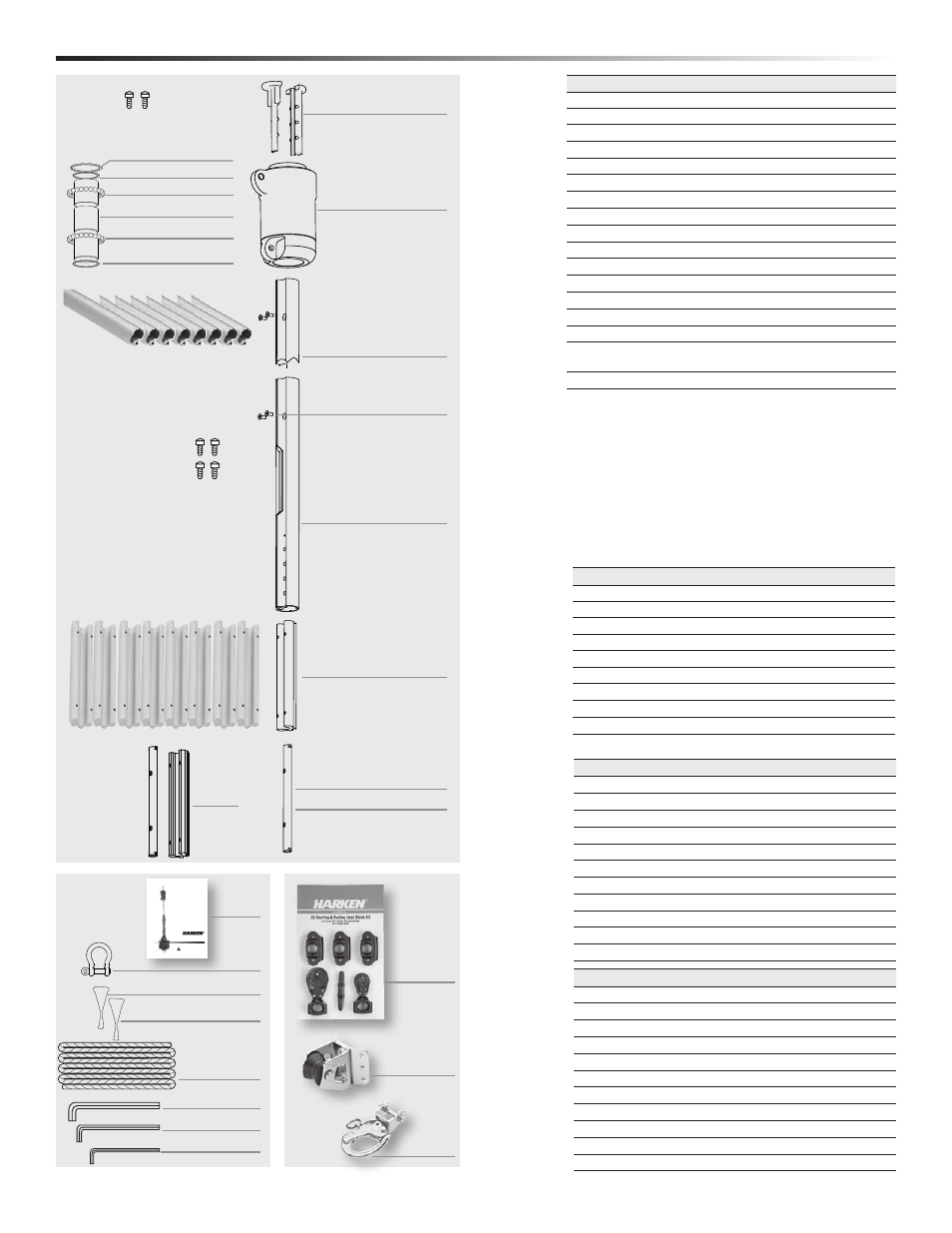

Parts
HFG739
833
MKIV
Jib Reefing & Furling
Installation Manual
Unit 0
WARNING!: Strictly follow all instructions
to avoid an accident, damage to your vessel,
personal injury or death. See www.harken.com
for additional safety information.
4414
7404
HFG196
HFS1127
5
6
7
6
Description
Order
Part No.
Instruction Manual
1
4414
Shackle
3
2117
Red Loctite
®
2
HFG739
Blue Loctite
®
1
833
8mm Double Braid Polyester (100', 30.4 m)
1
HFG235
Allen Wrenches
M3
1
HCP1089
M4
1
HFG640
M6
1
HFG644
Description
Order
Part No.
Lead Block Kit
1
7404
29 mm Outboard Lead Assembly
3
7403
57 mm Carbo Ratchet Assembly
1
7402
40 mm Carbo Assembly
1
7401
Horn Cleat
1
HCP168
Halyard Restrainer
1
945
Sheave/SS Inner Race Only
1
945A
Clevis Pin (
1
/
4
" x 1.0625" 18-8)
1
HCP208
Bracket-Large
1
HCP394
Cotter Pin (
1
/
16
" x .500" 18-8)
1
HFS181
Snap Shackle
1
885
7
5
Description
Order
Part No.
Trim Cap Set w/o Screws
1
HFG197
Trim Cap Screw
2
HFS1127
Halyard Swivel
1
H-37317C
Clip/Smally Ring
1
H-38028A
Clip/Smally Ring for liners
2
H-38027A
Liner/Igus
3
H-38029A
Torlon Ball Bearings
44
HBB7
Foil Set (8)
1
7312.10 FOILSET
Foil (7'/2.13 m Luff)
8
7312.30
Foil (2'/610 mm) Bottom w/Feeder
1
7312.33
Connector Set (8)
1
HFG938
Connector
8
7312.31F
Connector Screw Set (30)
1
HFG196
Connector Screw
30
HFS1060
Connector Isolator
8
H-37330C
Connector Isolator (7/16", 11 mm,
12 mm Wire)
9
H-41009
Connector w/H-37330C
7312.31
HFG197
H-37317C
HFS1060
7312.30
7312.31F
H-41009
HFG235
7312.33
945
M6
M4
M3
885
2117
7312.10 FOILSET
HFG938
H-38028A
H-38027A
H-38027A
HBB7
H-38029A
HBB7
H-37330C
7312.31
