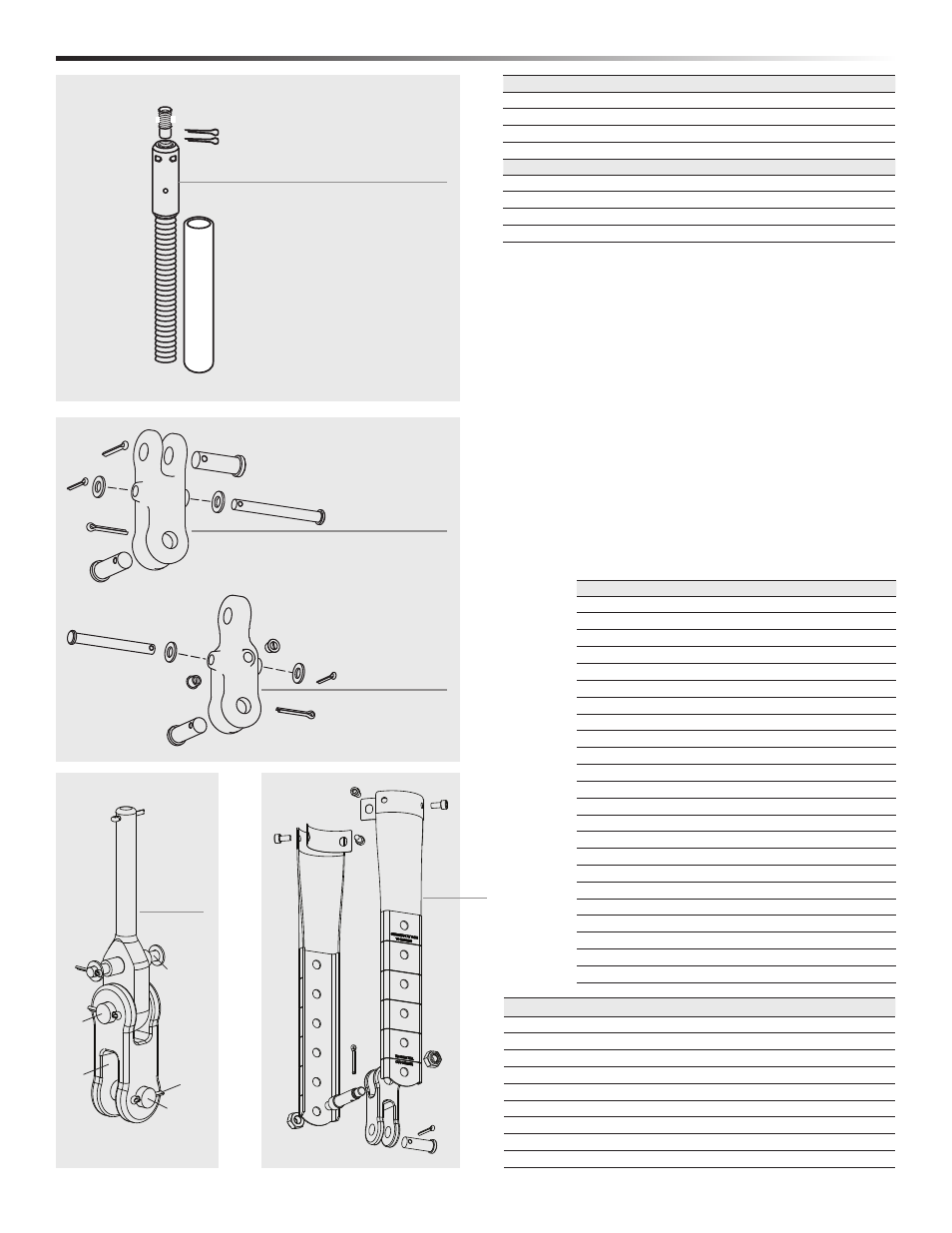

Harken 7311.10 Cruising Jib Reefing & Furling - Manual (Page 31)

10/11/10 Unit 1 Cruising 31
No. Description Order Part No Part No
Rod Adapter Stud w/Nosepiece 1 7422 -8 7423 -10
1 Stud (Main Body) 1 H-41536 H-41536
2 Nosepiece 1 H-41534 H-41535
3 Cotter Pin 2 HFG193 HFG193
No. Description Order Part No
Rod Adapter Stud w/Nosepiece 1 7424 -12
1 Stud (Main Body) 1 H-41531
2 Nosepiece 1 H-41527
3 Cotter Pin 2 HFG193
8
No. Description Order Part No
Jaw/Jaw Toggle 1 7311.20 1/2
1 Toggle 1 H-42336
2 Crosspin 1 H-42396
3 Clevis Pin 2 H-42395
4 Cotter Pin 2 HFS220
5 Cotter Pin 1 HFS181
6 Nylon Washer 2 HFS1109
Eye/Jaw Toggle Reversible 1 7411.20 1/2
1 Toggle 1 H-37675C
2 Crosspin 1 H-42396
3 Nylon Washer 2 HFS1109
4 Cross Hole Plug 2 H-42049
5 Clevis Pin 1 h-42395
6 Cotter Pin 1 HFS220
7 Cotter Pin 1 HFS181
Stud/Jaw Toggle 1 7311.20 5/8
1 Jaw Jaw Toggle 1 H-41300
2 Crosspin 1 H-42396
3 Clevis Pin 2 H-42397
4 Stud 1 H-43207
5 Cotter Pin 3 HFS220
6 Cotter Pin 1 HFS181
7 Nylon Washer 2 HFS1109
9
10
1
2
8
3
7422 -8
7423 -10
7424 -12
1
2
3
4
6
7
7411.20 1/2
5
3
4
1
2
4
5
6
6
3
7311.20 1/2
7311.21 1/2
7311.21 5/8
11
7311.20 5/8
9
No. Description Order Part No Part No
Long Link Plate w/Toggle 7311.21 1/2 7311.21 5/8
1 Jaw Jaw Toggle 1 H-42159 H-41300
2 Link Plate Straps 2 H-42178 H-42178
3 Cross Pin 1 H-42170 H-42171
4 Lower Clevis Pin 1 H-42395 H-42397
5 Isolator 2 H-42182 H-42182
6 Cotter Pin 2 HFS220 HFS203
7 Nylock Nut (M12) 2 HFS846 HFS846
8 Allen Cap Screws (M6 x 1 x 12mm) 4 HFS876 HFS876
11
Cruising Unit 1 Parts
10
1
2
3
4
5
6
7
5
7
3
5
8
1
4
2
2
7
5
6
3
8
8
8
6
