6. Set the Maximum Firing Rate

Monitor the unit’s actual temperature rise by placing
a thermocouple in the unit’s inlet and a second in the
discharge, three duct diameters downstream of the
burner.
Send the unit to maximum fire by disconnecting and
isolating the wire connected to Terminal 3 on the
Maxitrol 14 or 44. See images on next page.
While monitoring the unit’s temperature rise, set the
maximum firing rate by adjusting the regulator until
the designed temperature rise is achieved. After
setting the maximum firing rate, reconnect the wire to
the amplifier.

NOTE

The low fire time delay must be set high enough to
provide at least 10 seconds of low fire while the unit
tries to light.

“ W.C.

“ W.C.

“ W.C.

F

PSI

“ W.C.

“ W.C.

MAX BTU/HR
BTU/H MAX

NORMAL MANIFOLD
PRESSURE
PRESSION D’ADMISSION
NORMALE

MIN GAS
PRESSURE
PRESSION DE GAZ

MIN BURNER
PRESSURE DROP
PERTE MIN DE PRESSION
DANS LE BRULEUR

TYPE OF GAS
NATURE DU GAZ

MIN BTU/HR
BTU/H MIN

MIN GAS PRESSURE
FOR MAX OUTPUT
PRESSION DE GAZ MIN
POUR PUISSANCE MAX

MAX BURNER
PRESSURE DROP
PERTE MAX DE PRESSION
DANS LE BRULEUR

MAX GAS
PRESSURE
PRESSION DE GAZ
MAX

DESIGN ∆T
∆T NORMALE

EQUIPPED FOR

CONCU POUR

SCFM

“ W.C.

EXTERNAL STATIC PRESSURE

PRESSION STATIQUE EXTERIEURE

AGAINST

CONTE

NOTE

Do not set the burner maximum firing rate based on
gas pressure. It should be set based on the unit’s
designed temperature rise shown on the direct gas
label.

NOTE

Clockwise rotation increases the temperature
rise, counterclockwise rotation decreases the
temperature rise.

NOTE

The minimum setting for the maximum firing rate
may be higher than required. This is acceptable, the
burner will modulate as needed.

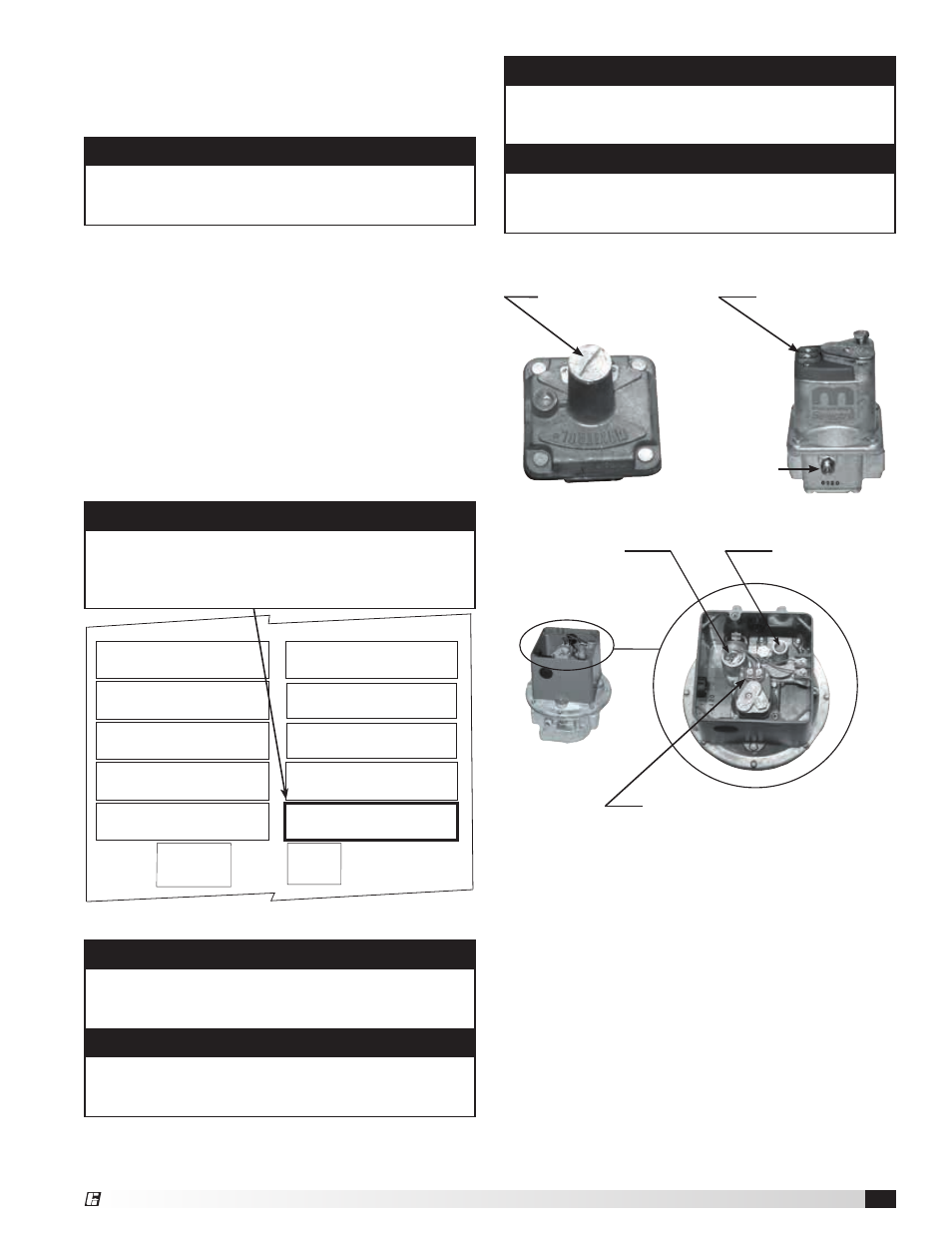

Direct Gas Nameplate

Regulators and Modulating Valves

Remove cap to access

maximum firing rate

adjustment

Remove one wire to

send the unit to the
minimum firing rate

Separate Regulator and Modulating Valves

Minimum firing

rate adjustment

Combined Modulating Regulator

Maximum firing

rate adjustment

Remove one wire to send the unit

to the minimum firing rate

Minimum firing

rate adjustment

7. Set the Minimum Firing Rate

Disconnect and isolate one of the wires running to
the modulating valve to send the unit to its minimum
firing rate. Set the minimum firing rate by adjusting the
needle valve.
After setting the minimum firing rate, shut off the
pilot to ensure that the flame safeguard can still read
the main flame signal. Reconnect the wire to the
modulation valve and open the pilot shut-off valve.

IMPORTANT

Setting the maximum firing rate during mild weather
conditions may cause the high limit to trip out during
extreme conditions requiring manual resetting.

NOTE

Gas trains are equipped with either separate
regulators and modulating valves or with a
combined modulating valve.

5. Set the Low Fire Time Delay

Set the low fire time delay to 75% of its maximum
setting. See corresponding image(s) for the location of
the time delay setting.

Model DG / DGX Pilot Ignition Make-Up Air

17

®
