Programming the Radio
1. Make sure the radio to be programmed is powered and connected to the PC (as described above)
before starting the programming software on the PC.
N
OTE
: If the Ritron software does not read the type of the connected radio, unplug the programming
cable and re-insert.

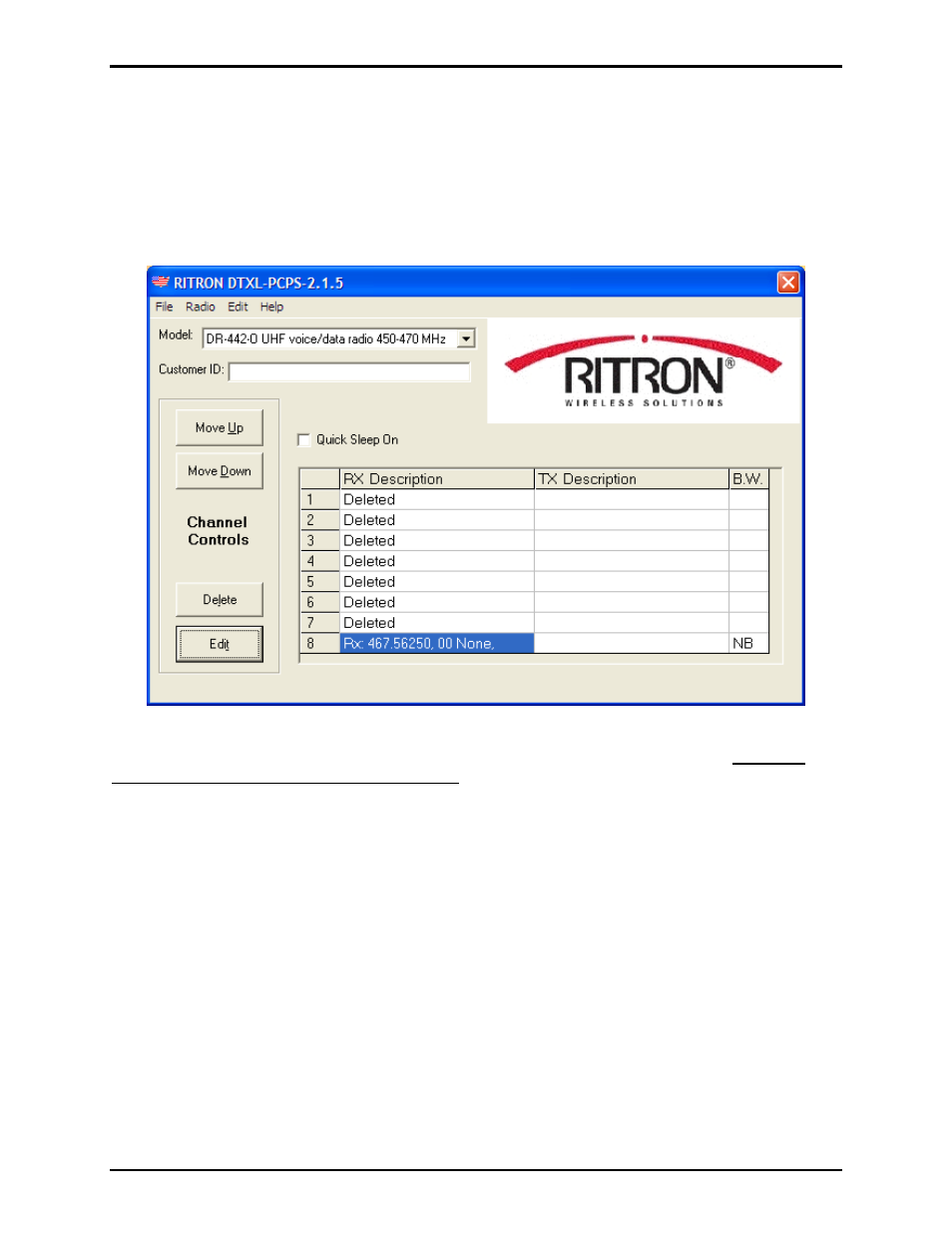

2. The radio’s current programming will be displayed. Below is an example:
N
OTE
: The RF Module is capable of being programmed for channels 1–8; however, the
Addressable Amplified Speaker uses only the frequency programmed for channel 8. Be sure to
program channel 8 with the licensed frequency.
