Cable Entries

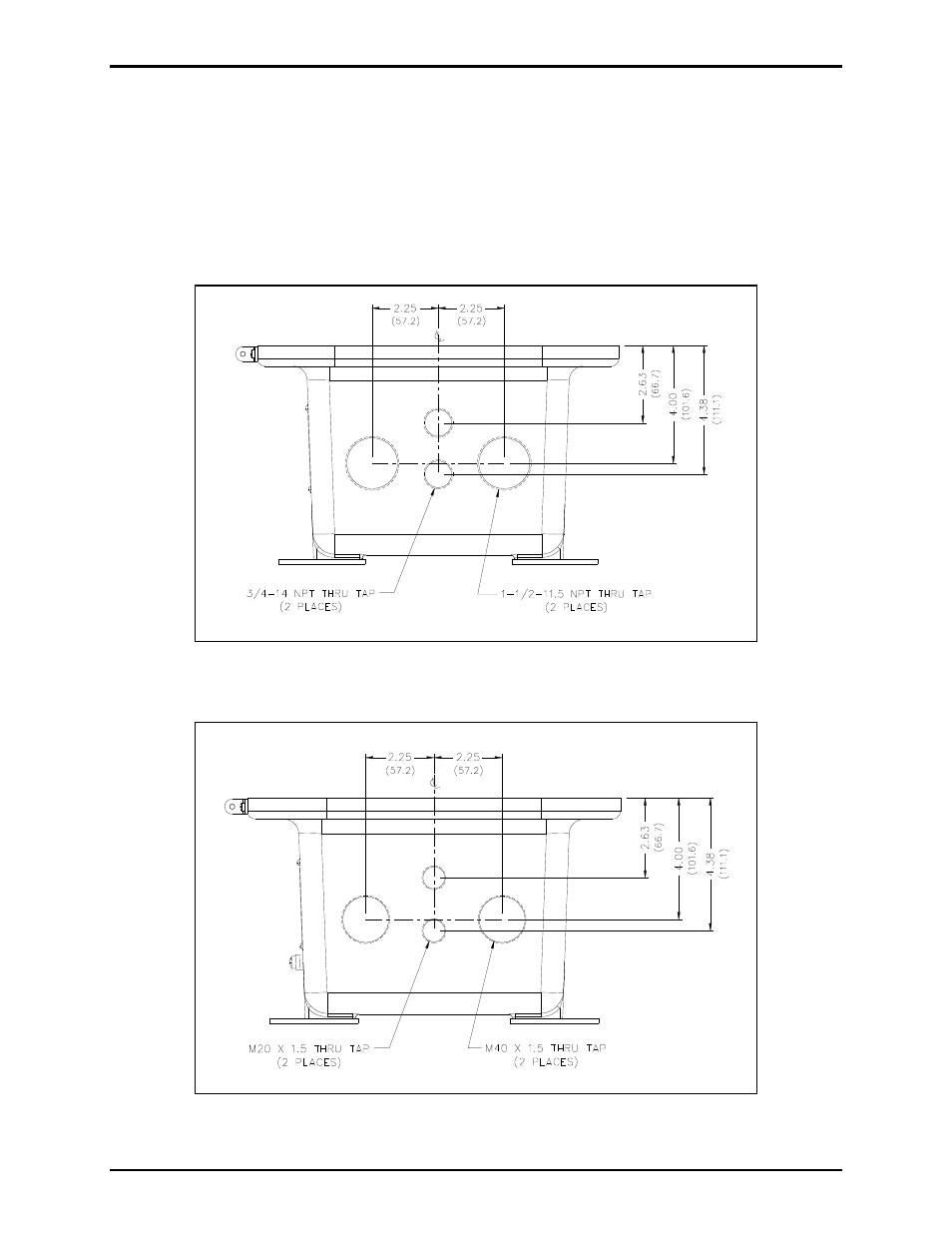

Refer to Figure 4 for the standard NPT conduit entries, and Figure 5 for the standard metric cable gland
entries. Ensure any unused openings are sealed with proper fittings per local standards. All metric cable
entry devices and blanking elements shall be certified in type of explosion protection flameproof
enclosure “d” with an IP66 rating, suitable for conditions of use and correctly installed. Use field wiring
suitable for the ambient temperature. Any conduit NPT plugs (blanking elements) will need to be
explosion-proof with a Type 4X rating.
Figure 4. Standard NPT Conduit Entries
Figure 5. Standard Metric Cable Gland Entries
