JAM CLEARING & FAULT INDICATOR
RESET
JAM OCCURS IN A FOLD TABLE
1. Unplug and remove the fold table and remove paper.
Use the hand wheel to assist in advancing the paper
through the rollers.
2. Reinstall and plug in fold table.
3 Press the reset button on the control panel to clear
the fault signal.
JAM OCCURS BETWEEN THE METAL SEALING
ROLLERS
1. Remove any remaining forms from the feed table.
2. Lift the rear cover of the folder to access the metal
sealing rollers.
2. Remove the transport table ball deck (Fig. 30).
3. Using the jam-clearing tool, apply the tool to the
holes in either upper metal rollers (Fig. 30) and turn
clockwise until the paper jam is clear.
Caution: Do not turn counter-clockwise and/or force
the form(s) to exit the machine or the rollers may be
damaged.
4. Remove the jammed form.
5. Reinstall Ball Deck
6. Press the reset button on the control panel to clear
the fault signal.

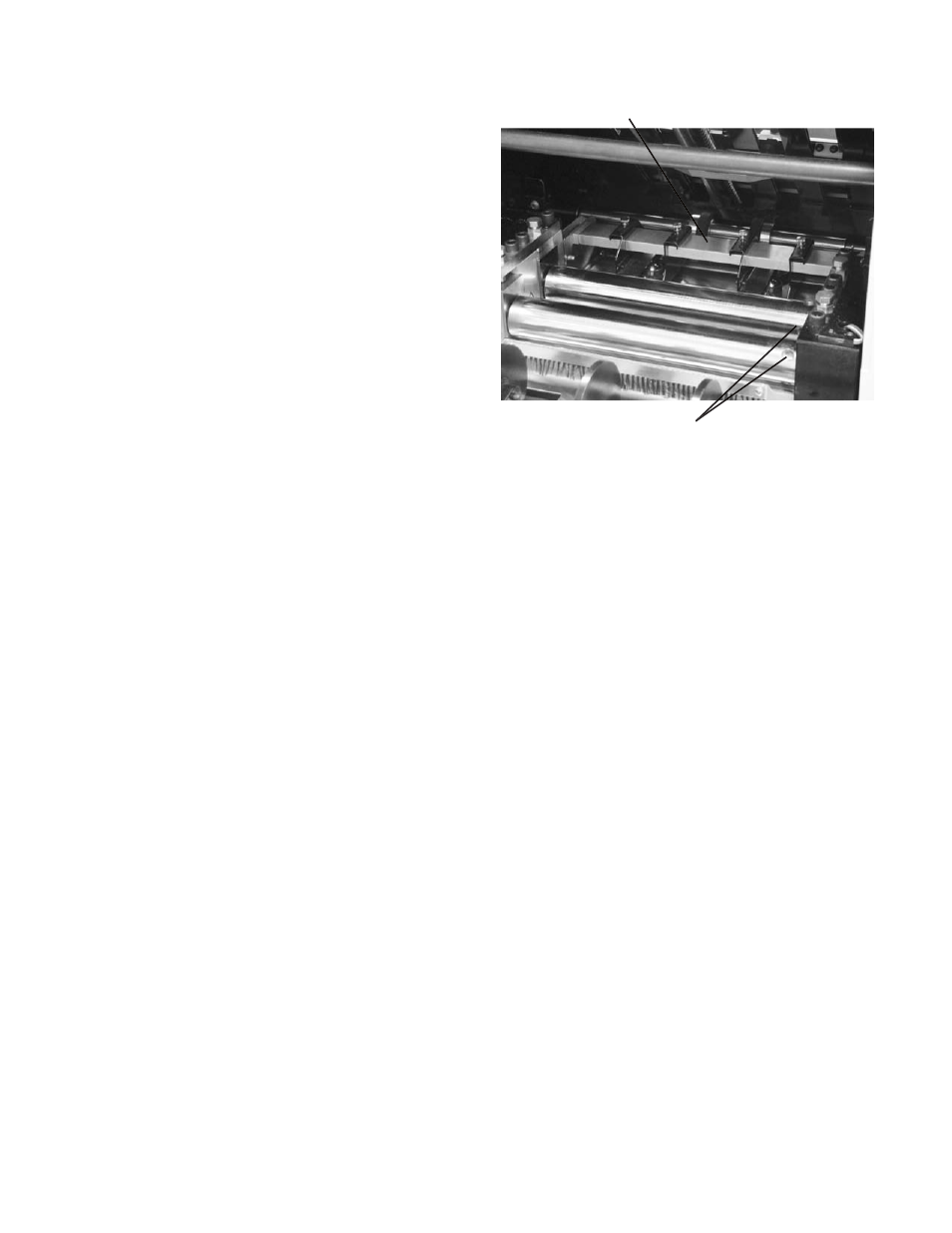

Jam clearing tool holes
Ball Deck
Fig. 30
