Instruction Sheet
Instructions
PN 76370-00
Rev. 092209
SUBJECT: WHEELED VACUUM
REPLACEMENT WHEELS
(KITS 76371-00 AND 76372-00)
FITS MODELS: ALL WHEELED VACS
Before inspecting or servicing any part of this machine,
shut off power source and make sure all moving parts
have come to a complete stop.
WARNING
REPLACING REAR WhEELS ON SELF-PROPELLED MODEL (KIT # 76371-00)
(foR PUSH MoDEL INSTRUCTIoNS, SEE THE oTHER SIDE)
Start with the side that contains the drive sprocket (left side). Remove the existing wheel by removing the pushnut 1.
and pulling the wheel off the axle shaft.
Install the LH wheel, spacer, and pushnut onto the left axle shaft. NoTE:The right and left wheels can be distinguished
2.
by looking at the arrow imprinted near the center of the wheel. The wheel should be installed so that the arrow is
pointing the way the wheel will turn when the vacuum is pushed forward.
Remove the right side wheel and the pushnut. Slide the new wheel and spacer onto the axle shaft and secure it
3.
with the pushnut provided.

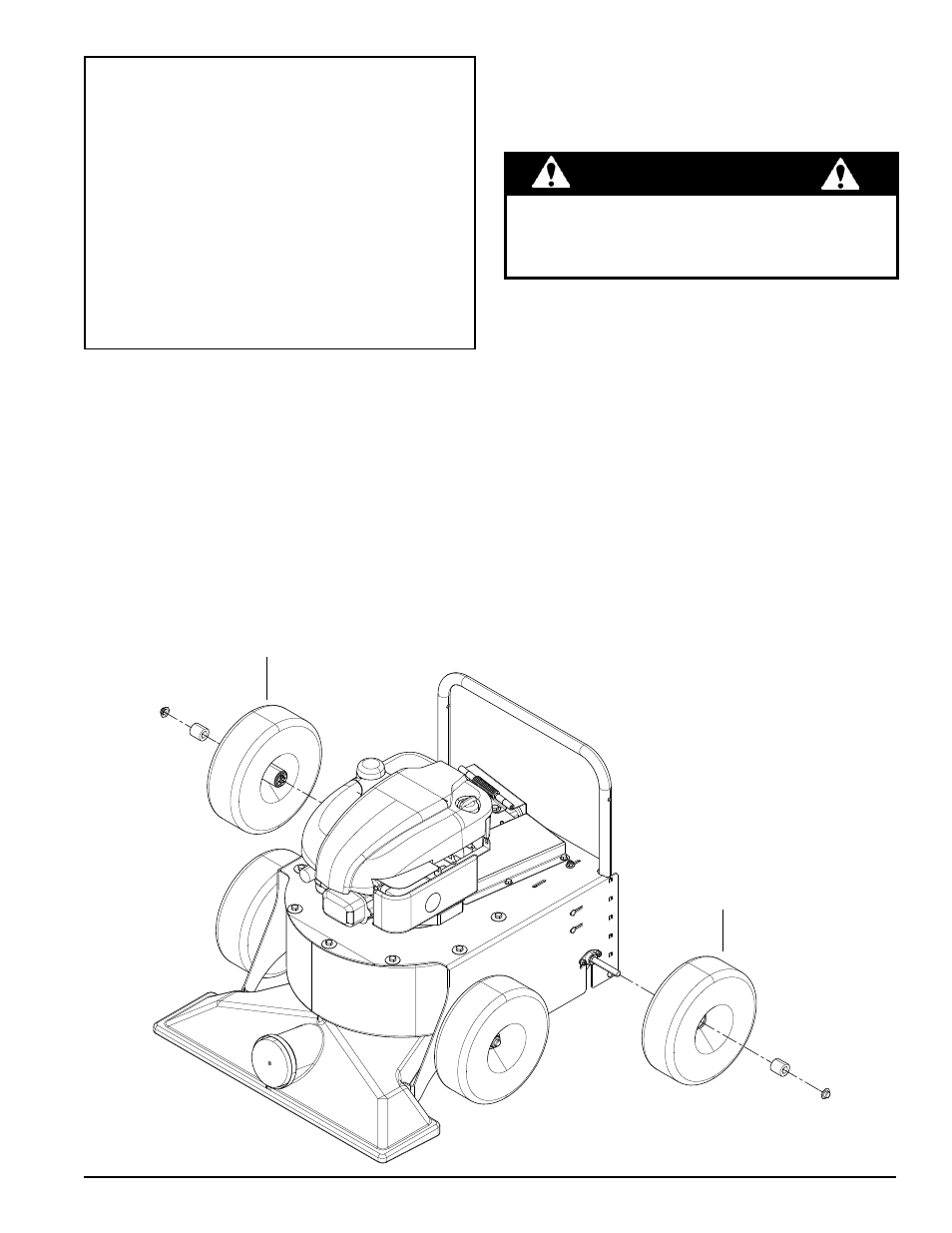

RH WHEEL,
PH 76368-00
LH WHEEL,
PN 76369-00
