Adjusting the Neutral Setting
•
KEEP THE WORK AREA CLEAR OF CHILDREN AND PETS.
•
STABILIZE THE MACHINE WHILE IN THE ELEVATED POSITION DURING THIS PROCEDURE.
•
DISENGAGE THE BLADES AND STAND CLEAR OF THE REAR WHEELS TO AVOID CONTACT AS THEY
TURN DURING THIS PROCEDURE.
It is important to maintain proper adjustment of the Steering Linkage so that the each Handle reaches
Neutral at the same position. Figure 30 shows the location of the Pump Linkage on the Hydraulic
Pumps, which you can adjust to achieve the correct setting.
Tool Needed:
•
1/4" Hex Key Wrench
• Lifting and Blocking Equipment
1. Block or raise the machine so that the Rear
Wheels are off the ground and can rotate
freely.
2. Loosen the Hex Socket Cap Screw at the
bottom of the Pump Linkage on each
Hydraulic Pump (Figure 30).
3. Start the Engine and run it at 3/4 Throttle
setting.
4. Rotate the Pump Linkage forward and
backward to find the Neutral position.
5. Once the Neutral position is determined,
tighten the Cap Screw securely.
6. Repeat the procedure for the other Pump.
7. Move the Engine Throttle to Idle, turn OFF
the Engine and remove the Blocking from the
machine.
8. Re-start the Engine and test the setting.

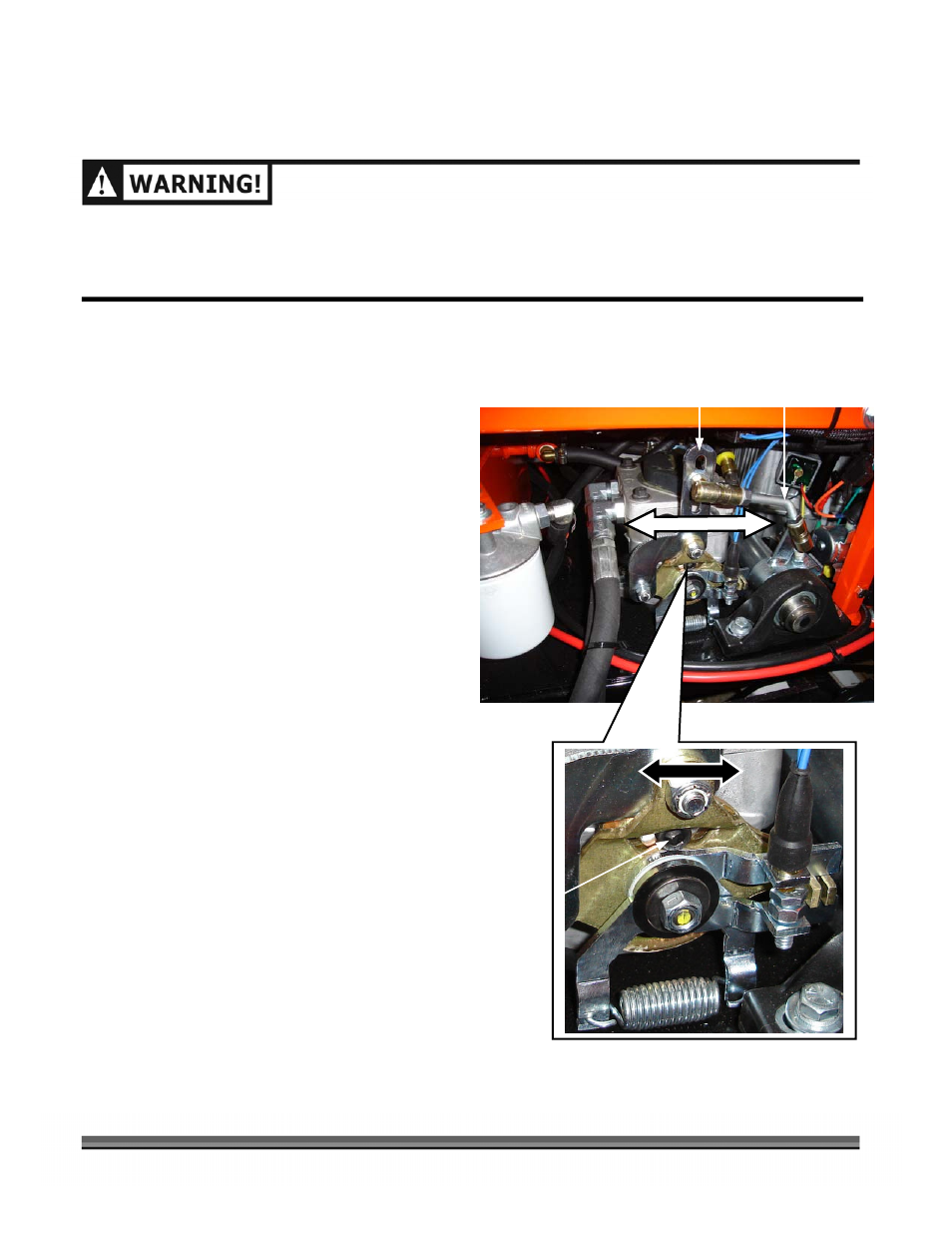

Figure 30
Steering and Pump Linkage
Pump Linkage Steering Linkage
Socket Cap Screw
