24 DR ® VERSA-PRO ™ Z-MOWER
Checking the Hydraulic Fluid
WHEN PERFORMING ANY ADJUSTMENT OR MAINTENANCE, YOU MUST FIRST SHUT OFF THE ENGINE,
SET THE PARKING BRAKE, WAIT FIVE (5) MINUTES TO ALLOW PARTS TO COOL AND DISCONNECT THE
SPARK PLUG WIRE(S), KEEPING IT AWAY FROM THE SPARK PLUG(S).
1. Lift the Driver’s Seat to locate the Hydraulic Fluid Tank
(Figure 7).
2. Remove the Fill Cap and check that the fluid level is about
1/4"-1/2" from the bottom of the Feeder Tube on the back
of the Hydraulic Fluid Tank (Figure 7).
3. If fluid is required, add 30 Weight, Synthetic Hydraulic Fluid,
or equivalent.
Changing Operator Positions
You can operate the DR VERSA-PRO Z-MOWER from the Driver’s Seat or from a Walk-Behind position.
The Walk-Behind position is useful for mowing on slopes or uneven terrain.
WHEN PERFORMING THIS OPERATION, YOU MUST ALWAYS FIRST SHUT OFF THE ENGINE AND SET THE
PARKING BRAKE.
1. To change the Operator’s position from the Driver’s Seat to
the Walk-Behind mode, push the Control Arm Latch in
(Figure 8), and then using the Handle on the side of the
Control Arm, lift and rotate the Control Arm back to the
Walk-Behind position.
2. Make sure the Control Arm latches firmly into place in the
Walk-Behind position.
3. Reverse the procedure to return the Control Arm to the
Driver’s Seat position.
NOTE: A switch is located in each Arm Rest. The Engine will
shut off if you attempt to change the mode of operation
with the Blades engaged.
Hydraulic Fluid
Tank
Hydraulic Fluid
Fill Cap

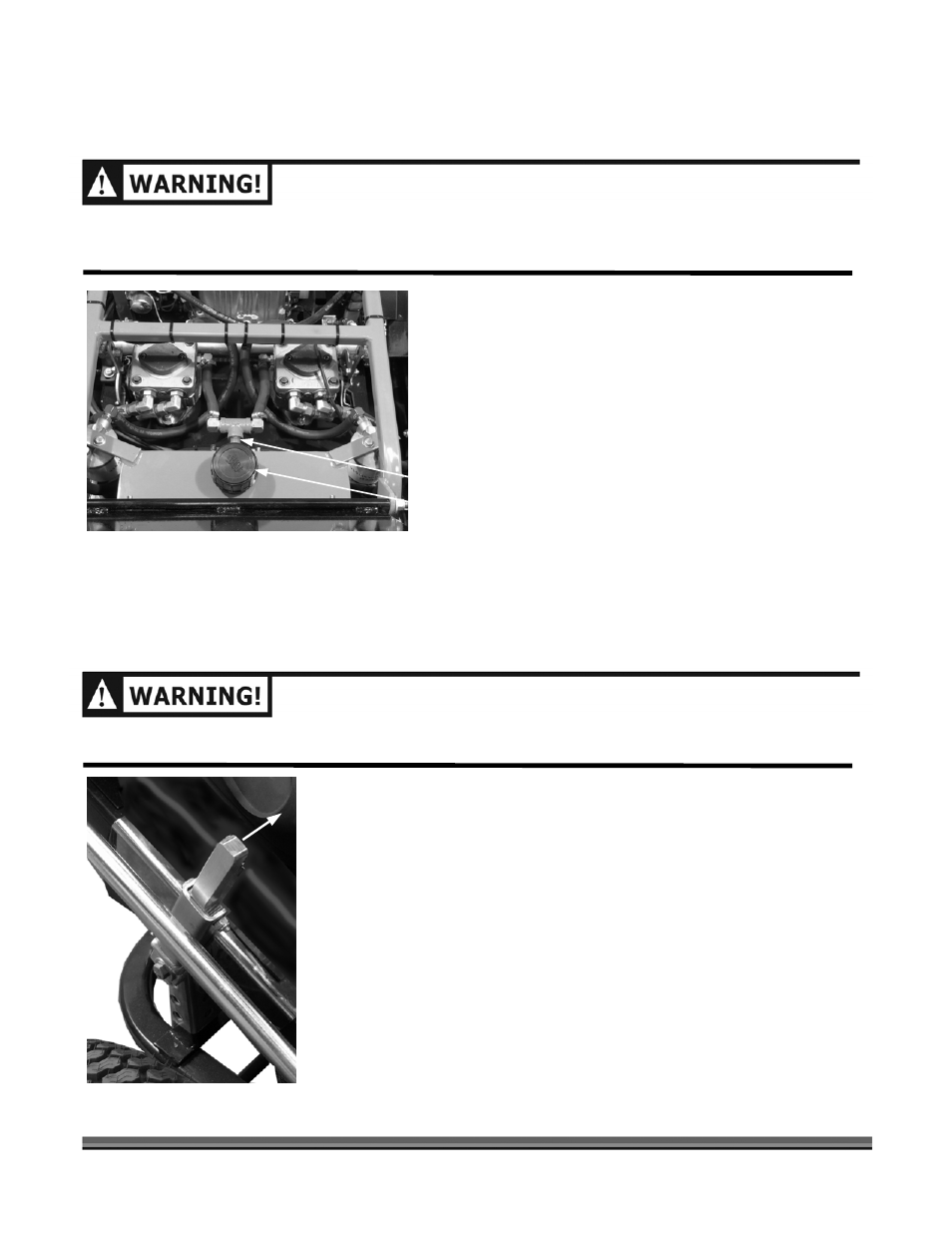

Figure 7
Figure 8
Push In to
Release.
Feeder Tube
