CONTACT US AT www.DRPower.com or CALL TOLL FREE 1-800-DR-OWNER 27

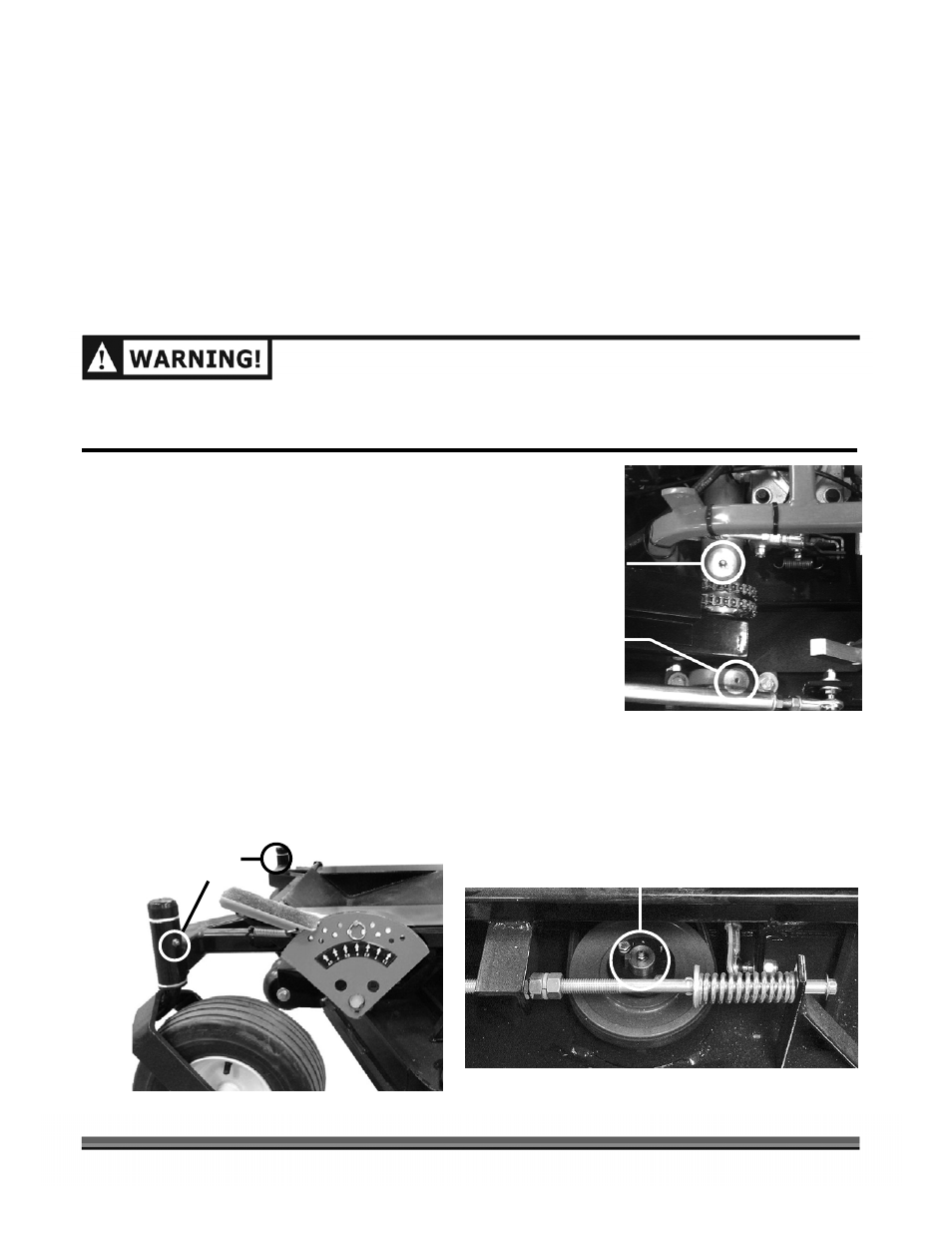

Lubrication
Your DR VERSA-PRO Z-MOWER was lubricated at the Factory. The operator needs to periodically
lubricate the Throttle Cable, Concentric Tubes, Main Arm Pivot Bearings,
Front Wheel Spindles, Blade
Spindles, and provide Engine lubrication.
Tools and Supplies Needed:
• Grease gun w/Lithium grease
•
SAE 30 Oil
WHEN PERFORMING ANY ADJUSTMENT OR MAINTENANCE, YOU MUST FIRST SHUT OFF THE ENGINE,
SET THE PARKING BRAKE, WAIT FIVE (5) MINUTES TO ALLOW PARTS TO COOL AND DISCONNECT THE
SPARK PLUG WIRE(S), KEEPING IT AWAY FROM THE SPARK PLUG(S).
1. Lubricate the Throttle Cable with SAE 30 Oil.
Apply the lubricant into the cable housing while
working the cable back and forth a few times.
You should do this at both ends of the cable.
Perform this lubrication more often in dry and
dusty environments.
2. Using Lithium Grease, lubricate the two (2)
Fittings on the Upper Concentric Tube and one
(1) Fitting on the Lower tube (Figure 9a).
3. Using SAE 30 Oil, lubricate the Lower Main Arm
Pivot Bearings, one (1) each side (Figure 9a).
4. Using Lithium Grease, lubricate the Blade
Spindles (Figure 9b).
5. Using Lithium Grease, lubricate the Front Wheel
Spindles (Figure 10) until grease starts to come
out of the weep holes.
Figure 9a
Concentric
Tube Grease
Fitting
Pivot Bearing
Oil Hole
Figure 10
Grease Fitting
– 1 each side
Figure 9b
Blade Spindle Fitting (3 places)
