Chapter 5 Ports and Connectors
Chapter 5
I/O Connectors

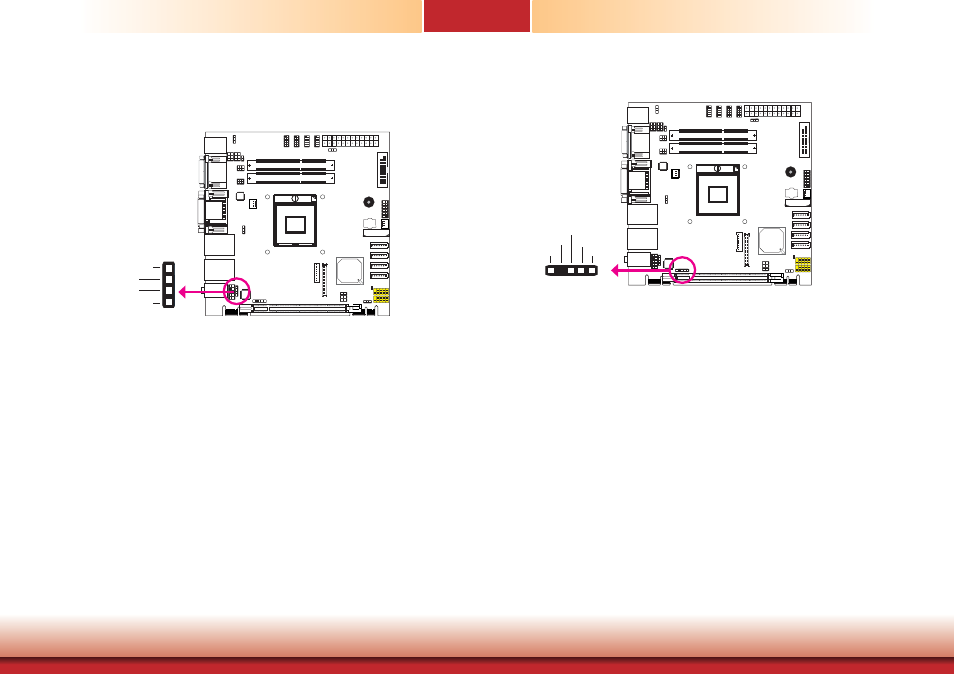

CD-in Internal Audio Connector
The CD-in connector is used to receive audio from a CD-ROM drive, TV tuner or MPEG card.
Right audio
channel
Left audio
channel
Ground
Ground
1
4
S/PDIF Connector
The S/PDIF connector is used to connect an external S/PDIF port. Your S/PDIF port may be
mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear
of the system chassis then connect the audio cable to the S/PDIF connector. Make sure pin 1
of the audio cable is aligned with pin 1 of the S/PDIF connector.
1 5
+5V
Key
SPDIF out
Ground
SPDIF in
