Control Options Setup 17
Boot Sequence
When the display is powered up, you will see a
boot sequence. The table defines the information
shown in the sequence and its meaning.
Entering Test Mode
Entering test mode causes the displays to cycle
through various pieces of information that can be
useful when working with Daktronics Technical
Support.
1. Press and hold the Plus -4 and +4 buttons on the key fob until the displays begin cycling through test
mode.
2. Exit test mode by pressing and holding the -4 and +4 buttons on the key fob until the displays return
to showing prices; approximately five seconds.
Power-Up Self Test
A useful troubleshooting tool is the power-up
self test performed by the host driver every time
the display powers up. If there is a problem, an
error code, shown in the left column of the table,
will appear on the display.
After the self test, each display is programmed
with a default price that corresponds to the line
number for which it is addressed. Changing
each line’s price overwrites these defaults.
6.2 FLR3-1500 and FLD3-2000 (Outdoor/Indoor) Control Kits
The Fuelight ™ Fuelink 3 Controller, shown in Figure 33, is a handheld
controller designed to operate Daktronics LED Fuelight ™ displays. It
connects to the display as a part of one of the following two control kits:
6.3 FLR3-1500 Connection
Uses two fixed-mount radios and has a maximum range of 1,500 feet
between radios.
General Radio Setup
1. Choose an installation location:
• Mount both radios outdoors
• Antennas must point upward
• Leave 360-degrees of open space around antenna
• Client radio within 25 feet of display
• Mount radios a minimum of 20 feet apart
Information Shown
on Display
Meaning of Information
FLx
x = 3, 3000 Series Fuelight Display
(3rd digit control, U.S.)
x = 4, 4500 Series Fuelight Display
(4th digit control, International)
Rxx xx = Revision
Axx xx = Venus 1500 Address
Lxx xx = Line Number
Information Shown
on Display
Meaning of Information
E10
Temperature over 75°C – normal
controller operation)
E11
Temperature over 85°C – report this
error message to Daktronics Customer
Service
Exx
All other error codes relate to the
display driver. Contact Daktronics for
more information or to order a new
driver.
0
1 2 3
4 5 6
7 8 9
UPDATE
DISPLAY
DIMMING
MENU
ENTER
*
EDIT
CLEAR
SET FUNCTION
LL-2551
DM-100


FUELINK 3
CONTROLLER

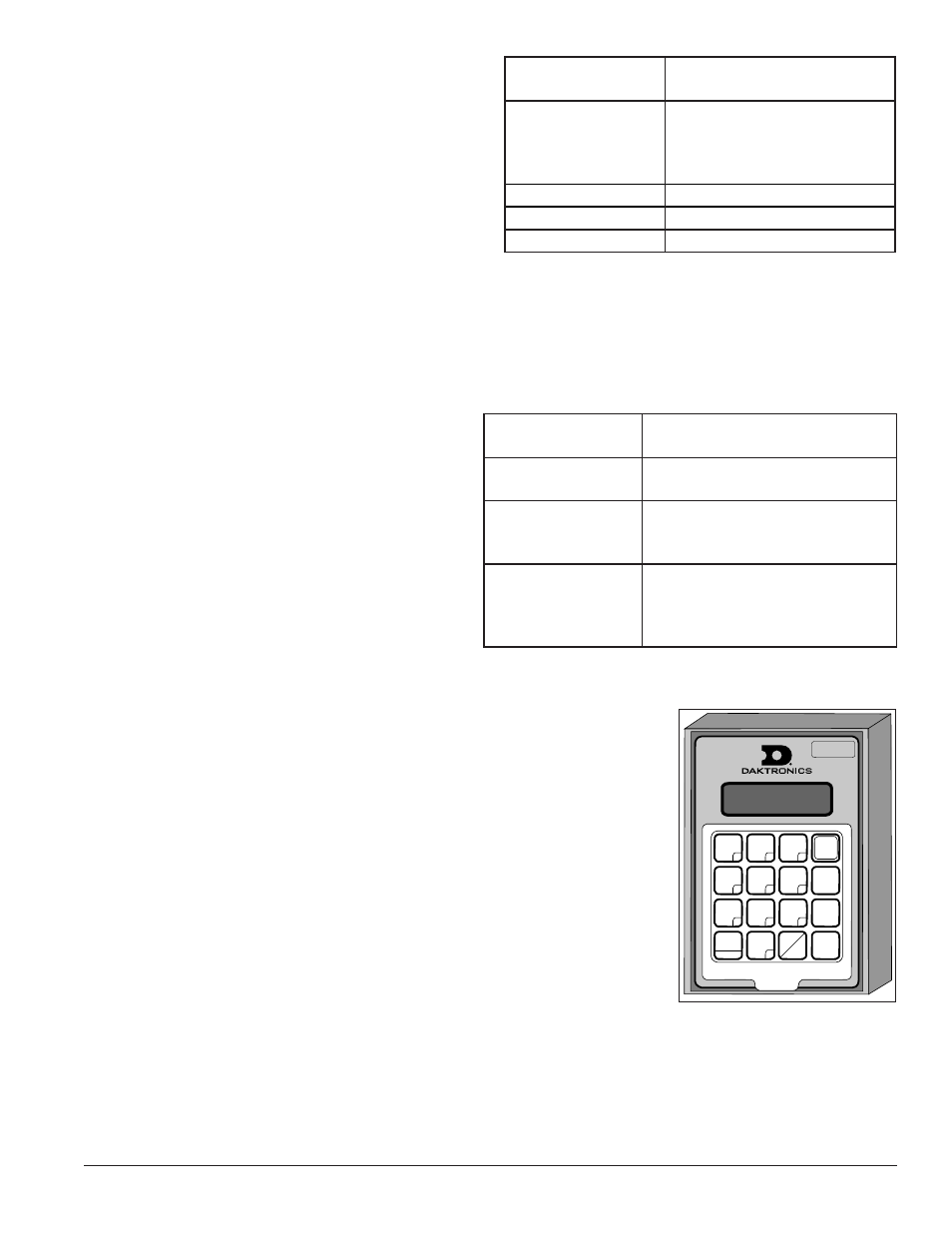

Figure 33: Handheld Controller
