10 Display Interconnections
3. Place the 6-32 nut on the stud and tighten it with a 5 /
16
” nut driver, as shown in Figure 13.
4. Route the provided line-to-line cable from the host
driver jack J9 to the next client display driver,
connecting to jack J10, as shown in
Figure 14.
5. Run cable through the knockouts located on the
display’s backsheet and be sure to use the provided
cable bushings that snap into place.
6. Repeat until all displays are connected.
Note: Do not connect the last display driver back to
the host.
Important Notes:
• Route cables at least 6 inches away from interfering
sources like ballasts, florescent light bulbs, power
sources, any type of motor, etc.
• Pull excess cable into the display cabinet, coil cable,
zip tie it together and carefully place coil inside the
display cabinet.

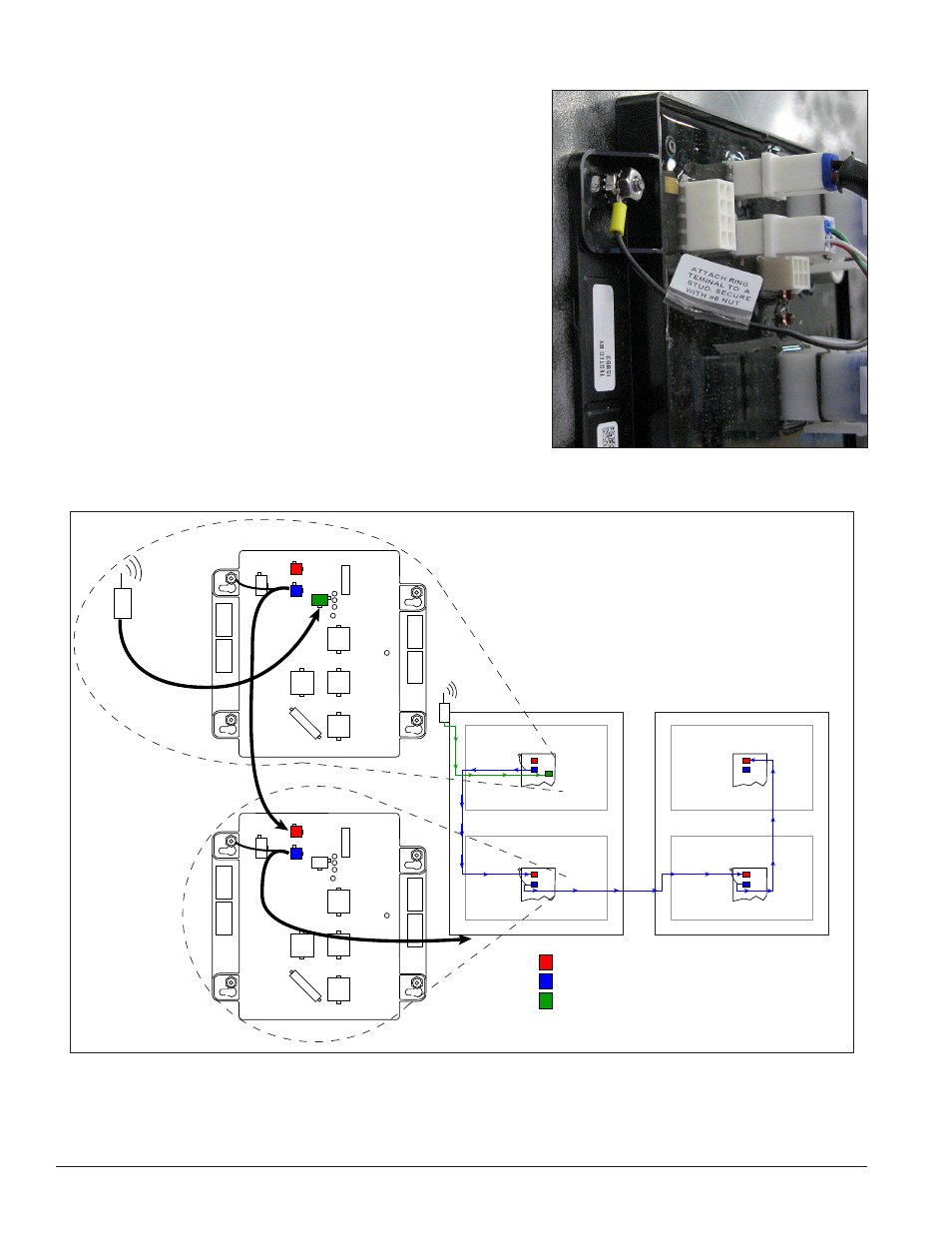

Figure 13: Installed Drain Wire
Face 1
Price 1
Price 2
Host Driver - Comm Attached
Face 2
Price 1
Price 2
J10 - Line In
J9 - Line Out
J16 - Comm Port
J10
J9
J16
LINE TO LINE
COMM
PORT
J10
J9
Figure 14: Line-to-Line Cable Installation
