12 Cash/Credit Display Installation
5.2 Display Identification

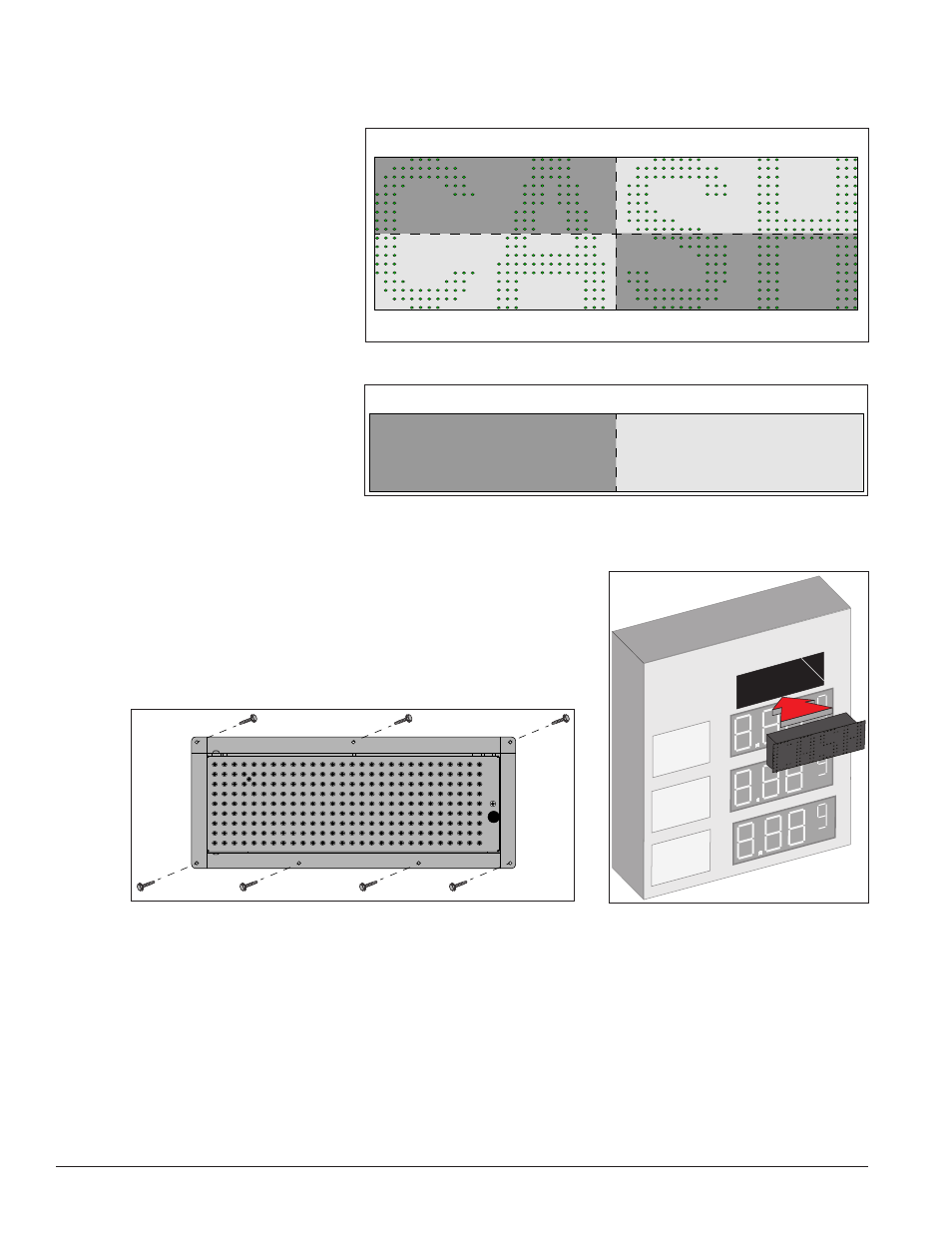

Identify 2H x 2W cash/credit modules by their position when viewed from the front, as shown in Figure 21.
Figure 22 shows the identification
used for an alternate size 1H x 2W
display.
5.3 Installing the Display
A rectangular opening must be
provided to accommodate the
Cash/Credit
™ display. Consult
the shop drawing for cutout
dimensions.
1. Lift displays into the
support structure.
Figure 23 shows a display
being inserted into a
support structure.
Note: Daktronics assumes
no liability for display
damage or injury resulting
from incorrect setup or
incorrect lifting methods.
2. Drill through the front flanges of the cabinet to attach the
display to the base structure using appropriate hardware for
site conditions, as shown in
Figure 24. Actual site demands
will dictate variances and appropriate mounting methods.
Top Left Top Right
Bottom Right
Bottom Left
Figure 21: 2H2W Display Identification
Left Right
Figure 22: 1H2W Display Identification
CORNER GAS
UNL
REG
DSL
Figure 23: Inserting Display Into Cabinet Figure 24: Secure Display in Sign Structure
