Cash/Credit Display Installation 11

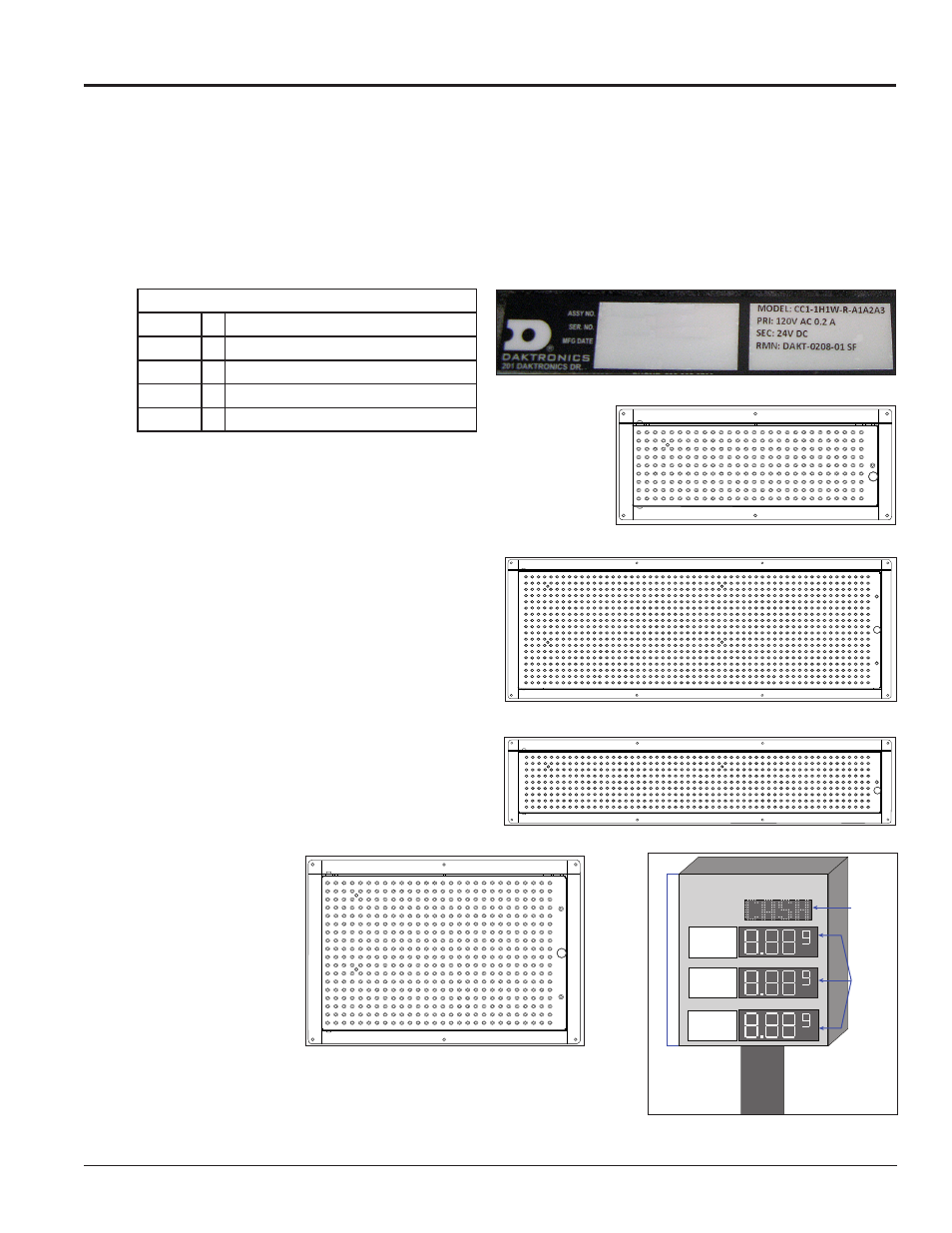

Section 5: Cash/Credit Display Installation
Cash/Credit displays are drop-in displays designed for installation with Fuelight price displays. Green or red LEDs
are used in Cash/Credit
™ displays to illuminate text.
An FLR3-100/400 key fob remote or a DM-100 handheld controller are used to control Cash/Credit ™ displays.
5.1 Display Overview
Cash/credit display model numbers - CC1-XHXW-R-DI - are defined as follows:
Note: The model number is listed on a label located inside the
display, as shown in
Figure 15.
The Cash/Credit series includes the following standard sizes:
1. 1H x 1W - See Figure 16
2. 2H x 2W - See Figure 17
3. Alternate Size - 1H x 2W - See Figure 18
4. Alternate Size - 2H x 1W - See Figure 19
A typical display system is shown in Figure 20.
CC1-XHXW-C-DI
CC1
= First Generation Cash/Credit Series
H = Modules High
W = Modules Wide
R, G = Color (R= Red, G = Green)
DI = Drop In
Figure 15: Cash/Credit Model Label
Figure 16: Cash/Credit 1H1W Display
Figure 17: Cash/Credit 2H2W Display
Figure 18: Cash/Credit 1H2W Display
Figure 19: Cash/Credit 2H1W Display
CORNER GAS
UNL
REG
DSL
Fuelight Displays
Face
Cash/Credit
Display
Figure 20: Face With Cash/Credit and
Fuelight Displays
