Mechanical Installation 5
2.5 Installing the Display on Horizontal Beams
See Drawing B-1154625 for more detailed information
regarding this type of installation. Use the display
shop drawing to locate the holes used to attach the
mounting hardware in this installation type.
Two horizontal beams must be provided to
accommodate the Fuelight
™ Petroleum Price display
for this installation.
1. Attach six clip angles to the back of the
display using 3/8-16 hardware kit, shown in
Figure 6, which includes the following parts:
• 3/8-16 Threaded Insert
• Clip Angle
• Lock Washer
• 3/8-16 Bolt
2. Use lift eyes to lift the display into position on the horizontal
beams.
3. Weld or use appropriate hardware to secure the clip angles
to the beams, as shown in Figure 7.
3/8-16 Bolt
Lock Washer
Clip Angle
3/8-16 Threaded Insert

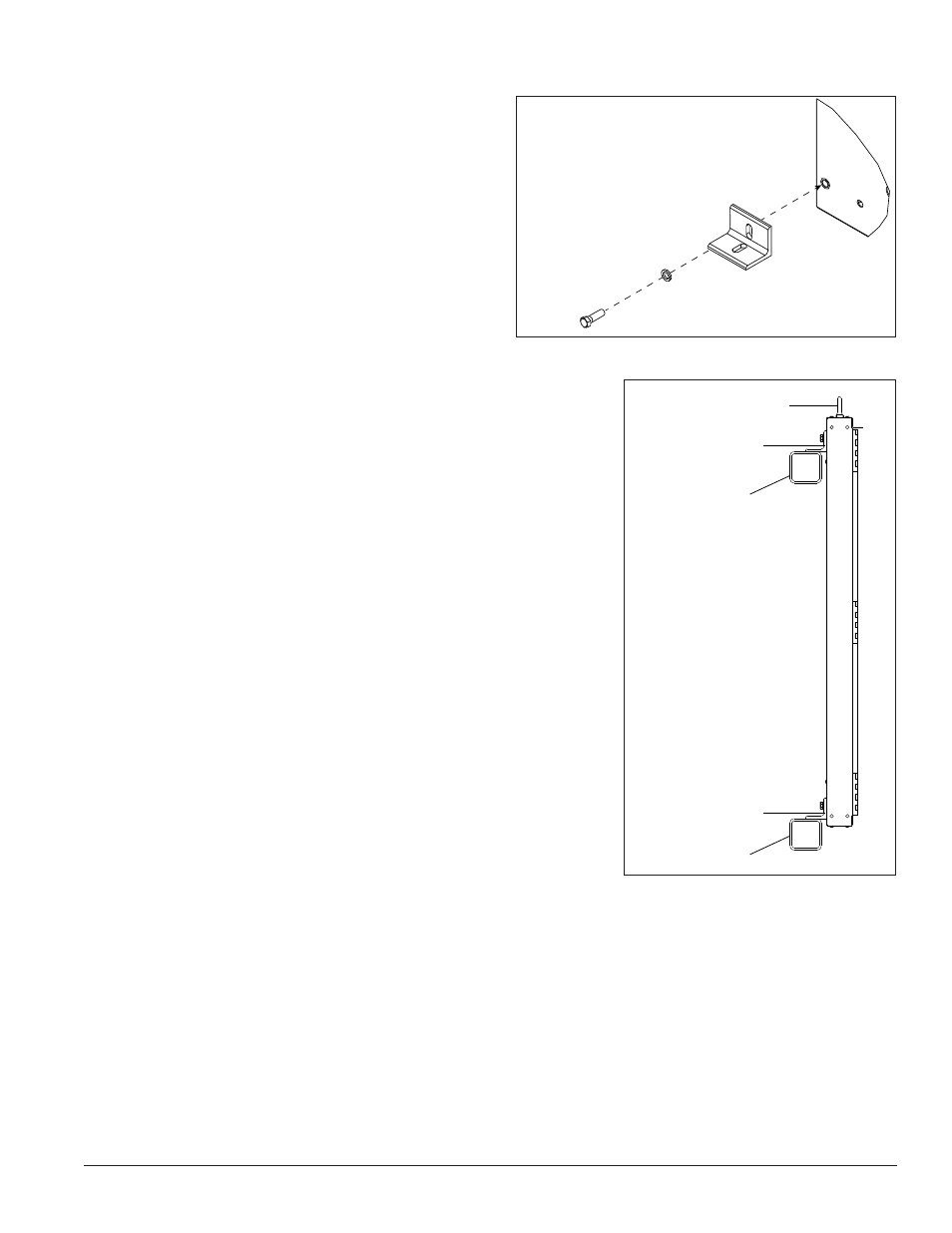

Figure 6: Install Clip Angles to Back of Fuelight Display
Lift Eye
(removed after
installation)
Clip Angle
Horizontal Beam
In Sign Structure
Di
s
pla
y
F
a
c
e
Clip Angle
Horizontal Beam
In Sign Structure
Figure 7: Side View of Fuelight Display
Mounted on Horizontal Beams
