Section 6: Control Options Setup
Refer to the quick guides provided with display communications for more information on signal
installation.
Find communication installation videos at
.
Use FLR3-100, FLR3-400, FLR3-1500, and FLD3-2000 (indoor or outdoor) control kits to change
petroleum prices displayed on the LED Fuelight
™
Petroleum Price displays. The following
instructions discuss the functions the operator uses to control the Petroleum Price display with
each control type.

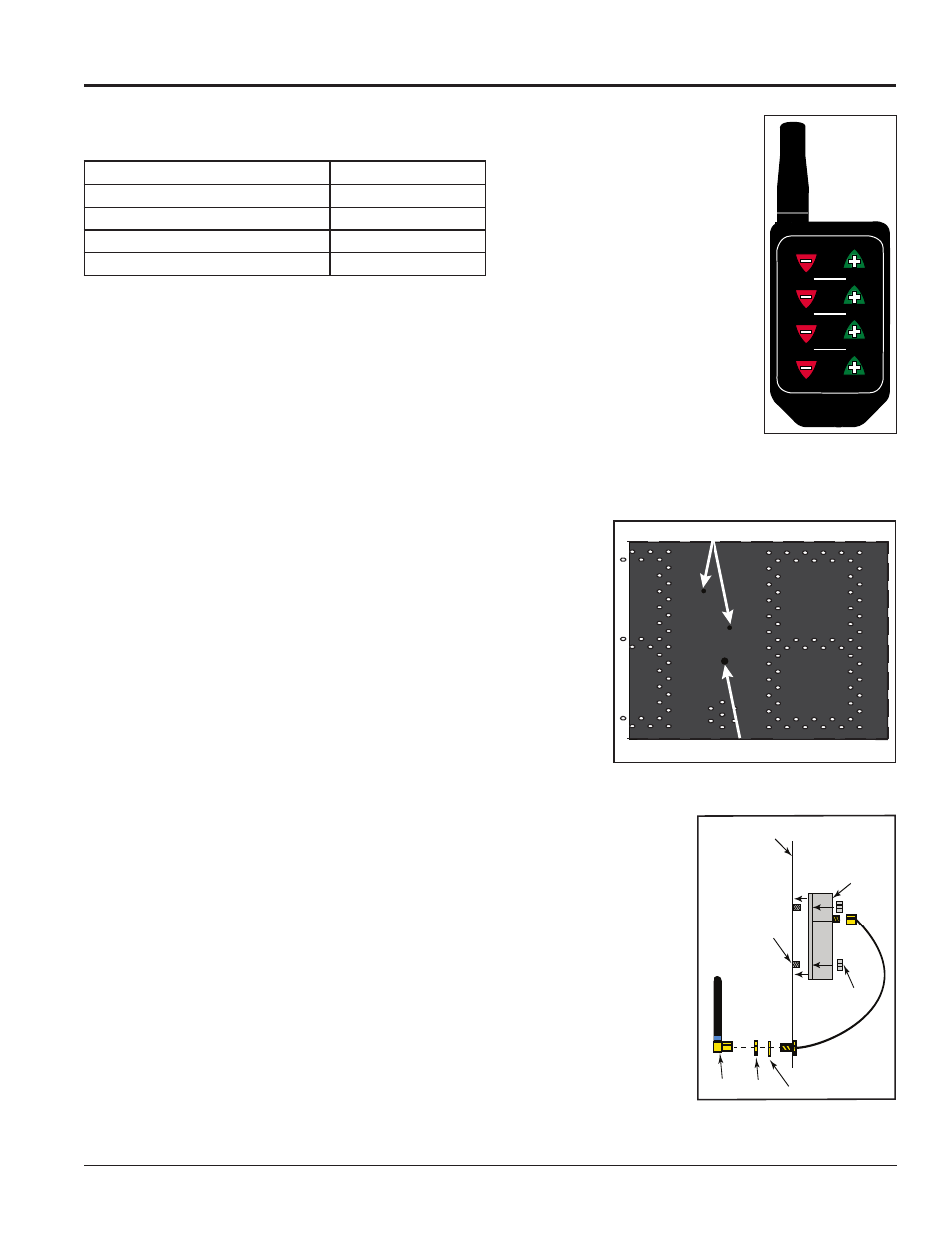

6.1 FLR3-100 and FLR3-400 Control Kits
Control four unique prices on multiple faces with the FLR3-100 and FLR3-400 control
kits, which uses a key fob remote, shown in
Figure 28. FLR3-100 kits have a maximum
range of 100 feet, while FLR3-400 kits have a maximum range of
400 feet.
Installing the Receiver
1. Using a flat-head screwdriver, open the digit face to access
inside the digit cabinet.
2. Remove both antenna hole plugs from the digit face. Refer to
3. Place the receiver on to the mounting studs on the back of the
digit face. Refer to
4. Use a
5
/
16
” nut driver to secure the receiver to the mounting
studs using the two provided nuts.
5. Place the threaded end of the antenna cable through the antenna hole.
6. Place the flat washer over the threaded end of the antenna cable. Refer to
7. Thread the provided nut on to the threaded end of the antenna cable and
tighten using an
11
/
32
” wrench.
8. Thread the female end of the antenna on to the threaded end of the antenna
cable and turn the antenna clockwise until snug. Refer to
LL-2855 REV00
CONFIG
ADDR
SYNC
4
3
2
LINE
1
TEST
1
2 3 4 5 6 7 8 9 0
ON
1
2 3 4 5 6 7 8 9 0
ON
Figure 28: FLR3-
100/FLR3-400 Key
Fob
Quick Guide
Document Number
FLR3-100 Installation Quick Guide
FLR3-400 Installation Quick Guide
FLR3-1500 Installation Quick Guide
FLD3-2000 Installation Quick Guide
Antenna Hole Plug
AH
Mounting Stud
Figure 29: Digit Door Receiver Mounting
Receiver
Antenna
Mounting Stud
Nut
Digit Face
Nut
Washer
Figure 30: Mounting Profile
