Delta Temperature Controller User Manual
© DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED - 25 - 2007-09-17

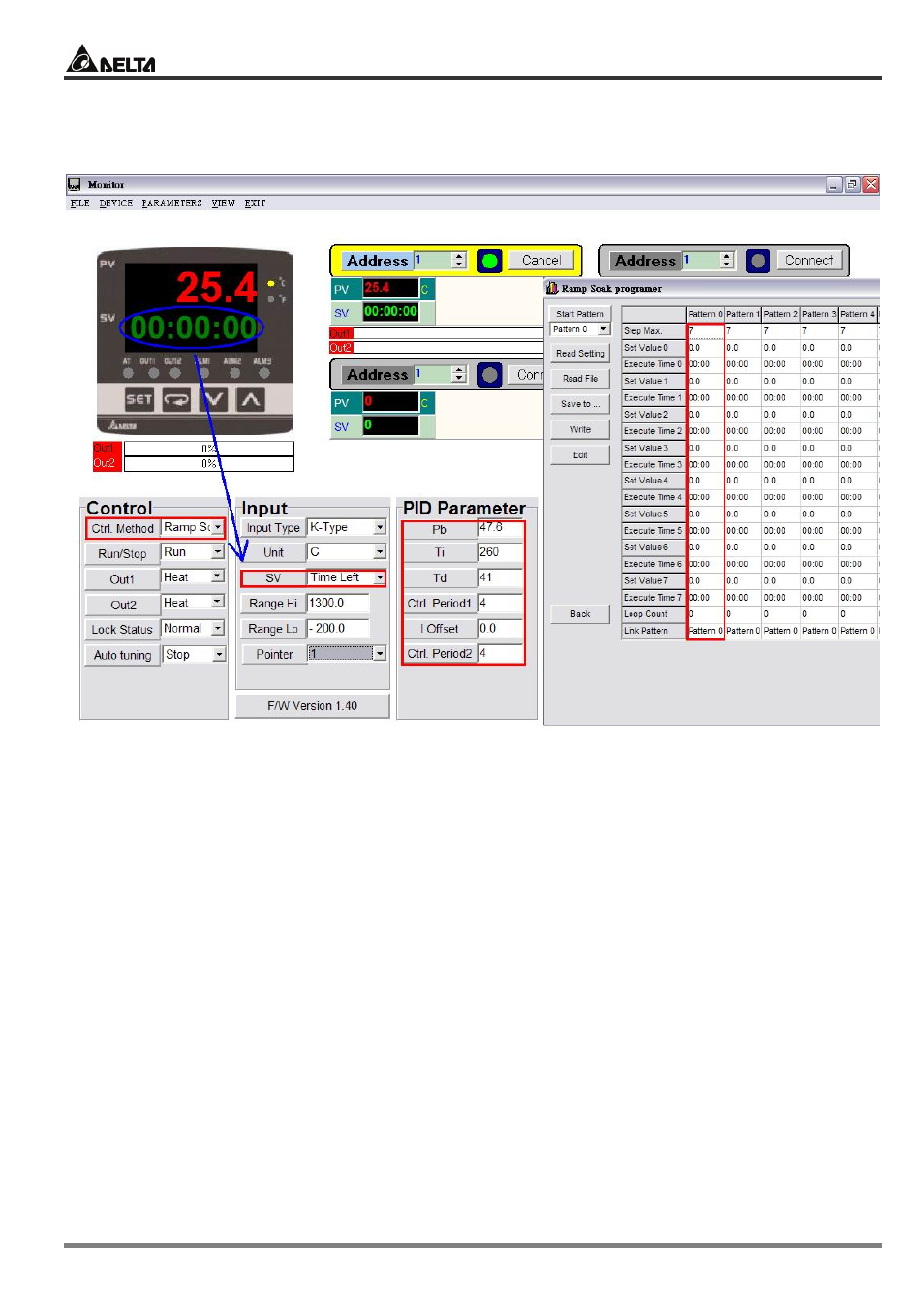

4.4 PID PROG
Switch the control mode to PID PROG mode
ƒ The 64 steps come from the combination of 8 patterns and 8 steps for each pattern. You can
establish maximum 64 steps according to different systems in use.
ƒ There are 8 steps in each pattern. You can define the step, loop and link pattern in each pattern.
