Delta Temperature Controller User Manual

© DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED - 15 -

2007-09-17

CHAPTER 3:

C

ONTROL

M

ODES IN

D

TB

3.1 ON/OFF

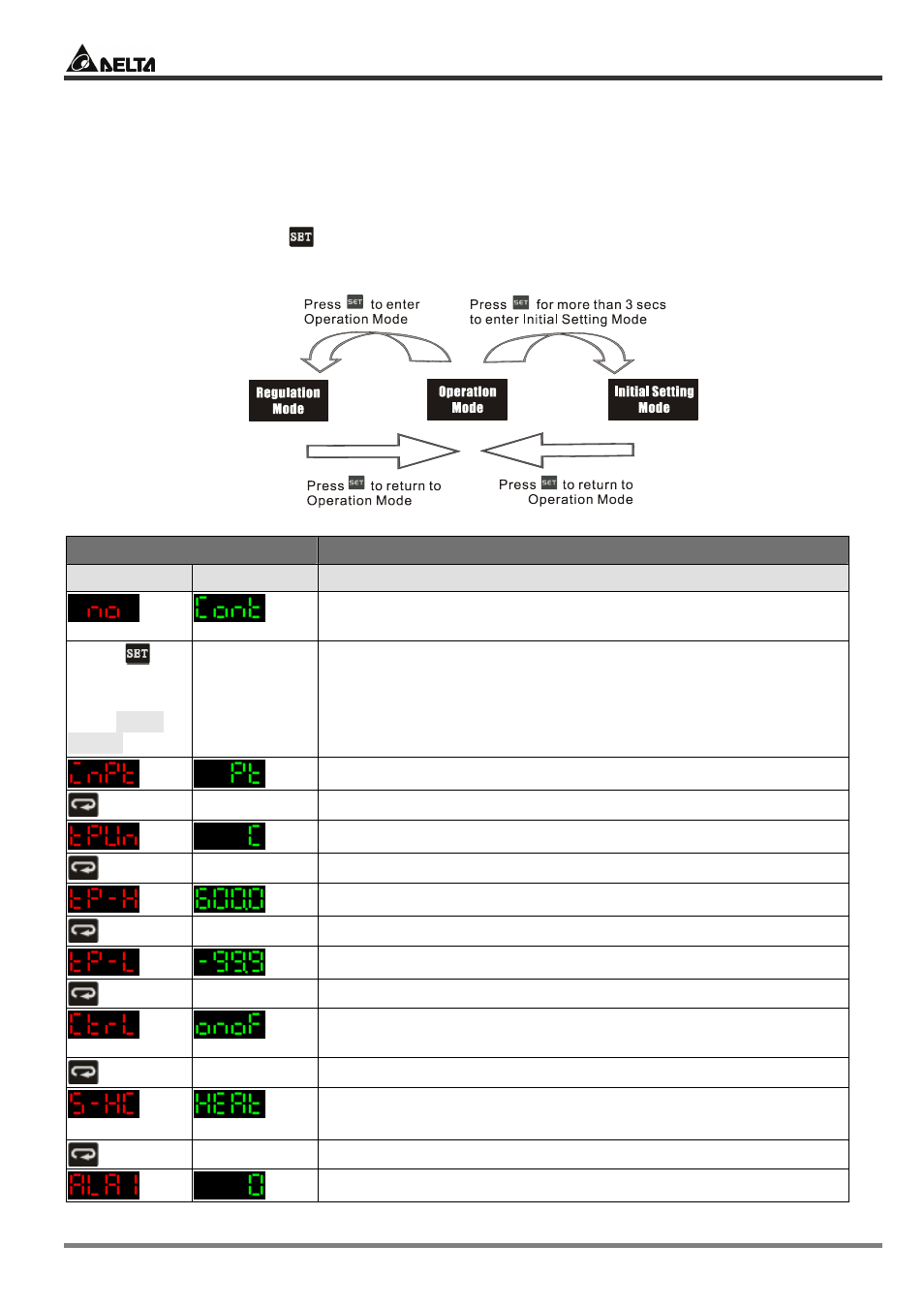

There are four control modes in DTB: ON/OFF, MANUAL, PID and PID PROG. To switch to
ON/OFF mode, first press

for 3 seconds to enter the “initial setting” mode. See below for how

to switch between each mode:

Display

Explanations

PV

SV

Status of the temperature controller

Message displayed when DTB has not yet been connected to a
sensor.

Press

for

more than 3
seconds to
enter initial
setting mode

Select the sensor connected. Default = PT100

Temperature unit. Default = °C

Upper limit of temperature range

Lower limit of temperature range

The control modes include: ON/OFF, MANUAL, PID and PID
PROG. Default = PID. Select “ON/OFF” here.

Select heating/cooling/heating 1 cooling 2/heating 2 cooling 1.
Default = heating

Set up Alarm mode 1. Default = alarm output disabled.
