Comtech EF Data ROSS User Manual
Page 83
ROSS
MN/13070
Comtech EF Data/Orbit Hardware Control Wiring:

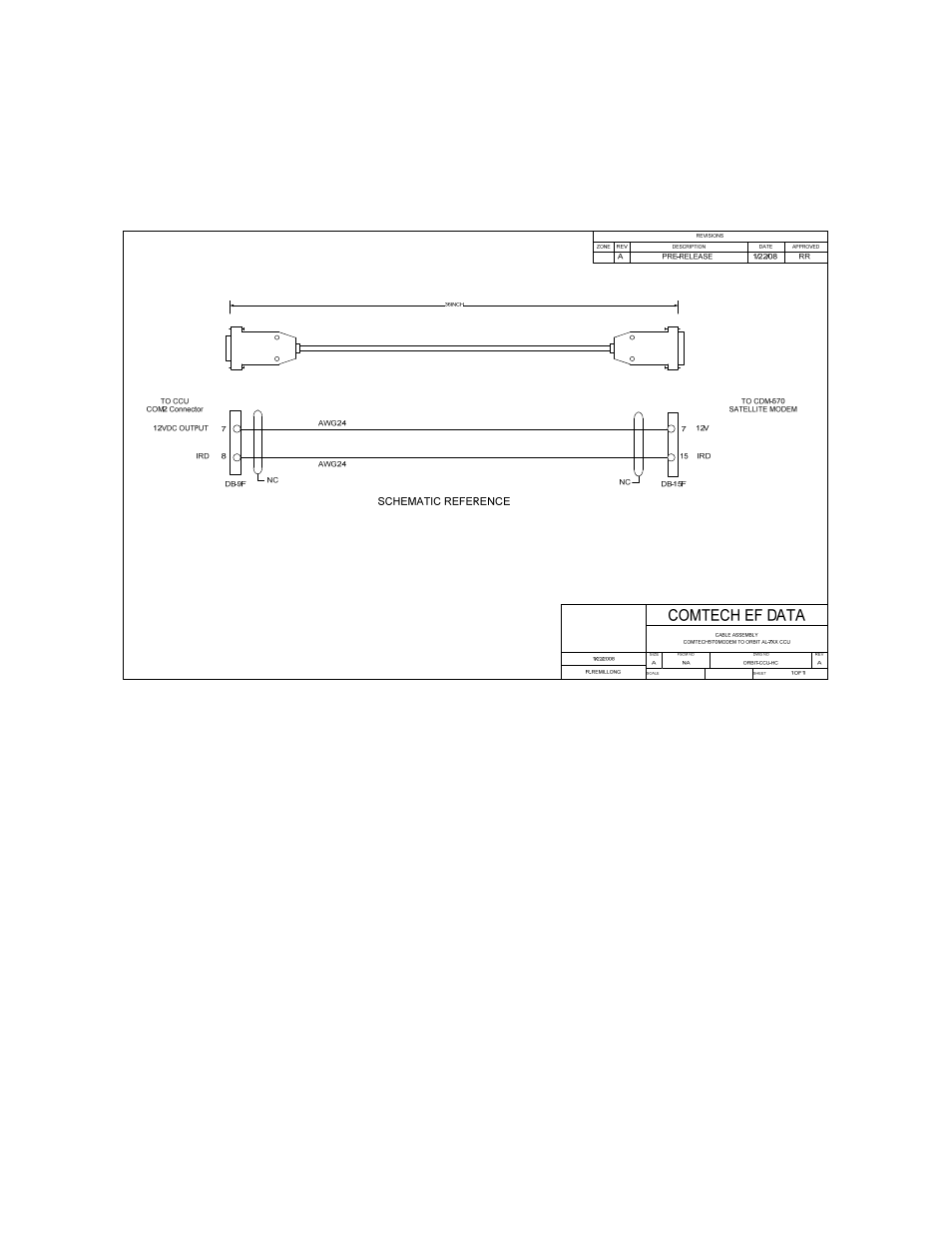

The cable assembly in figure 13 below interconnects the hardware control lines between the
Orbit OrSat AL-71xx. Consult the Orbit documentation for more detailed information about the
installation and configuration of the Orbit antenna system.
Figure 13, Modem to CCU Cable Connection
Comtech EF Data, Vipersat Products
Page 83 of 87
