ROSS MN/13070
ACU SYSTEM TYPE:
This determines the system options according to the following table. Add together all the desired
options to determine the proper entry. These are typical settings and users should refer to your
antenna manual.
128 Reverse External Modem Lock input polarity (logic hi = lock)
64* Enables LNB voltage output
32 Display Relative in the Azimuth entry display
16 Reverse blockage output logic (SW2 logic hi = blocked)
8* Enable AFC in NBIF Mode
4* Auto SAT load after SEARCH failure
2* Enable External Modem Lock Input (logic low = lock)
1* Auto SAT load on “hot” RESET and ACU Power-Up
79*

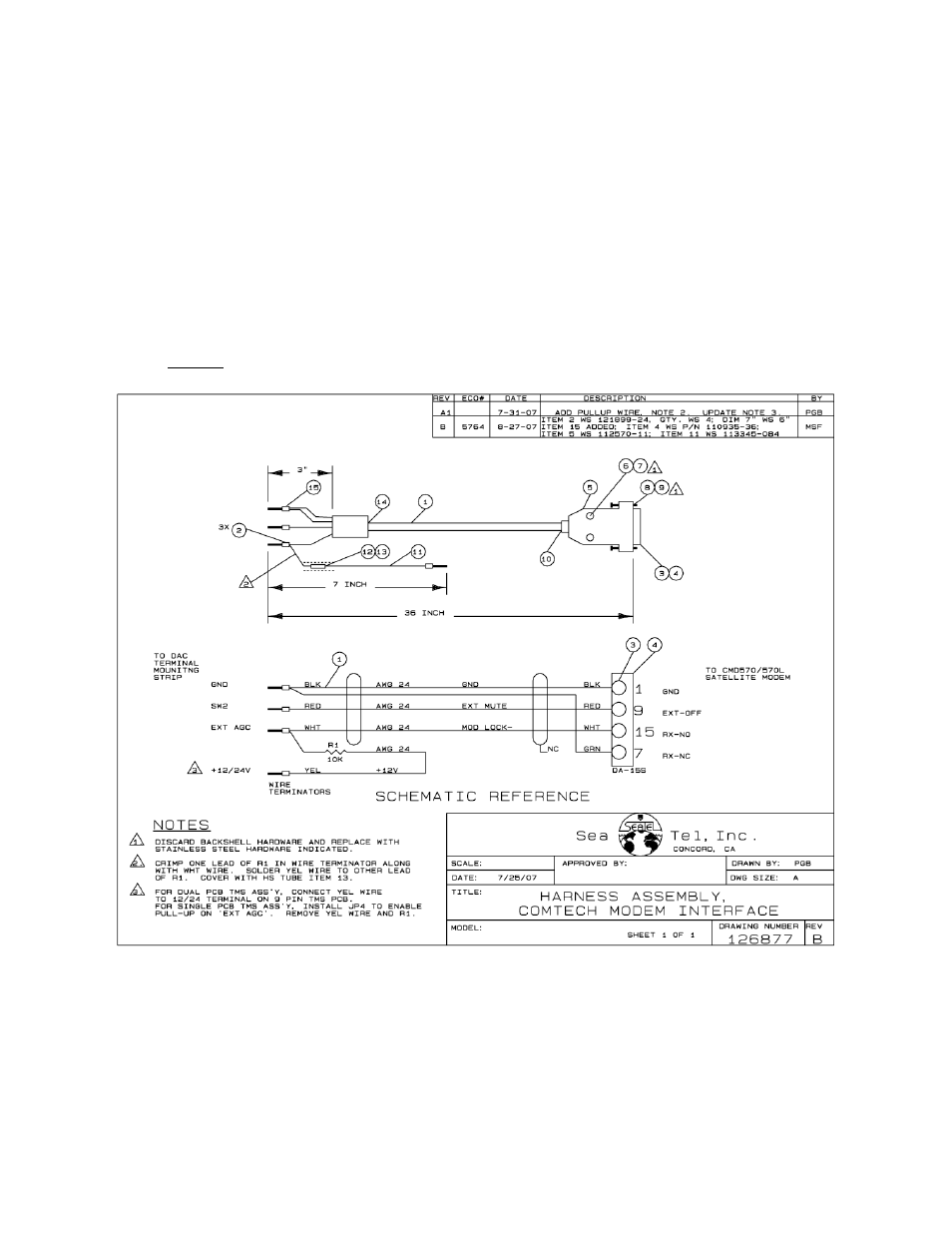

Figure 12, Comtech 570 Modem Interface Cable Assembly
