ROSS MN/13070
Front Panel:
Buttons
• Power On/Off button
• System Reset button
LED Indicator Lamps:
• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
LCD Keypad Interface:
• 16x2 illuminated LCD display
• Four navigation keys (up, down, left, right)
• Cancel Key
• Select/Enter Key

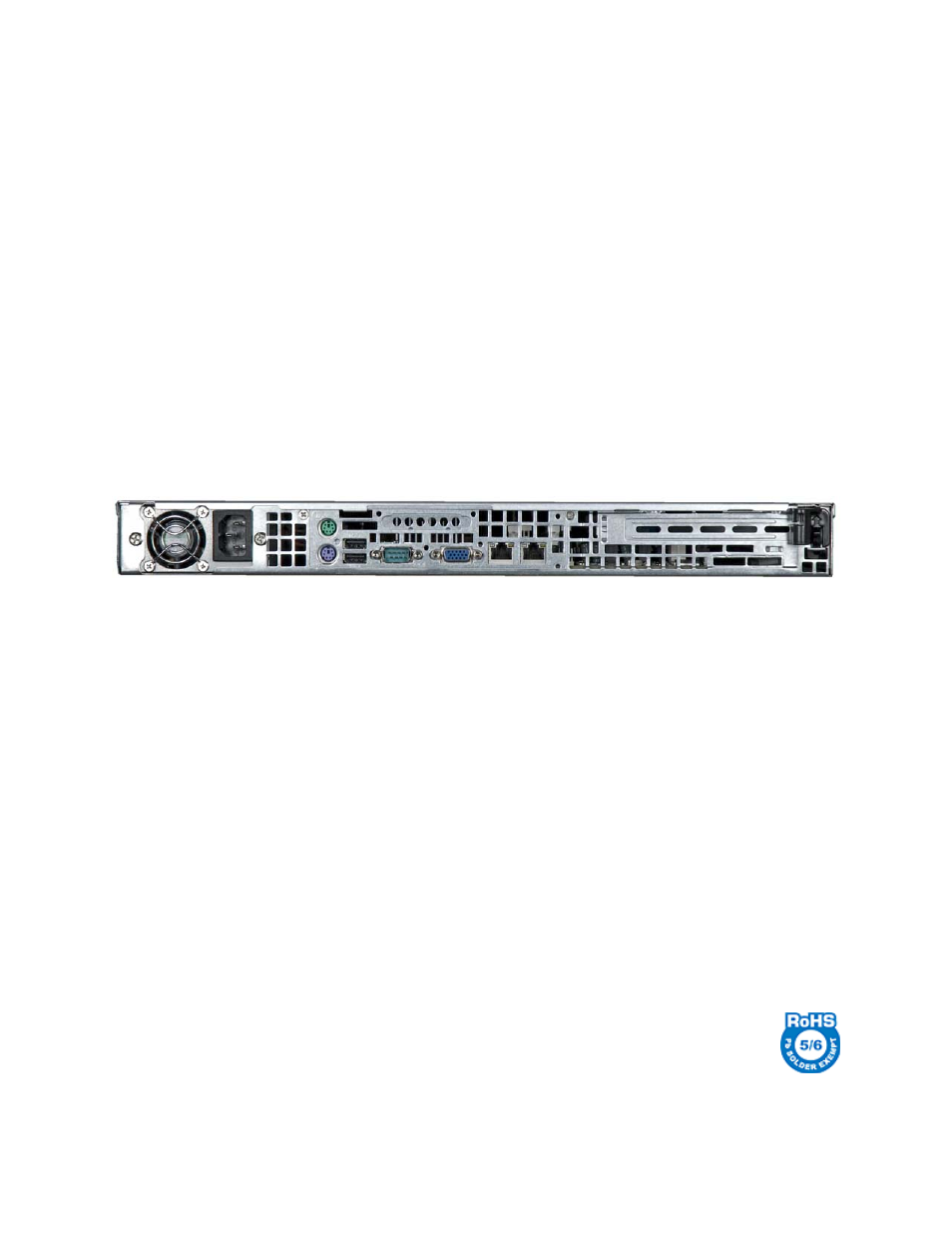

Rear Chassis View
Rear Panel Ports:
• 2x Network Interface – Ethernet 10/100/1000 BaseT, NIC 1, left port only used
• 1x RS-232 – Local Console, User Interface
• 2x USB – Re-Imaging or Upgrades
Operating Environment (ROSS System):
• Operating Temperature, 32° to 104°F, (0 to 40°C)
• Non-Operating Temperature, -40° to 158°F, (-40 to +70°C)
• Operating Humidity Range, 8 to 90% non-condensing
Power Supply:
• AC Voltage, 100 – 240V, 60 - 50Hz, 5Amp
Dimensions:
• 1U Rack Mount
• Height 1.7” (43mm), Width 16.8” (427mm), Depth 14.0” (356mm)
• Gross Weight 14lbs (6.4kg)
