Digicast Media Router S2 Receiver CMR-5970 (MR-S2) & CMR-5990 (MR-S2-ASI) Revision A
Device Management via User Interfaces MN/MRS2ASIDC.IOM
4.2.4 Egress Configuration (MR-S2-ASI only)

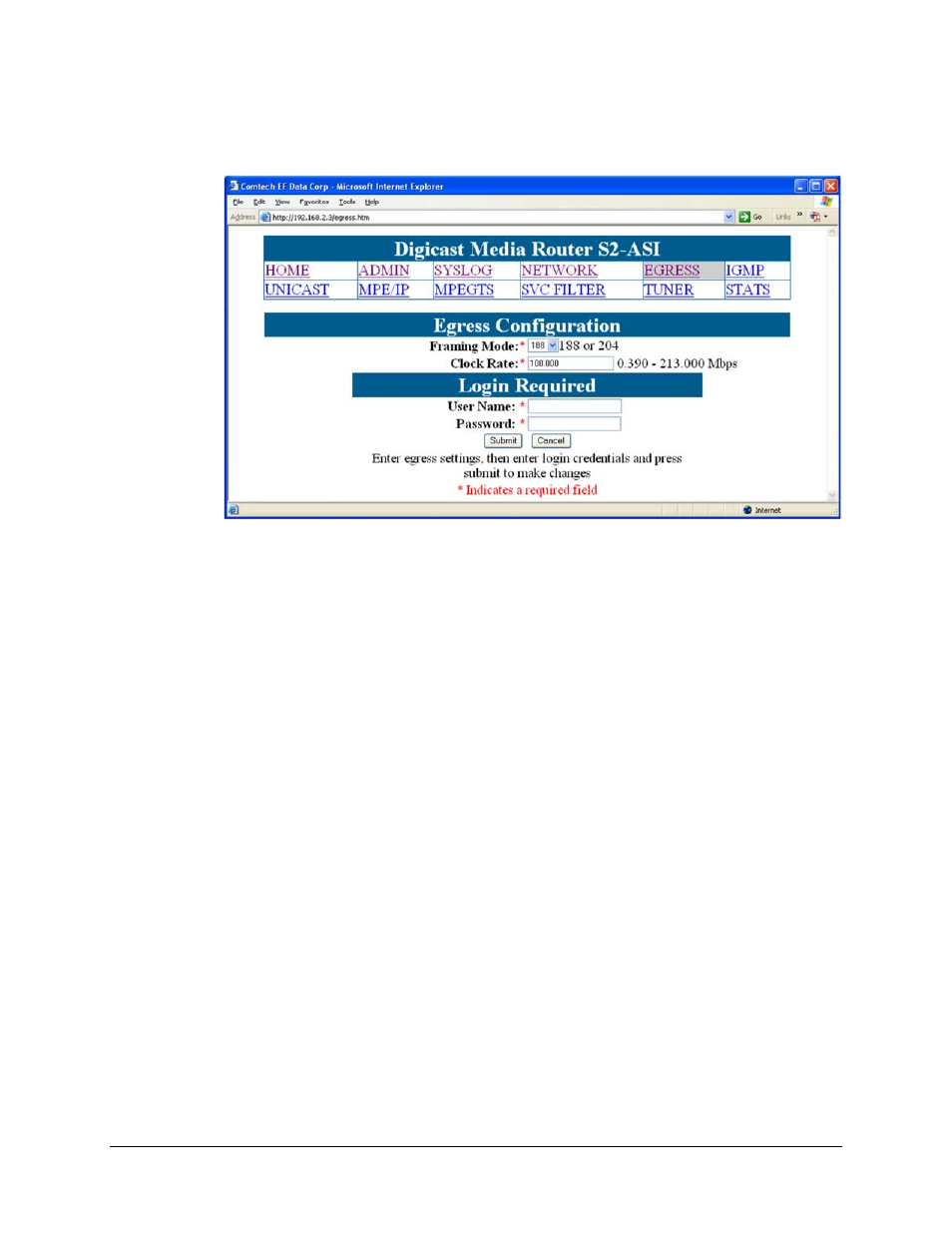

Figure 4-6. Egress Configuration page (MR-S2-ASI only)
The Egress Configuration page addresses the PID Filter’s configuration for the ASI
egress interface, and has following configurable parameters:
Framing Mode
Selects whether the ASI operates with either 188-byte or 204-byte packets.
Clock Rate
Sets the bit rate of the ASI Output interface in Mbps.
4-6
