CRS-150 1:1 Redundancy Switch Revision 2
Cables and Connections MN/CRS150.IOM
4–12
4.2.5.5 ASI Data Interface Example

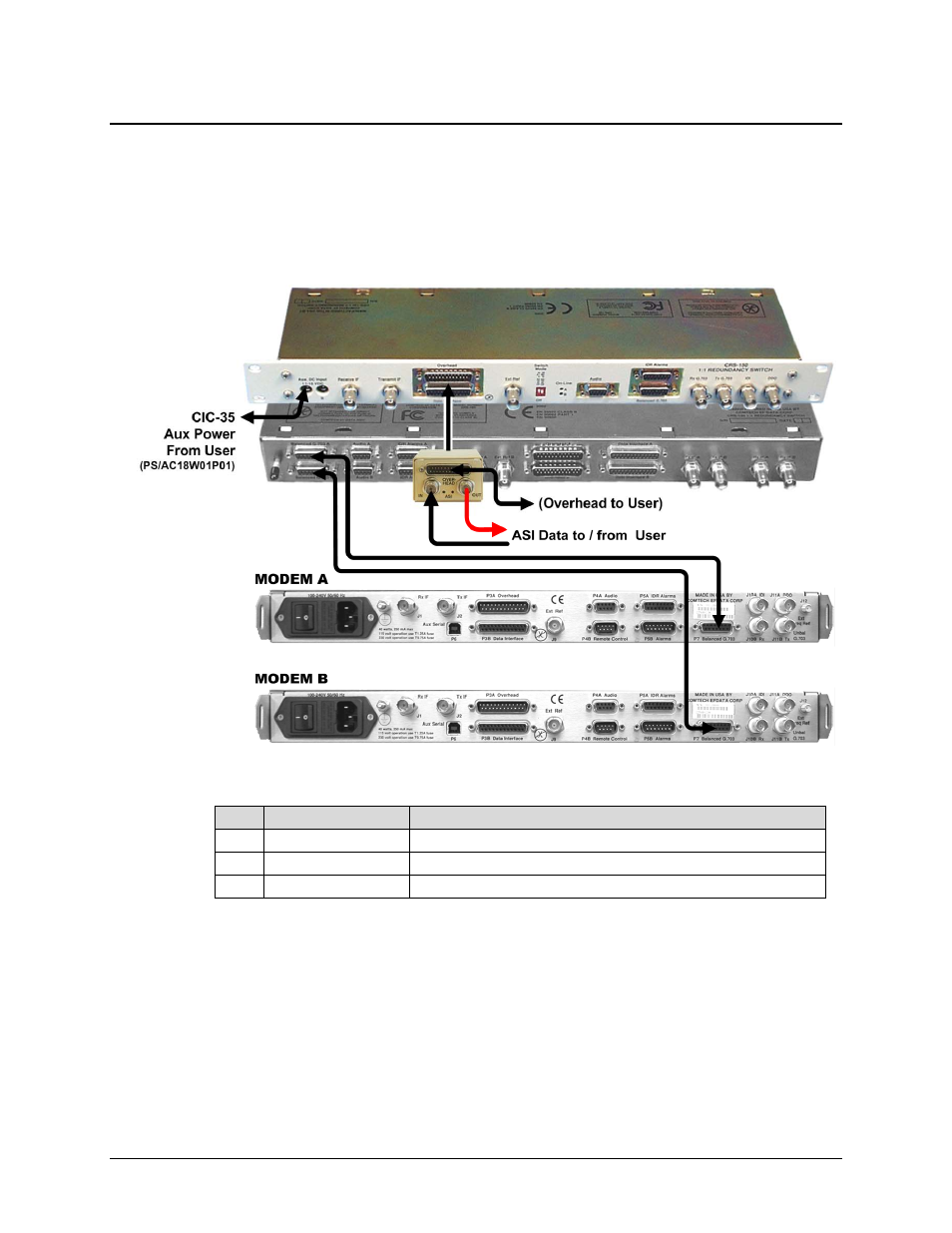

Figure 4-10 shows the cabling example of a CDM-600 HSSI 1:1 modem configuration using the
optional CIC-35 DVB-ASI/LVDS Interface Converter. This module converts the DB-25F Data
Interface connector on the CRS-150 front panel into the BNC connector pair used for the ASI data
interface. The module’s DB-25F connector interface facilitates data pass-through for the DB-25M
Overhead data user connection.
QTY Part No. Description
2 CA/WR9563-4 Data Cable, DB-15M Æ DB-15M (4’)
1 PL/10335-1 CIC-35 ASI to LVDS Interface Converter
1 PS/AC18W01P01 Auxiliary Power Supply for CIC-35
Figure 4-10. ASI Example
