Cadac CDC four - Manual (Page 27)

Revision 1 2012-13 CDC FOUR
27

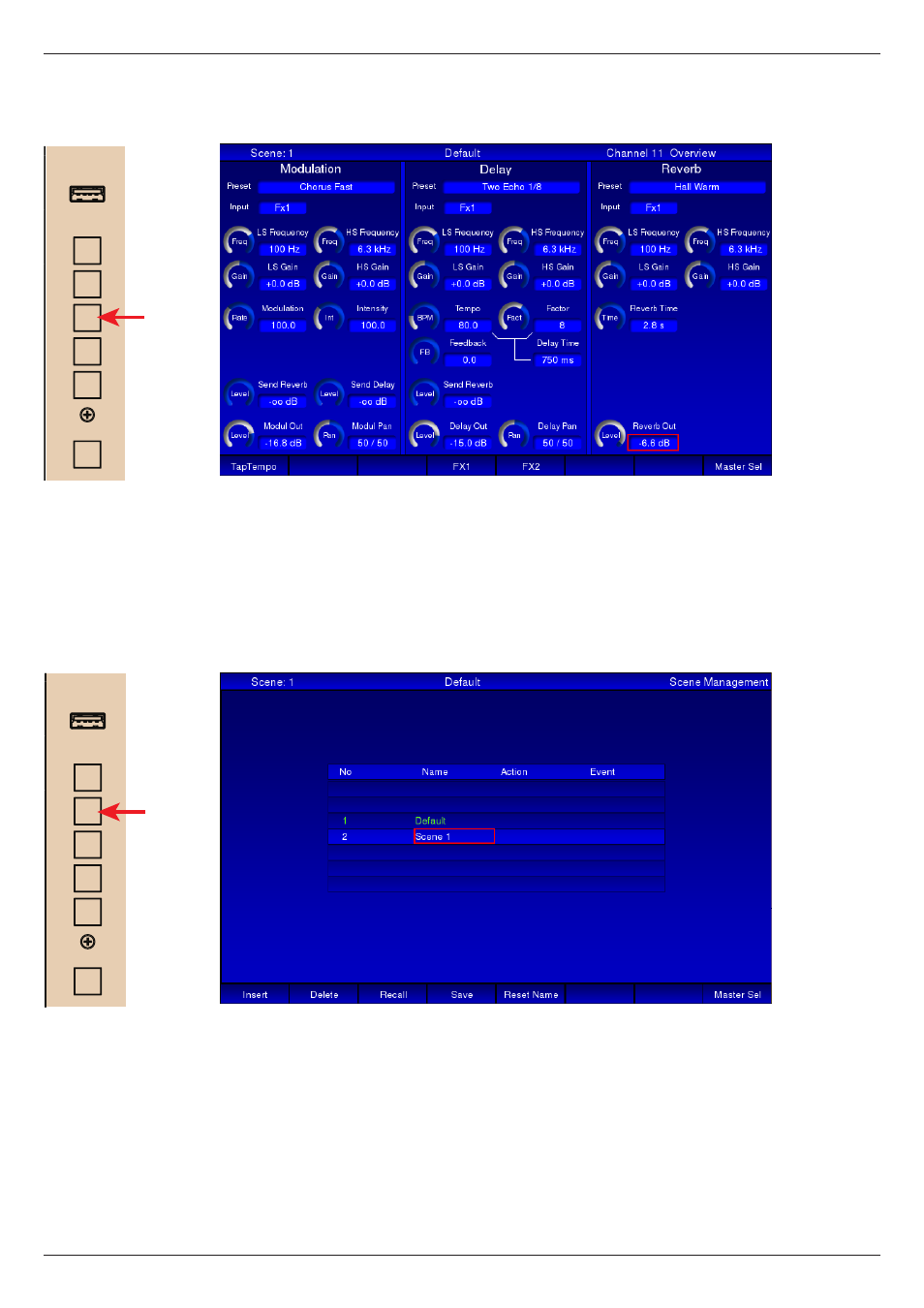

FX: this page allows control of the CDC FOUR’s two internal FX processors.
The processors’ inputs are two “virtual busses”, FX1 and FX2, which can be
used in the same way as any of the Aux sends. The outputs may be routed to the
stereo output and their FX return levels controlled by faders 13 and 14 when the
OUTPUTS layer is active.
See “FX processing” on page 58 for more information.
SCENE: the Scene page is concerned with the CDC FOUR’s scene memory.
The CDC FOUR is equipped with a “snapshot”-style scene automation system,
which allows all current console parameters (both switch and rotary control
settings) to be saved as a Scene. Scenes may be named and assembled into
a performance sequence off-line, and then, during performance, recalled by
a single button press. This allows the mixer to easily and seamlessly switch
between complex set-ups to suit, for example, successive scenes of a stage
drama, or different musical numbers. The motorised faders form part of the scene
memory, and when a Scene is recalled, will assume the position they were in
when the Scene was saved.
See “Scene Control” on page 67 for more information.
