SVR-8000S User’s Manual
85

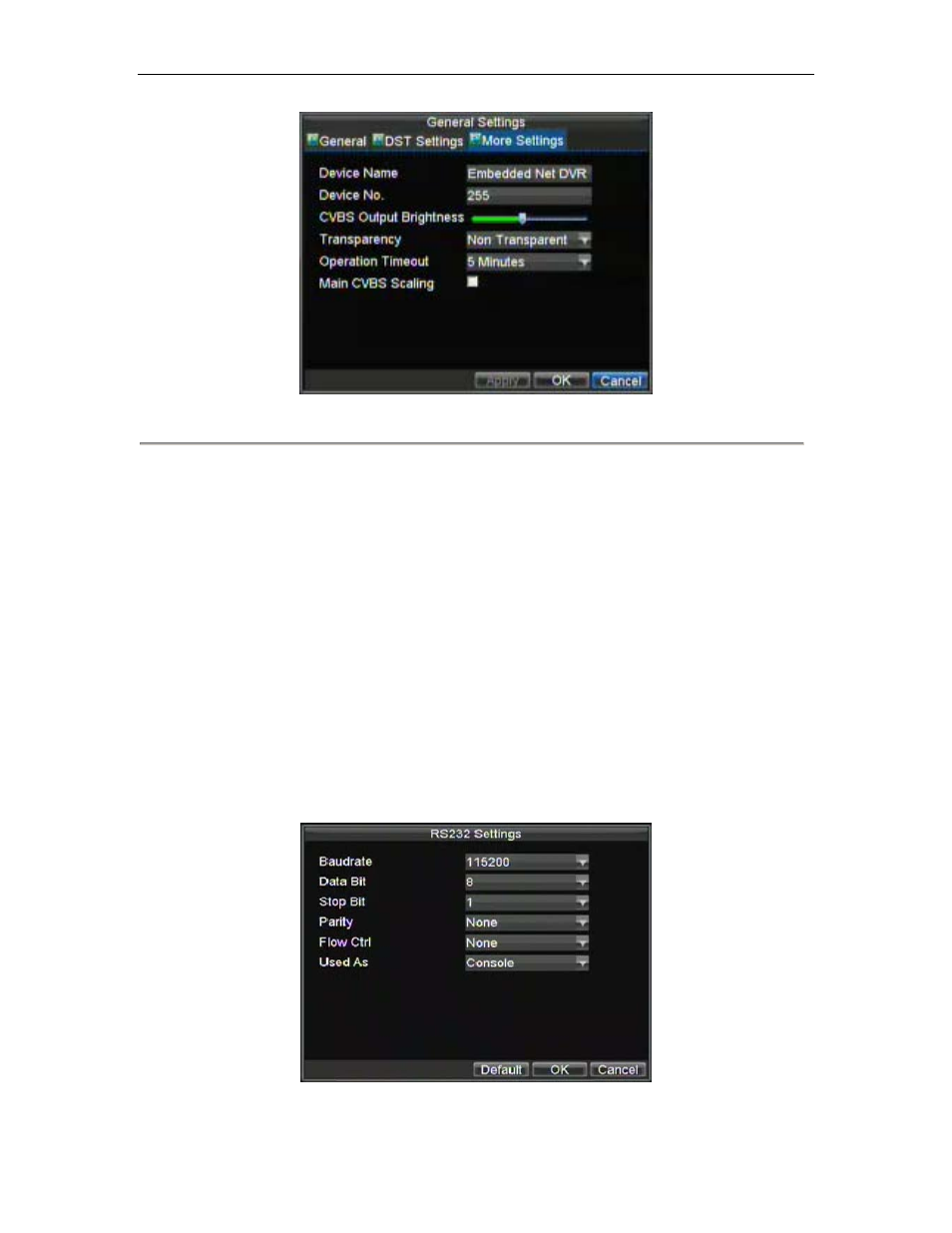

Figure 2. More Settings Menu
3.
Configure settings, including:
•
Device Name: Name to use for DVR.
•
Device No.: Device number to use for DVR.
•
CVBS Output Brightness: Video output brightness.
•
Transparency: Menu transparency.
•
Operation Timeout: Set timeout time for menu inactivity. For example, if timeout time was set to 5
minutes, after 5 minutes of inactivity in the General Settings menu, you’ll be returned to the Live
Preview.
•
Enable Output Hint: To display output status in preview.
•
CVBS Scaling: Enable/disable video output scaling for main/aux video output.
Configuring RS-232 Port Settings
To configure RS-232 devices to be used with the DVR:
1.
Enter the RS-232 Settings menu, shown in by clicking Menu > Setting > RS232.
Figure 3. RS-232 Settings Menu
