SVR-8000S User’s Manual
68

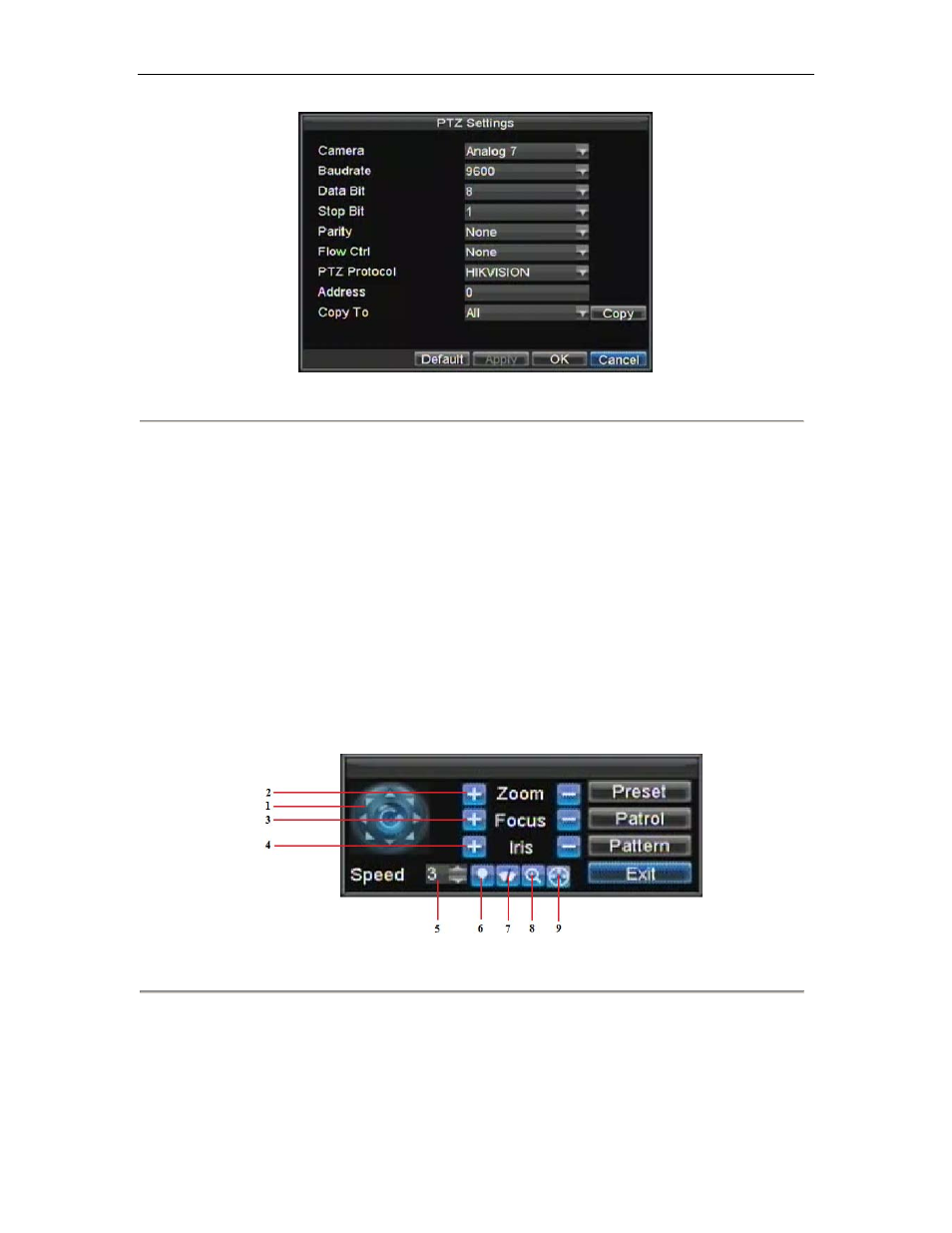

Figure 2. PTZ Settings Menu
2.
Select channel where PTZ camera is installed next to Camera label.
3.
Enter PTZ settings so it matches that of the PTZ camera.
4.
Click OK button to save and exit menu.
Setting PTZ Presets, Patrols & Patterns
Your DVR allows you to customize presets, patrols and patterns for a connected PTZ camera.
Understanding PTZ Controls
Before setting presets, patrols and patterns, it’s important to understand some of the features of the PTZ control panel,
shown in Figure 3.
Figure 3. PTZ Control Interface
The controls on the PTZ panel include:
1.
Directional Pad/Auto-scan Buttons: Controls the movements and directions of the PTZ. Center
button is also used to start auto-scan of PTZ.
2.
Zoom: Used to zoom in and out with the PTZ.
3.
Focus: Used to adjust the focus of the PTZ.
4.
Iris: Used to open up or close the iris of the PTZ.
