Detecting video loss – Bolide SVR8000s User Manual
Page 54
SVR-8000S User’s Manual
54

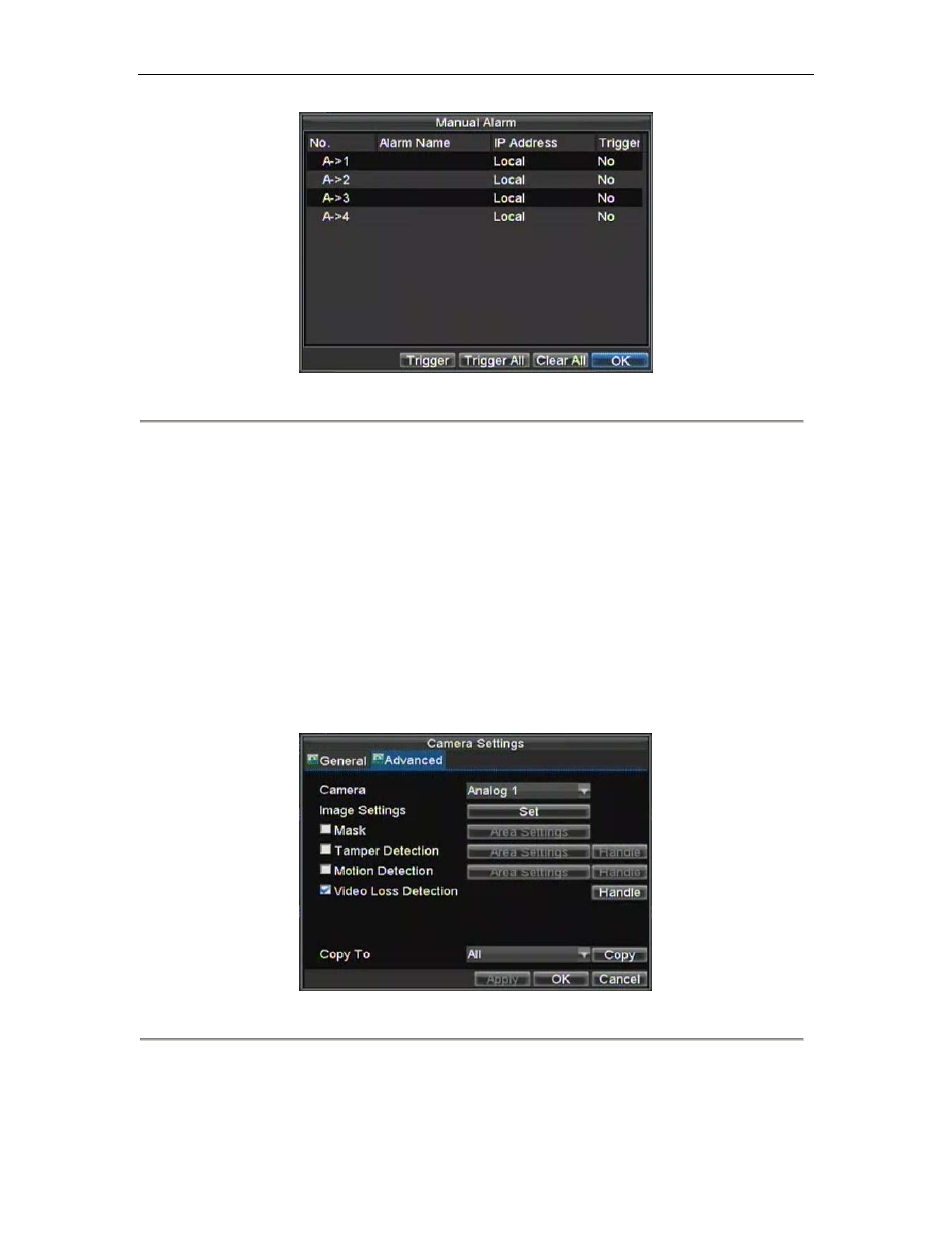

Figure 10. Manual Alarm Menu
2.
In the Manual Alarm menu, you may:
• Trigger: Select an alarm from the list and click Trigger to trigger its output.
• Trigger All: Trigger all alarm outputs at once.
• Clear All: Stop all alarm outputs at once.
3.
Select OK to return to the previous menu.
Detecting Video Loss
Your DVR can be setup to detect video loss and trigger an action. To setup video loss detection:
1.
Enter Camera Settings menu by clicking Menu > Setting > Camera.
2.
Select camera under Channel # to configure video loss detection for and click the Set button.
3.
Select the Advanced tab.
4.
Check the Video Loss Detection checkbox to enable feature, as shown in Figure 11.
Figure 11. Camera Settings Menu
5.
Click the Handle button to enter the Exception Handle menu, shown in Figure 12.
6.
Select the Handle tab to configure exceptions handling. Exception trigger options are further
explained in the next section (See Understanding Exception Trigger Options).
