SVR-8000S User’s Manual
55

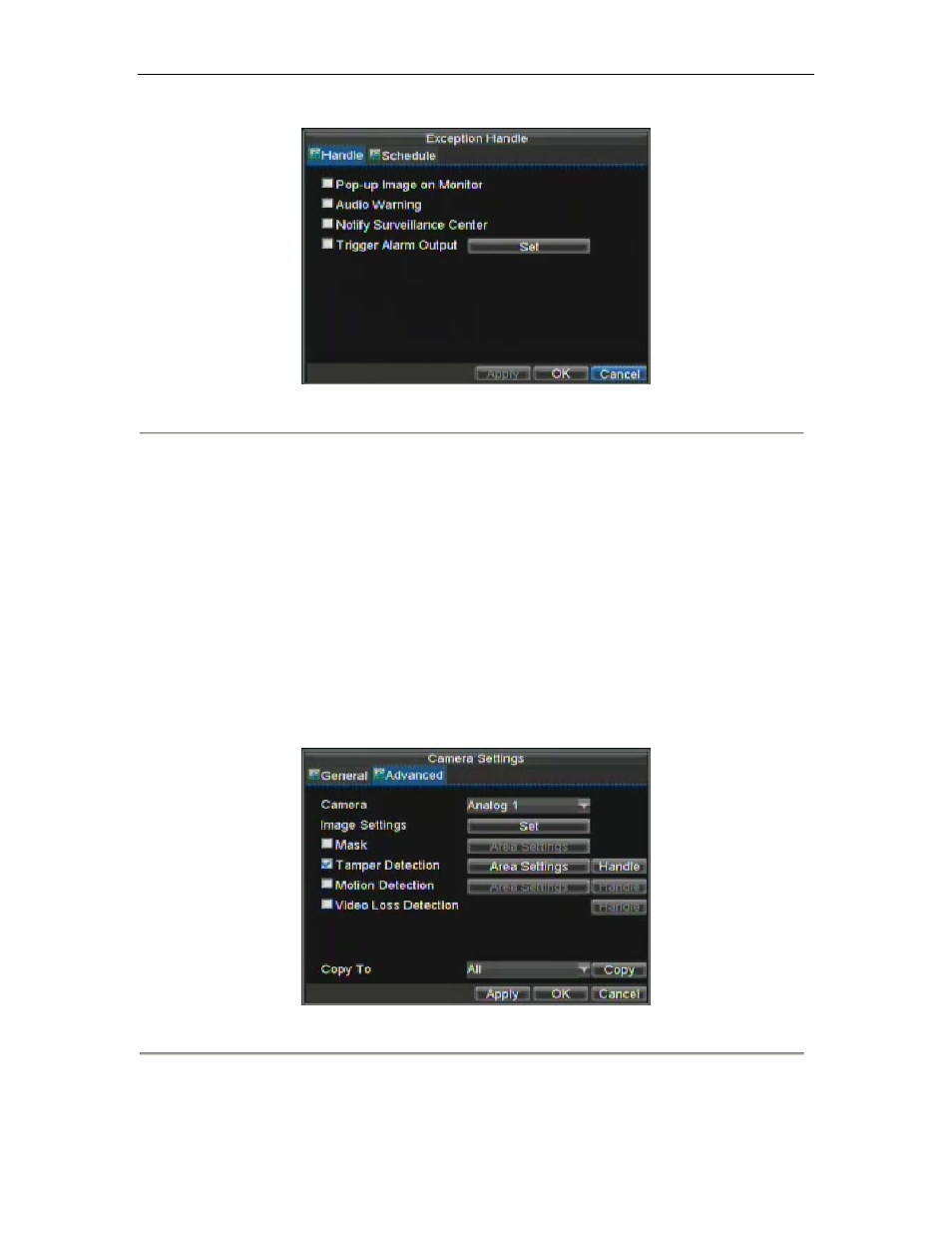

Figure 12. Exception Handle Menu
7.
Select the Schedule tab. Set the schedule of when you want video loss detection to be enabled.
Schedule can be set for all week or any day of the week with up to 8 time periods per day.
8.
Click the Apply button to finish.
9.
Repeat above for other channels.
Detecting Video Tampering
Video tampering (i.e. moving camera to a different position) can also be detected and set to trigger an action on your
DVR. To setup video tempering detection:
1.
Enter Camera Management/Settings menu by clicking Menu > Setting > Camera.
2.
Select camera under Channel # to configure video loss detection for and click the Set button.
3.
Select the Advanced tab.
4.
Check the Tamper Detection checkbox, as shown in Figure 13.
Figure 13. Camera Settings Menu
5.
Click the Area Settings button to enter the area setup.
6.
Setup tampering area, as shown in Figure 14. Only one tampering area can be set, with the full screen
