SVR-8000S User’s Manual
41

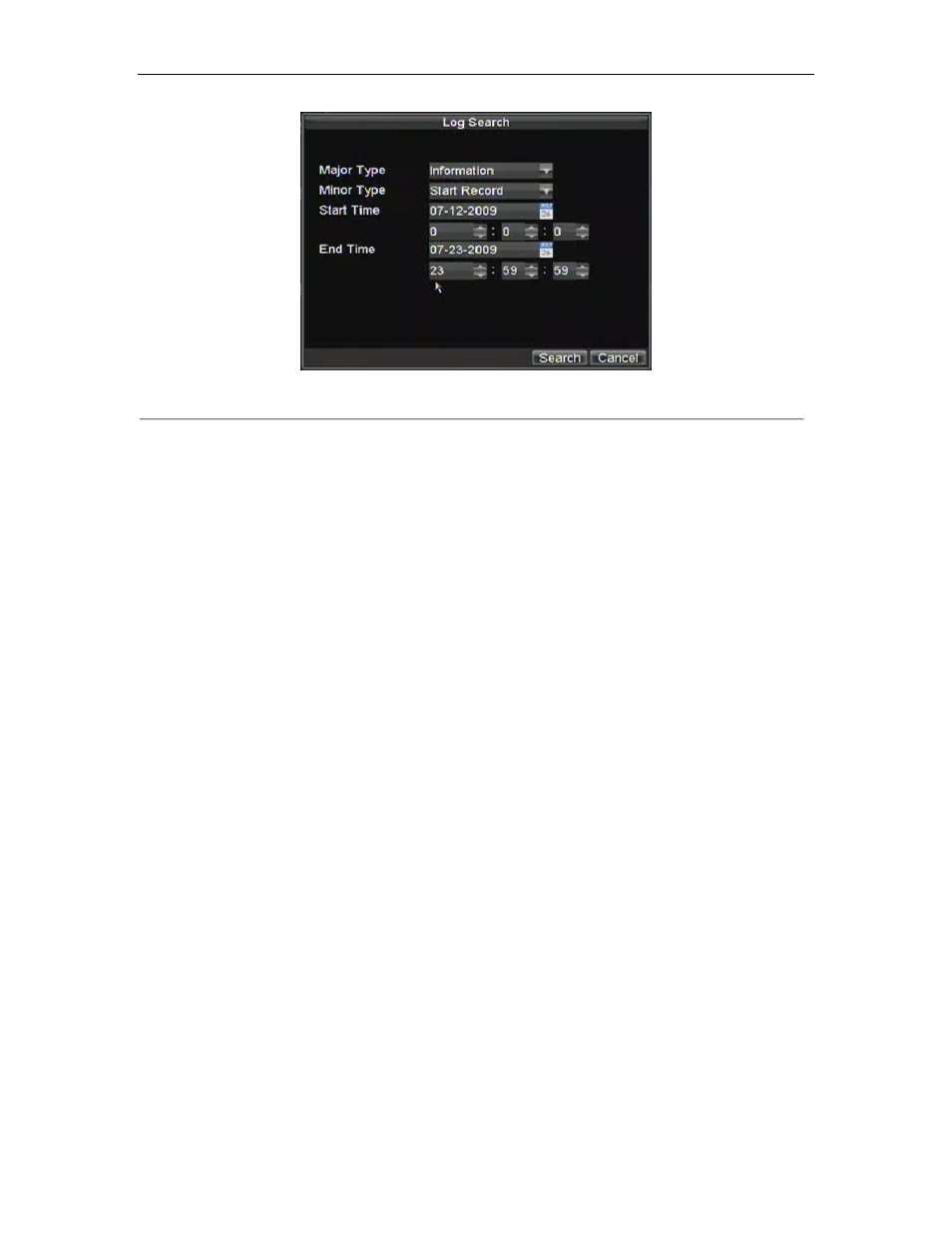

Figure 6. Log Search Menu
2. Set Major Type setting to Information.
3. Set Minor Type setting to Start Record or End Record.
4. Set Start Time and End Time.
5. Click the Search button.
6. A list of results with your search criteria will be returned. Select the video log to playback and click
Play.
7. The recording will begin to play in the Playback interface.
Playing Back Frame-by-Frame
To playback frame-by-frame in the Playback interface:
• Using a Mouse:
1. Click the Slow Forward button on the Playback Control Panel until the speed changes to Single
frame.
2. Click the Pause button to advance the video frame by frame.
• Using the Front Panel/Remote:
1. Rotate the inner control on Jog Shuttle counterclockwise or press the Down button to set the play to
Single frame.
2. Press the OK button.
3. Press the Enter button to advance the video frame by frame.
Using Digital Zoom
To use digital zoom in Playback mode:
1. Enter Digital Zoom mode by right-clicking with the mouse in Playback and selecting Zoom.
2. Left-Click and drag red box for desired magnification area, as shown in Figure 7. The selected area
will be zoomed to full screen.
