Avalon Firestyles High-Temperature Wood Insert Wiring Kit - Manual (Page 5)

High-Temperature Wood Insert Wiring Kit
97200337
Page 5 of 6 1/31/14 - 17601776 © Travis Industries, Inc.

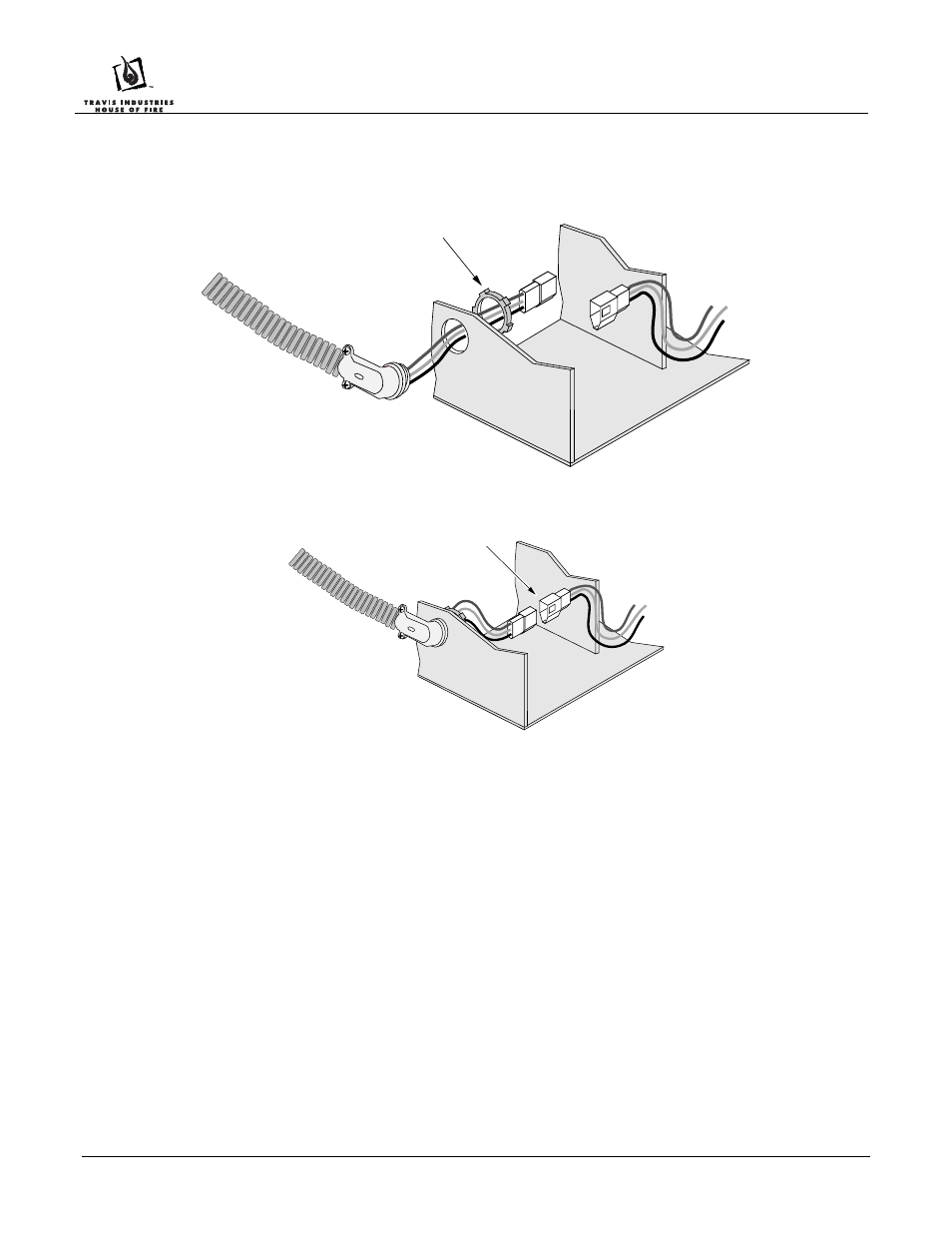

3 Secure the conduit to the side of the insert as shown below.
The strain relief is attached to the left side of
the fireplace insert. Insert the locknut over
the molex connector and screw it onto the
conduit connector.
Left Side of
Fireplace Insert.
4 Attach the molex connector from the conduit to the connector on the insert.
Attach the molex connector on the conduit to
the molex connector on the insert.
